Detailed Specifications

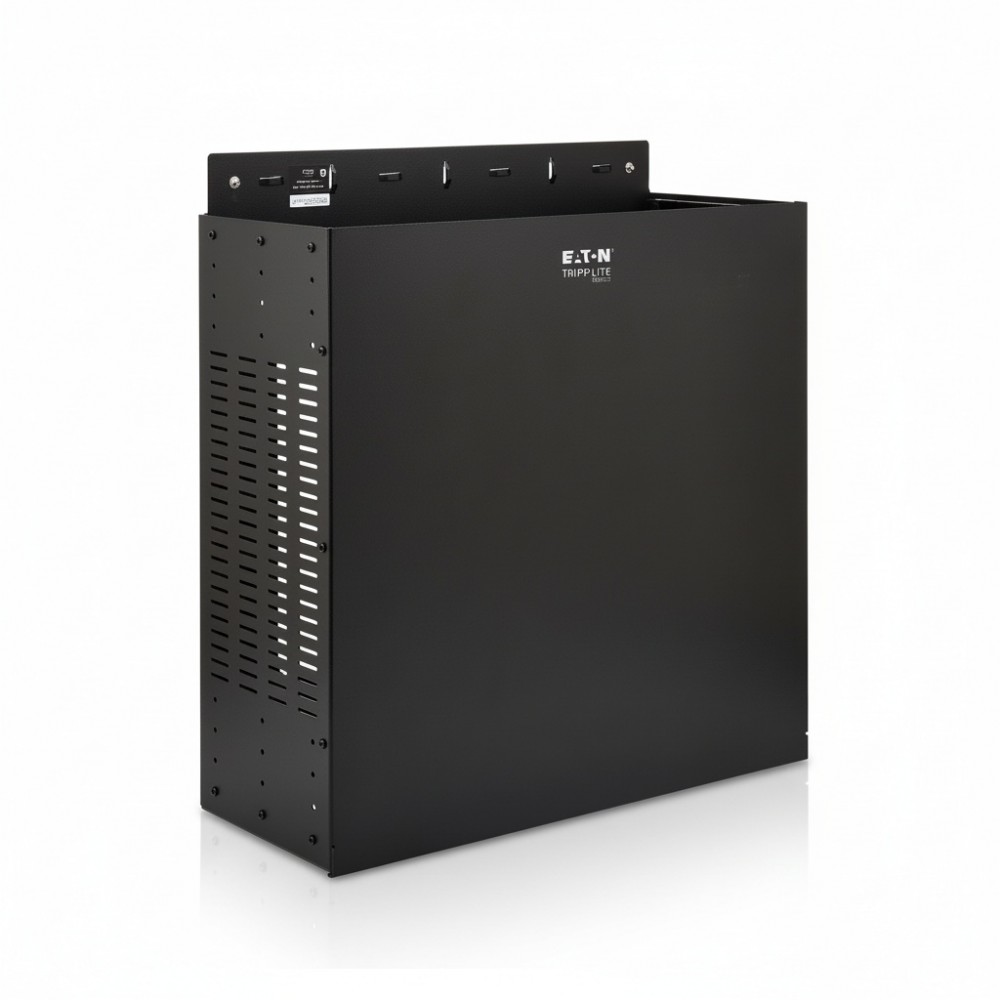

Eaton SRWO4UBRKT SmartRack 4U Wall-Mount Rack Enclosure
Overview
The Eaton SRWO4UBRKT is a 4U low-profile wall-mount rack enclosure designed for compact IT, networking, and edge infrastructure deployments. It provides secure housing for standard 19-inch rack equipment such as network switches, patch panels, routers, and small UPS systems in confined spaces like wiring closets, retail backrooms, classrooms, and branch office installations.
Built with a vented steel chassis, the enclosure supports passive airflow through side ventilation openings, helping maintain thermal stability for continuously operating network hardware. Its vertical wall-mount design keeps equipment close to the wall while preserving accessibility for cabling and maintenance.
The cabinet is pre-assembled (with minor front panel installation required) and mounts using keyhole slots aligned to standard 16-inch wall studs, simplifying installation in structured environments. It is commonly used for edge network consolidation where space efficiency and physical security are required.
This enclosure is not intended for full-depth server deployment or high-density compute environments. It is optimized for lightweight networking and AV infrastructure rather than heavy rack server loads or data center-scale equipment.
Key Features
- 4U rack capacity for compact edge network deployments
- Low-profile design extends under 8 inches from wall
- Vented steel enclosure supports passive cooling airflow
- 75 lb load capacity for network and AV equipment
- Wall-stud aligned mounting for fast structured installs
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRWO4UBRKT |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Capacity | 4U |
| Rack Standard | 19-inch |
| Maximum Load Capacity | 75 lb (34 kg) |
| Material | Cold-rolled steel |
| Ventilation | Side vented airflow design |
| Mount Type | Wall mount (keyhole slots, 16 in spacing) |
| Depth from Wall | < 8 in |
| Color | Black |
| Installation Type | Indoor structured cabling environments |
| Application | Switches, routers, patch panels, UPS |
