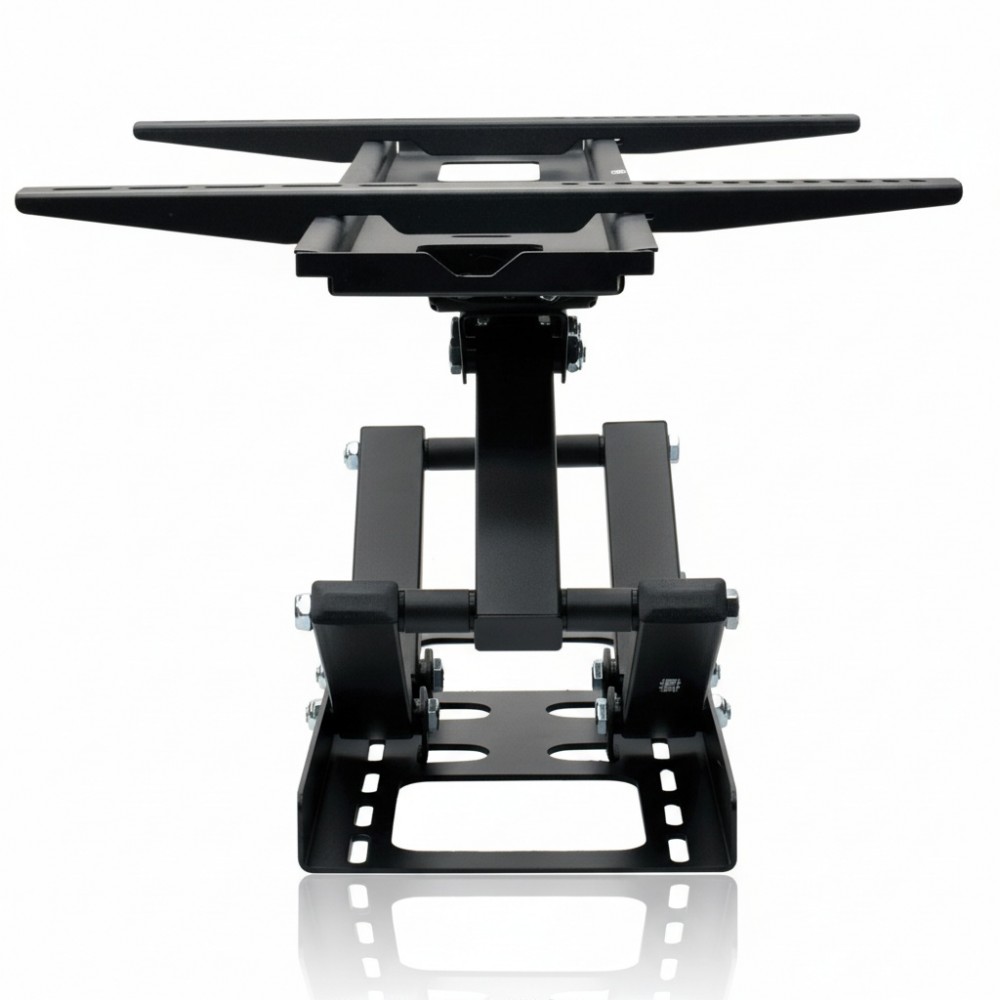

Eaton DWM3770X Full‑Motion Wall Mount 37–70″ VESA

Overview :

The Eaton DWM3770X is a full‑motion swivel and tilt wall mount engineered to secure large flat‑panel displays in fixed AV and IT environments. AV integrators, systems engineers, and facilities teams deploy this mount in conference rooms, control centers, digital signage zones, and collaboration spaces where display repositioning and ergonomic viewing flexibility are required. It addresses space constraints and fixed mounting limitations while maintaining structural stability.

Technically, this mount supports single flat‑panel displays from approximately 37″ to 70″ diagonal with a maximum load capacity of 165 lb (74.8 kg). Its articulating arm provides a wide range of motion including up to 120° swivel, −15°/+15° tilt, and −3°/+3° level adjustment, enabling precise alignment for optimal viewing angles.

In deployment, the DWM3770X is suited for fixed wall installations in structured AV infrastructures such as huddle spaces, corporate boardrooms, simulation suites, and public information displays. Its VESA‑compliant mounting interface accommodates multiple standard hole patterns, simplifying integration with diverse display models.

Integration into display ecosystems requires only standard VESA mounting hardware; no additional power or signal management systems are necessary. Mounting hardware, a built‑in bubble level, and a detailed installation template are included to streamline commissioning and ensure accurate alignment on drywall or solid substrates.

In a practical deployment, the DWM3770X can be used to mount a 65″ display in a training room where instructors need frequent repositioning to avoid glare and provide comfortable sightlines across seating zones. The swivel and tilt adjustments allow the display to be optimized for variable lighting conditions and audience orientation.

This mount should not be used for multi‑display video walls, curved display installations requiring non‑standard brackets, or environments where vibration isolation or seismic rating is mandated. It also does not provide integrated cable management or power distribution features typical of full AV racks.

Key Features

• Supports 37″–70″ flat panels up to 165 lb (75 kg)

• Articulated arm with 120° swivel motion

• Tilt adjustment from −15° to +15°

• Level adjustment ±3° for precision alignment

• VESA patterns up to 600×400 mm supported
