Detailed Specifications

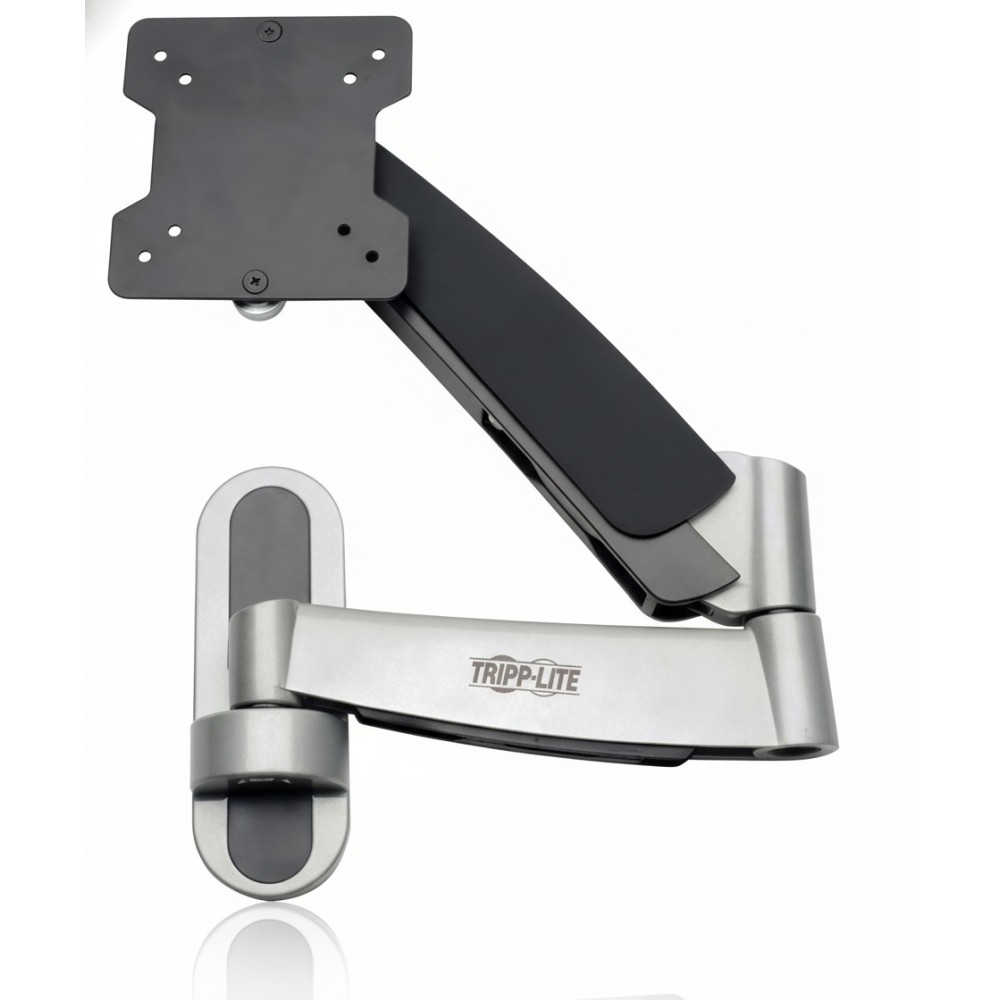

Eaton DWM1327SP - Swivel/Tilt Wall Mount for 13-27″ Displays
Overview
The Eaton DWM1327SP is a VESA-compatible swivel/tilt wall mount designed for flat-panel monitors and small TVs. It is used by infrastructure technicians and AV integrators to secure and position displays on vertical surfaces with adjustable viewing angles, solving space and ergonomics challenges in control rooms, meeting spaces, and operator stations. ([turn0search0][turn0search2])
This mount supports most flat-panel monitors and TVs sized 13″ to 27″ with a maximum weight of 33 lb (15 kg). It features a full-motion arm that provides 180° swivel, -15° to +15° tilt, and -2° to +2° level adjustment, allowing precise control of display orientation for improved visibility and reduced glare. ([turn0search0][turn0search2])
Designed for indoor IT and AV environments, DWM1327SP installs directly to wall studs or solid surfaces using supplied hardware. Its all-metal construction ensures structural integrity, and the mount conforms to VESA 75×75 and 100×100 mounting patterns, enabling broad compatibility with industry-standard displays. ([turn0search0][turn0search2])
Integration with display infrastructures is straightforward × this mount works with common LCD/LED panels and integrates into environments such as network operations centers, executive briefing areas, or office huddle spaces where wall-mounted displays save desk or rack space. The one-touch adjustment feature simplifies angle changes after installation. ([turn0search5])
In practical deployments, DWM1327SP is suited for single-display installations requiring flexible viewing adjustments and secure mounting. It is not intended for displays outside the specified size/weight limits or for dynamic digital signage requiring motorized adjustments or remote control. This solution does not provide cable management channels or act as part of structured cabling systems. ([turn0search0][turn0search2])
Key Features
- Swivel/tilt wall mount for 13-27″ flat panels and monitors
- Supports up to 33 lb (15 kg) with full-motion adjustment
- 180° swivel, -15° to +15° tilt, ±2° level adjust
- VESA 75×75 & 100×100 compatible mounting patterns
- All-metal construction with included hardware
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | DWM1327SP |
| Product Type | Swivel/Tilt Wall Mount for Flat-Panel Displays |
| Supported Display Size | 13″ to 27″ |
| Maximum Load Capacity | 33 lb (15 kg) |
| VESA Mount Patterns | 75×75 mm, 100×100 mm |
| Swivel Range | 180° |
| Tilt Range | -15° to +15° |
| Level Adjustment | -2° to +2° |
| Material | Steel |
| Mounting Location | Wall |
| Installation Hardware | Included |
| Color | Black (some variants silver) |
| Product Dimensions (Approx.) | 22.83 in × 7.48 in × 5.2 in (580 × 190 × 132 mm) |
| Product Weight (Approx.) | ~5.9 lb (2.68 kg) |
| Warranty | 5-year limited warranty |
| Compliance | RoHS, REACH |
