Detailed Specifications

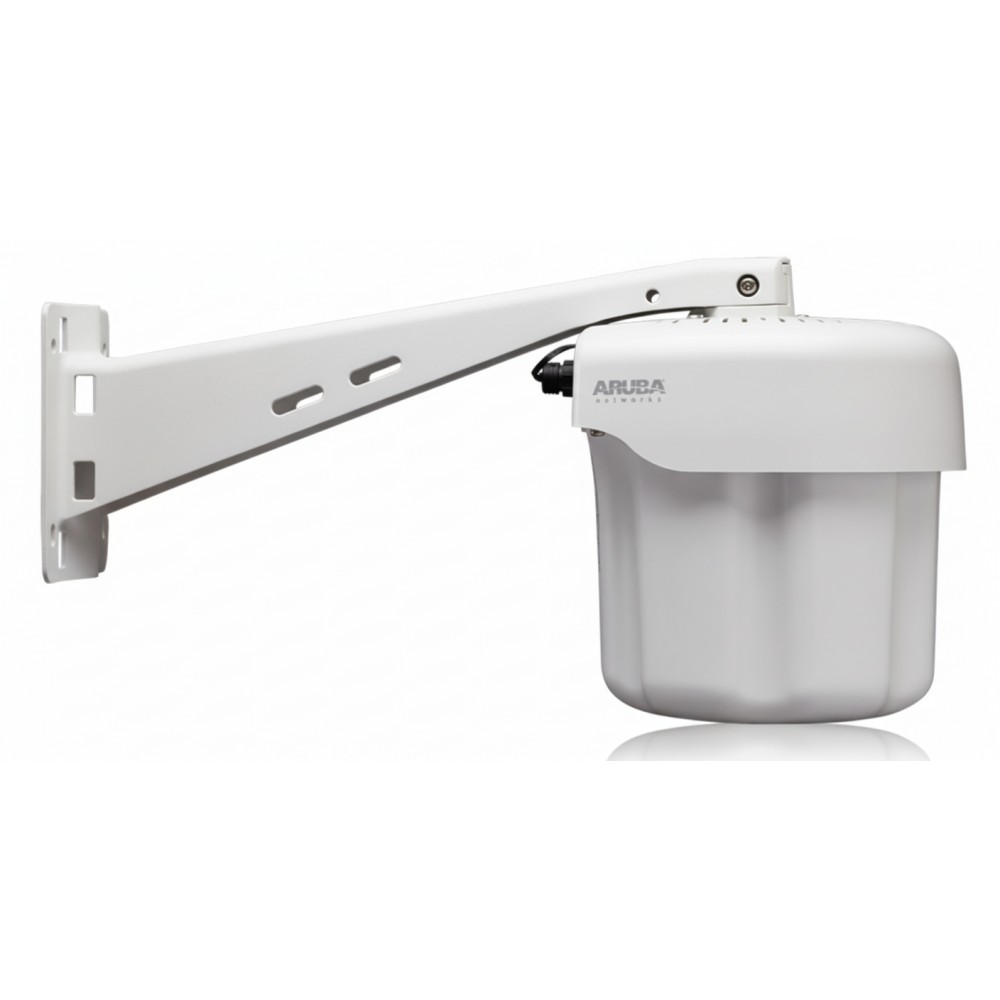

HPE Aruba AP-270-MNT-V1 – Outdoor Pole/Wall Long Mount Kit
Overview :
The AP‑270‑MNT‑V1 from HPE Aruba is a dedicated mounting kit designed for the 270 series outdoor access points, enabling secure wall or pole installation at a fixed offset. It supports pole or wall mounting of APs in demanding outdoor environments and positions the access point approximately 300 mm away from the vertical mounting asset, reducing signal shadow from structural elements. The bracket suits deployments on exterior walls, light poles or building facades in campus, municipal, or industrial outdoor WLAN installations. The mount integrates into outdoor AP installation workflows and is compatible with the 270 series APs, enabling standardised mounting across a large-scale outdoor Wi‑Fi rollout.
Key Features :
Positions the AP ~300 mm from vertical mount surface
Suitable for both wall and pole mounting applications
Metal bracket arm designed for outdoor weather‑rated deployments
Compatible specifically with Aruba 270 series outdoor APs
Includes mounting hardware: screws, cable tie and hose clamps
Specification :
| Specification | Detail |
|---|
| Brand | HPE Aruba |
| Part Number | AP-270-MNT-V1 |
| Product Type | Outdoor Pole/Wall Long Mount Kit |
| Offset Distance | ~300 mm (≈11.8 in) from mounting surface |
| Compatible Devices | Aruba 270 series outdoor access points |
| Mounting Orientation | Wall or vertical pole mounting via hose clamps |
| Kit Contents | Bracket, 2 M6×20 screws, 1 cable tie, 2 hose clamps |
| Weight | 10 lbs (≈4.54 kg) |
| Dimensions | 28 × 12 × 6 in (≈711 × 305 × 152 mm) |
| Warranty | 1‑year bring‑in spare part support |
| Mounting Hardware | Hose‑clamp bands for pole, anchor bolts for wall (not included) |
| Deployment Use‑case | Outdoor WiFi installations requiring clearance from pole or wall obstructions |
