Detailed Specifications
HPE Aruba AP-270-MNT-V2 – Mount Kit for AP‑270 Series (Pole/Wall)
Overview :

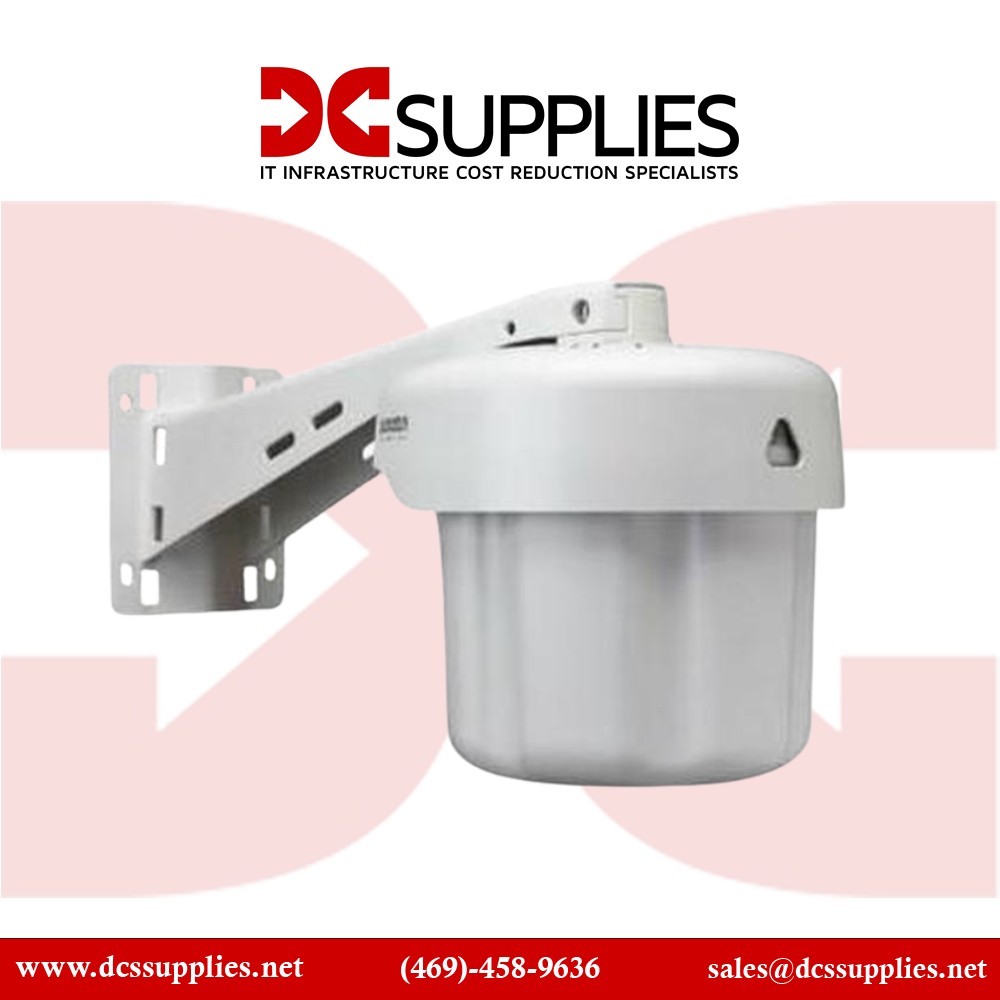

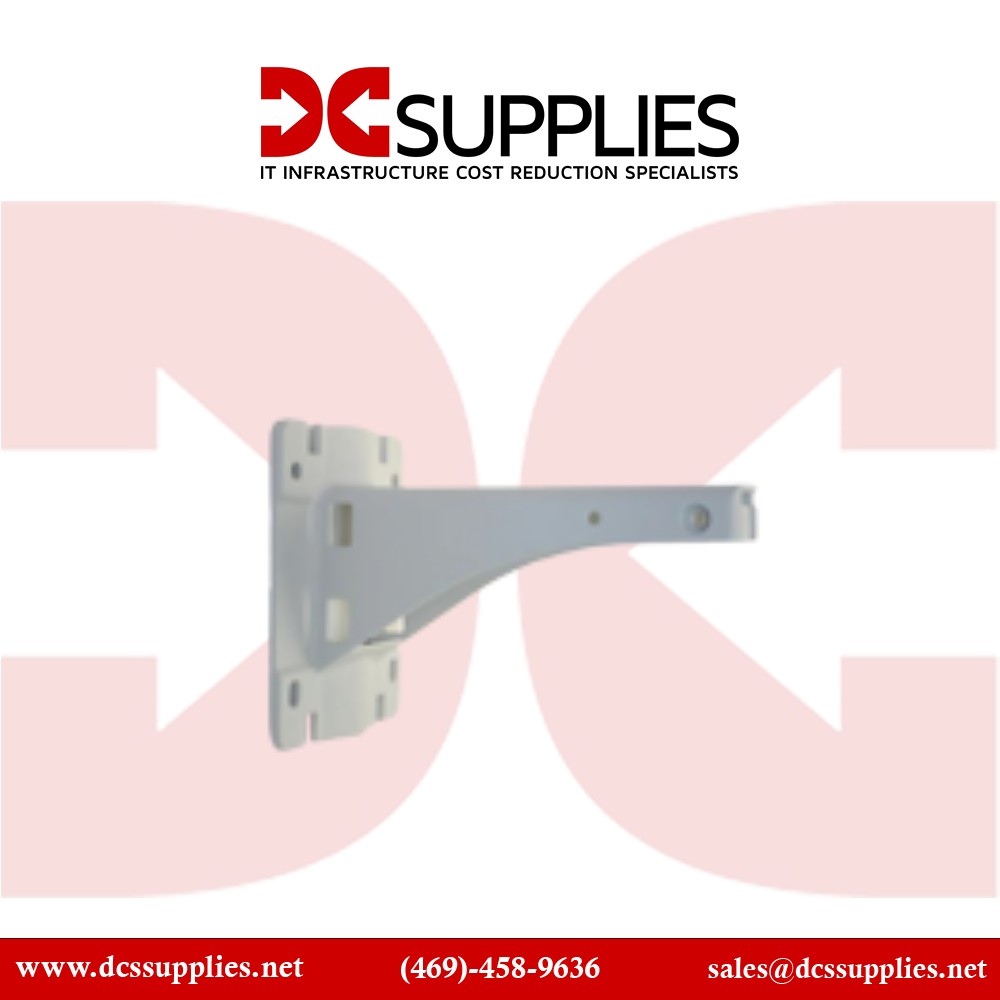

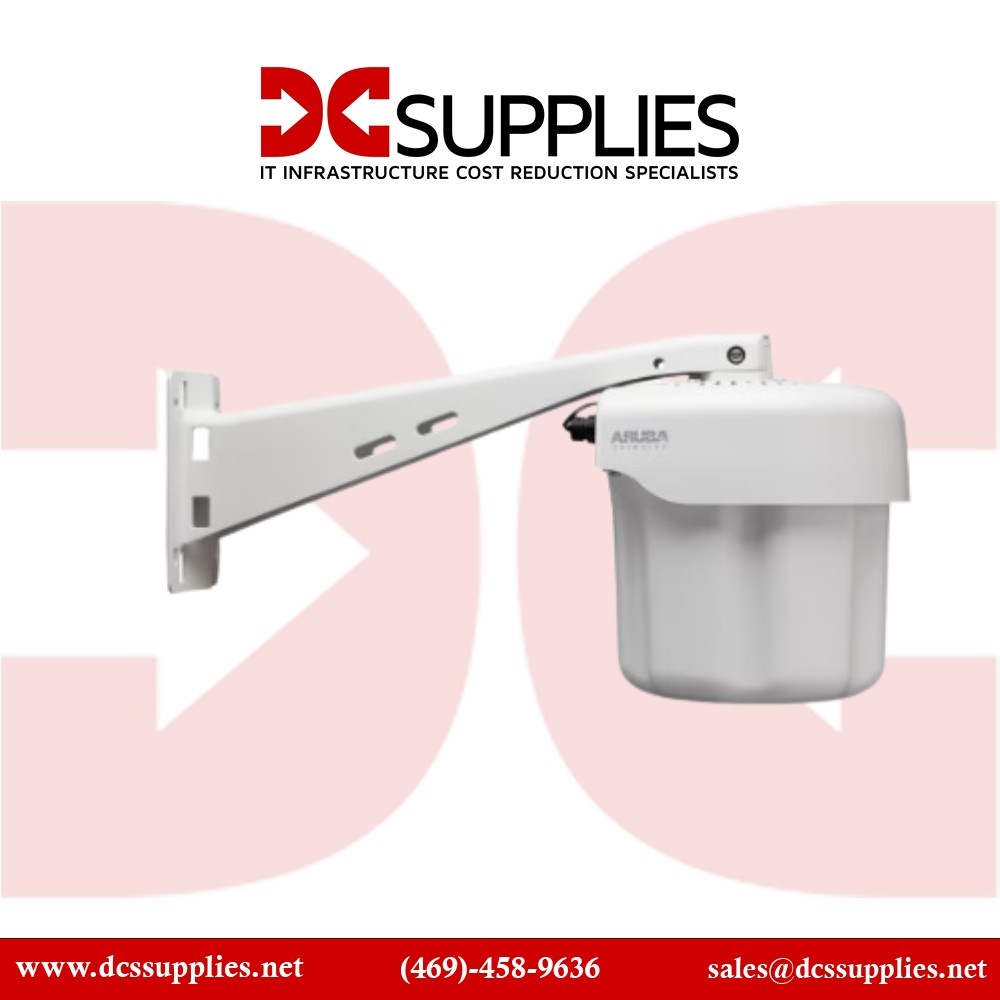

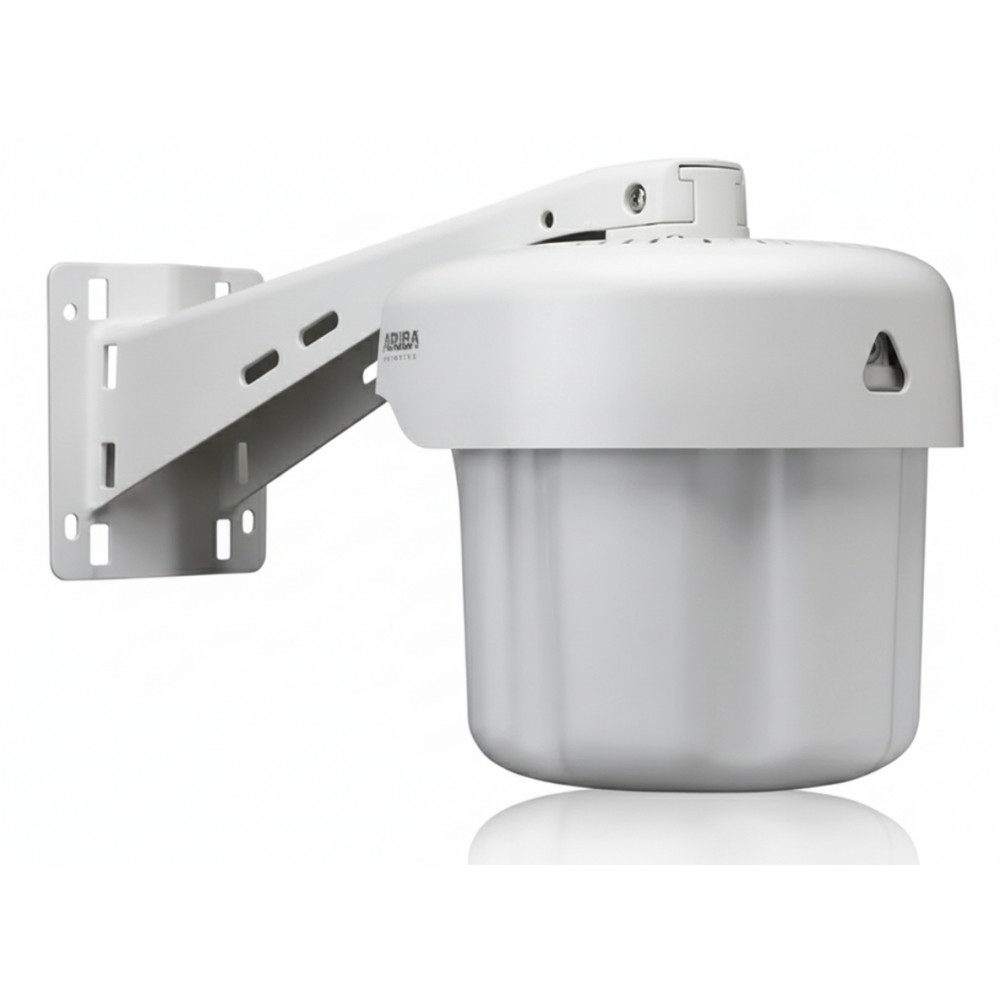

The HPE Aruba AP-270-MNT-V2 is a dedicated mounting kit designed for use with the Aruba 270 Series outdoor access points, enabling secure wall or pole installation for enterprise‑grade deployments. This kit includes a mounting bracket, two M6 × 20 screws, a 60 cm cable tie and two hose clamps, allowing attachment to a vertical pole (100–150 mm diameter) or surface mounting on a wall or corner with compatible adapter. The short‑arm design holds the AP approximately 75 mm from the mounting surface and is suited for outdoor coverage in campus, edge or building‑perimeter environments. It supports integration with the AP’s grounding, cabling and protection provisions, and is optimized for the rugged outdoor wireless gear such as the AP‑270 Series of access points.
Key Features :
Short arm mount positions AP ~75 mm from wall surface
Supports pole mounting with included dual hose‑clamps
Includes bracket, screws, cable tie and installation template
Compatible with Samsung corner‑mount adapter for corner installations
Supports AP‑270 Series outdoor access points on pole or wall
Specification :
| Specification | Detail |
|---|
| Brand | HPE Aruba |
| Part Number | AP-270-MNT-V2 |
| Product Type | Short Mount Kit for AP‑270 Series (Pole/Wall) |
| Compatibility | Aruba 270 Series outdoor APs |
| Distance from mounting surface | Approximately 75 mm (3.0 in) |
| Support Pole Diameter | 100–150 mm (4.0–6.0 in) |
| Bracket Dimensions | 140 mm × 170 mm (5.51 in × 6.69 in) |
| Additional Dimensions | 114 mm (4.49 in) / 116 mm (4.57 in) / 5 mm (0.197 in) / 9.5 mm (0.374 in) slots |
| Weight | 2 lbs shipping approx, 0.93 kg package |
| Colour | White (off‑white finish) |
| Warranty | 12‑month limited warranty (EU version) |
| Kit Contents | Bracket, 2 M6×20 screws, 1 60 cm cable tie, 2 6‑inch hose clamps |
| Use Case | Wall, pole or corner mounting of Aruba 270 Series outdoor access points |
| Mounting Surface | Vertical pole or flat wall with anchor bolts (not included) |
