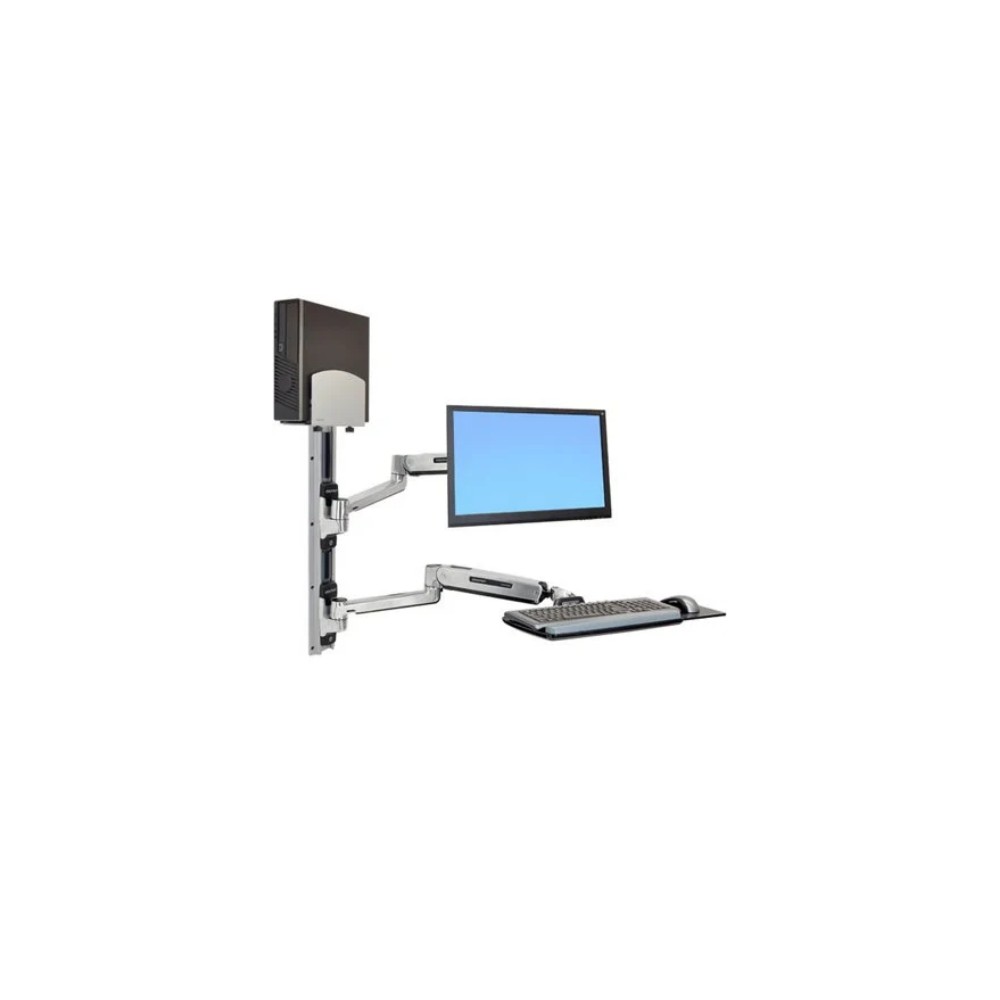

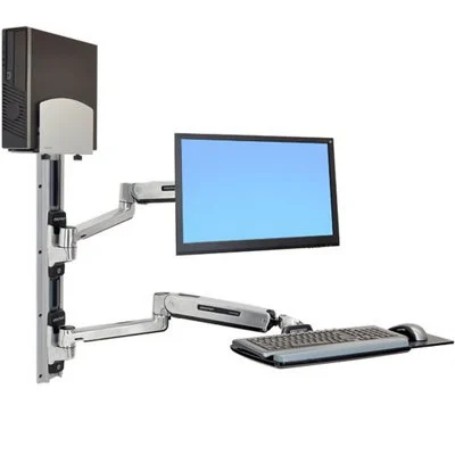

Ergotron 45-358-026 – LX Sit-Stand Wall Mount Workstation with Medium CPU Holder
Overview
The Ergotron 45-358-026 LX Sit-Stand Wall Mount System is a complete wall-mounted workstation designed to support a monitor, keyboard and desktop computer in a space-efficient configuration. Its adjustable monitor arm and keyboard arm allow users to reposition their equipment for sitting or standing work.
The system includes a medium CPU holder, two Wall Tracks, cable-management channels and mounting hardware. Its polished aluminum finish and silver CPU holder provide a consistent appearance for professional workstations, healthcare environments and other space-conscious installations.
Technical Information
The monitor arm supports displays weighing 7–25 lb (3.2–11.3 kg), with a typical maximum screen size of 42 inches. It provides 20 inches of height adjustment, extends the monitor up to 33 inches from its mounting point and supports monitor tilt, pan and rotation.
The keyboard arm extends up to 42 inches and supports a keyboard load of up to 5 lb (2.2 kg). The included medium CPU holder supports computers weighing up to 40 lb (18 kg). The monitor arm uses Constant Force motion technology, while locking connections help secure the arm, extension and mounting base.
Compatibility
The monitor mount supports VESA MIS-D patterns of 75 × 75 mm and 100 × 100 mm, MIS-E at 200 × 100 mm, and MIS-F at 200 × 200 mm. An optional Ergotron VESA adapter kit is required for supported larger MIS-F patterns such as 400 × 200 mm, 400 × 300 mm or 400 × 400 mm.
The medium CPU holder accommodates computers approximately 3⅜–8 inches (9–20 cm) wide. The included spacer allows compatible narrower computers down to approximately 2 inches (5 cm) wide. Confirm the computer's dimensions, weight and cable lengths before installation.
Key Features
- Wall-mounted sit-stand workstation with separate monitor and keyboard arms.
- 20 inches of monitor height adjustment and up to 33 inches of monitor extension.
- Keyboard arm extends up to 42 inches, with an ergonomic back-tilt keyboard tray.
- Medium CPU holder supports computers weighing up to 40 lb (18 kg).
- Includes 10-inch and 34-inch Wall Tracks, cable channels, track covers and wall-mounting hardware.
Applications
Suitable for healthcare documentation stations, professional offices, clinical work areas and other environments that require an adjustable wall-mounted computer workstation with integrated keyboard and CPU support.
DC Supplies Product Note
Verify the exact MPN before ordering. Ergotron 45-358-026 is the polished aluminum LX Sit-Stand Wall Mount System with a medium CPU holder and silver CPU-holder finish. It is not the related 45-359-026 system with a small CPU holder. Installation requires a structurally suitable wall and the appropriate mounting method.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Manufacturer Part Number | 45-358-026 |
| Product Family | LX |
| Product Type | Sit-stand wall-mount workstation system |
| Finish | Polished aluminum |
| CPU Holder | Medium, silver |
| Monitor Capacity | 7–25 lb (3.2–11.3 kg) |
| Typical Maximum Display Size | 42 inches, subject to weight limits |
| Monitor Height Adjustment | 20 inches (51 cm) |
| Maximum Monitor Extension | 33 inches (84 cm) |
| Monitor Tilt | 70° upward and 5° downward |
| Monitor Pan | 360° |
| Monitor Rotation | 360° |
| Keyboard Load Capacity | 5 lb (2.2 kg) |
| Maximum Keyboard Extension | 42 inches (107 cm) |
| CPU Holder Capacity | 40 lb (18 kg) |
| CPU Width Range | 3⅜–8 inches (9–20 cm); narrower computers down to approximately 2 inches (5 cm) with the included spacer |
| VESA Compatibility | MIS-D 75 × 75 and 100 × 100 mm; MIS-E 200 × 100 mm; MIS-F 200 × 200 mm |
| Wall Tracks | 10-inch and 34-inch tracks |
| Cable Management | Two 10-inch cable channels and two black track covers |
| Included Components | Monitor arm, keyboard arm, wrist rest, mouse holder, medium CPU holder, Wall Tracks, track covers, cable channels and mounting kits |
| Product Weight | 39 lb (17.8 kg) |
| Shipping Dimensions | 36.4 × 22.3 × 6.8 inches |
| Warranty | 10 years |
FAQs
What is included with Ergotron 45-358-026?
The system includes the monitor arm, keyboard arm, wrist rest, mouse holder, medium CPU holder, two Wall Tracks, track covers, cable channels and mounting kits for hollow-wall and wall-stud installations.
What monitor weight does this system support?
The monitor arm supports displays weighing 7–25 lb (3.2–11.3 kg). Monitor depth may affect the supported weight, so confirm compatibility before installation.
How far can the monitor and keyboard extend?
The monitor extends up to 33 inches (84 cm), while the keyboard arm extends up to 42 inches (107 cm).
What computer sizes fit the medium CPU holder?
The holder accommodates computer widths of approximately 3⅜–8 inches (9–20 cm). The included spacer supports compatible computers as narrow as approximately 2 inches (5 cm).
Does the system include wall-mounting hardware?
Yes. The package includes mounting kits for hollow-wall and wall-stud installations. The wall structure must still be suitable for the combined load and the selected installation method.
