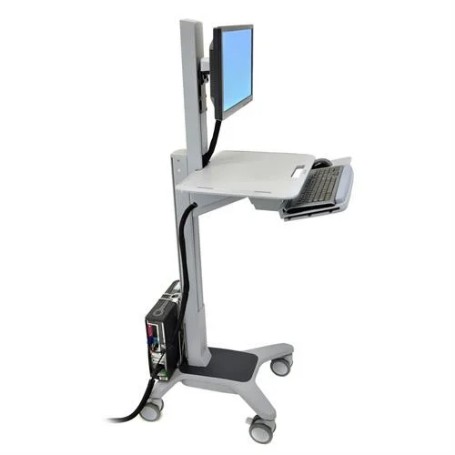

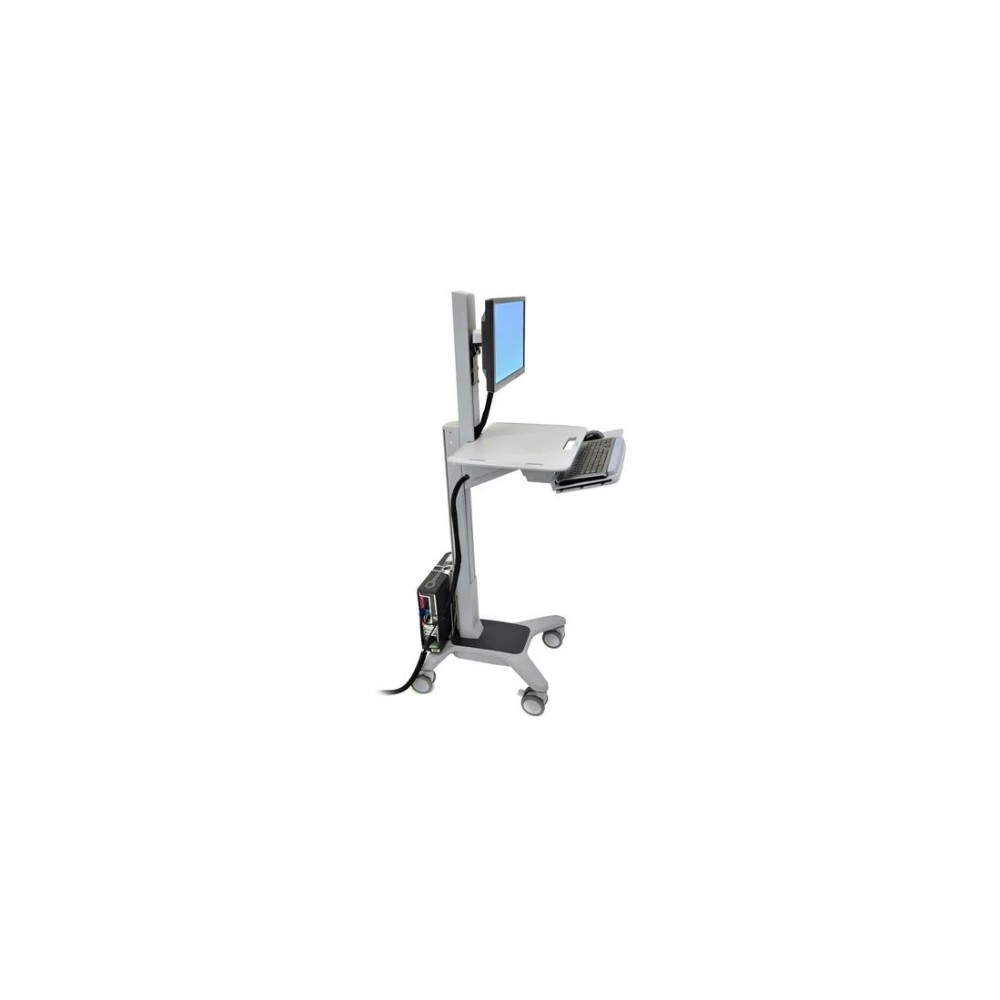

Ergotron 24-198-055 – WorkFit-C Single LCD Sit-Stand Workstation Cart
Overview
The Ergotron 24-198-055 WorkFit-C is a mobile, light-duty sit-stand workstation designed for a single LCD monitor. Its integrated worksurface, keyboard tray and mobile cart base provide a flexible workstation for environments where users need to alternate between sitting and standing.
The two-tone grey configuration combines an adjustable monitor pivot with an integrated CPU holder, cable storage and dual-wheel casters. The workstation uses Ergotron Constant Force technology for smooth monitor and worksurface positioning.
Technical Information
The monitor pivot supports displays weighing 5–18 lb (2.3–8.1 kg). The height-adjustment assembly has a published maximum load of 27 lb (12.3 kg), including the monitor and items carried on the worksurface and in the cable storage box.
The LCD and worksurface adjust together through a 20-inch range, with an additional 5 inches of independent monitor adjustment. The total maximum LCD height adjustment is 25 inches. The monitor mount supports VESA MIS-D 75 × 75 mm and 100 × 100 mm patterns.
Compatibility
This model is designed for one compatible LCD monitor using a VESA 75 × 75 mm or 100 × 100 mm mounting pattern. The monitor must fall within the specified pivot weight range and the total assembly must remain within the workstation's load limits.
The integrated CPU holder accommodates compatible computer systems within its published size range. Verify the dimensions and weight of the monitor and computer before deployment.
Key Features
- Mobile sit-stand workstation for a single LCD monitor.
- Monitor pivot capacity of 5–18 lb (2.3–8.1 kg).
- Up to 25 inches of maximum monitor height adjustment.
- Integrated worksurface, keyboard tray and left/right sliding mouse tray.
- Four dual-wheel casters, including two locking casters, for mobility and positioning.
Applications
Suitable for office workstations, shared work areas, healthcare support environments and other professional settings that require a mobile, height-adjustable computer workstation.
DC Supplies Product Note
Confirm the exact model number before ordering. The 24-198-055 is the light-duty, single-monitor WorkFit-C configuration in two-tone grey. It is distinct from the heavy-duty, dual-monitor and laptop-and-monitor variants in the WorkFit-C family.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Manufacturer Part Number | 24-198-055 |
| Product Family | WorkFit-C |
| Product Type | Mobile sit-stand workstation cart |
| Configuration | Single LCD monitor, light duty |
| Color | Two-tone grey |
| Typical Maximum Display Size | 22 inches |
| Monitor Pivot Capacity | 5–18 lb (2.3–8.1 kg) |
| Maximum Height-Adjustment Assembly Load | 27 lb (12.3 kg), including monitor and carried contents |
| Tandem Height Adjustment | 20 inches (51 cm) |
| Independent Monitor Adjustment | 5 inches (13 cm) |
| Maximum LCD Height Adjustment | 25 inches (63 cm) |
| Monitor Tilt | 25° |
| Monitor Rotation | 360° portrait-to-landscape rotation |
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
| Worksurface Dimensions | 22 × 17 inches |
| Base Footprint | 17 × 20.5 inches |
| CPU Holder Capacity | 40 lb (18 kg) |
| Casters | Four dual-wheel casters; two locking |
| Included Components | Cart, LCD pivot, integrated worksurface, keyboard tray with left/right mouse tray, wrist rest, mouse holder, cable storage box and CPU holder |
| Shipping Dimensions | 45.5 × 19.75 × 24 inches |
| Warranty | 5 years |
FAQs
How many monitors does the WorkFit-C 24-198-055 support?
This configuration is designed for one LCD monitor.
What is the monitor weight capacity?
The monitor pivot supports displays weighing 5–18 lb (2.3–8.1 kg). The complete height-adjustment assembly has a separate maximum load rating of 27 lb (12.3 kg), including the monitor and carried contents.
Does this workstation support VESA mounting?
Yes. It supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm.
Is the workstation mobile?
Yes. It has four dual-wheel casters, including two locking casters, to support movement and positioning.
What warranty applies to this model?
Manufacturer product documentation lists a five-year warranty.
