Overview

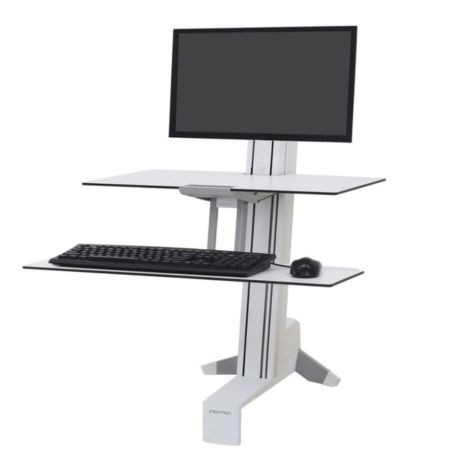

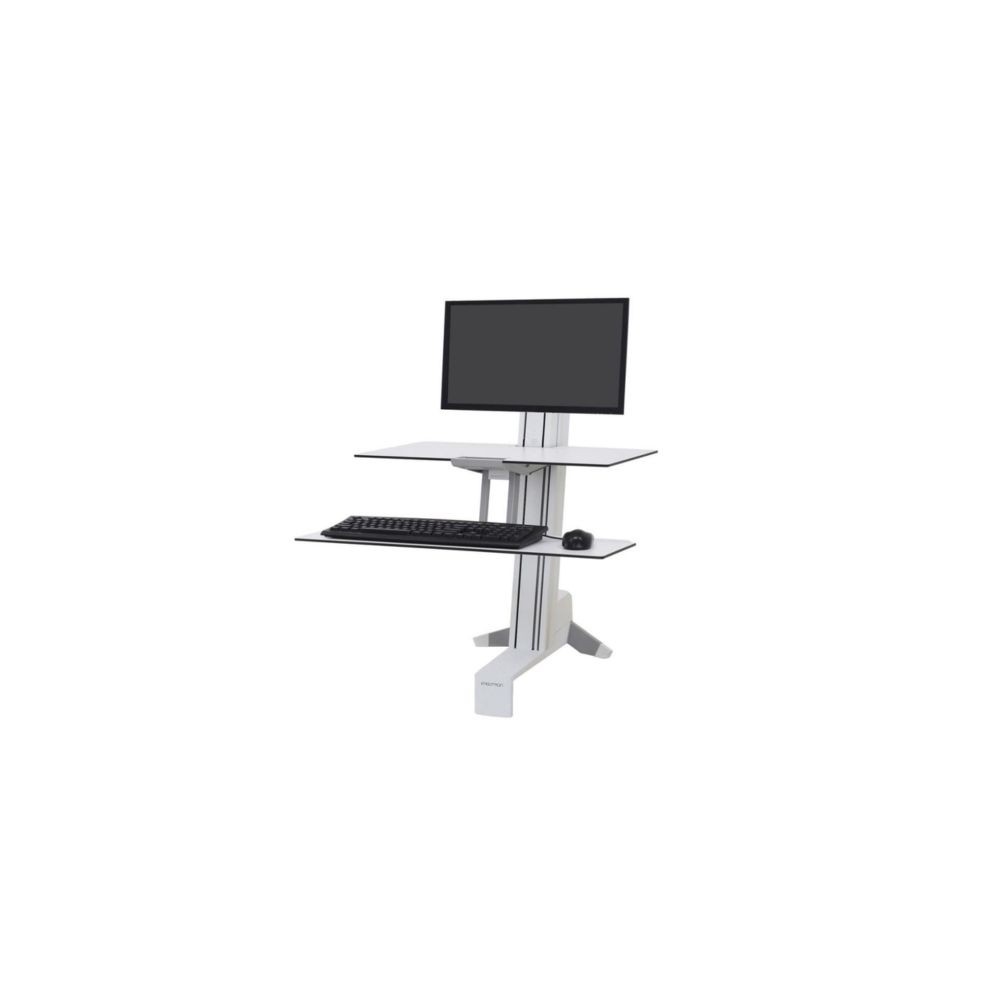

The Ergotron 33-350-211 WorkFit-S Single LD with Worksurface+ is a white sit-stand desktop workstation designed for one light-duty display. It clamps to the front edge of a desk or other suitable surface and combines an adjustable monitor position with a large keyboard tray and integrated worksurface.
Height Adjustment
The WorkFit-S uses Ergotron Constant Force technology to provide smooth height adjustment. The LCD and keyboard tray move together through 18 inches (46 cm), while the LCD can be adjusted independently by approximately 4.8 inches (12.2 cm). With the worksurface installed, the maximum LCD height adjustment is 22.8 inches (58 cm).
Monitor Support
The 33-350-211 is the light-duty single-monitor configuration and supports displays in the 6–16 lb (2.7–7.3 kg) range. Ergotron specifies a typical display size of up to 24 inches. The LCD pivot supports 30° tilt and 360° rotation.
Worksurface and Keyboard Tray
The integrated worksurface provides an additional area for task-related items and supports up to 5 lb (2.3 kg). The large keyboard tray measures approximately 27 inches wide by 9 inches deep and supports up to 5 lb (2.3 kg). The tray adjusts through 18 inches (46 cm) and tilts backward by 5°.
Desk Mounting
The workstation clamps to the front edge of a suitable work surface from 0.47 to 2.4 inches (1.2–6 cm) thick. Because the workstation transfers the mounted equipment load to the desk surface, the mounting surface should be structurally suitable for the installed equipment.
Key Features
- Single-monitor light-duty WorkFit-S configuration
- 22.8-inch (58 cm) maximum LCD height adjustment with worksurface
- Integrated worksurface with up to 5 lb capacity
- Large 27 x 9-inch keyboard tray with 5° back tilt
- Constant Force height adjustment for the display and keyboard
Applications
The WorkFit-S Single LD is designed to convert a conventional desktop into a sit-stand computer workstation. Its front-edge clamp, adjustable display, worksurface, and large keyboard tray provide a combined workstation configuration without replacing the existing desk.
DC Supplies Product Note
The exact 33-350-211 is the Single LD with Worksurface+ configuration. It is intended for light-duty displays; the separate 33-351-211 WorkFit-S Single HD with Worksurface+ is the heavier-display configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 33-350-211 |
| Product Type | WorkFit-S Single LD with Worksurface+ |
| Product Family | WorkFit-S |
| Color | White |
| Display Configuration | Single monitor |
| Typical Display Size | Up to 24 inches |
| Display Weight Capacity | 6–16 lb (2.7–7.3 kg) |
| Maximum Total Load | 18 lb (8.2 kg) |
| LCD/Keyboard Tandem Adjustment | 18 inches (46 cm) |
| Independent LCD Adjustment | 4.8 inches (12.2 cm) |
| Maximum LCD Height Adjustment | 22.8 inches (58 cm) |
| Monitor Tilt | 30° |
| Monitor Rotation | 360° |
| VESA Standard | MIS-D |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Worksurface Capacity | Up to 5 lb (2.3 kg) |
| Worksurface Dimensions | Approximately 23 x 15 inches (58.5 x 38 cm) |
| Keyboard Tray Capacity | Up to 5 lb (2.3 kg) |
| Keyboard Tray Dimensions | Approximately 27 x 9 inches (68.5 x 22.6 cm) |
| Keyboard Tray Adjustment | 18 inches (46 cm) |
| Keyboard Tray Tilt | 5° backward |
| Desk Surface Thickness | 0.47–2.4 inches (1.2–6 cm) |
| Mounting Type | Front-edge desk clamp |
| Construction | Aluminum, plastic, and steel |
| Warranty | 5 years |
| UPC | 698833050387 |
Package Contents
- Height-adjustment column
- Desk clamp
- LCD pivot
- Worksurface
- Large keyboard tray
Frequently Asked Questions
What is the Ergotron 33-350-211?
It is a white WorkFit-S Single LD sit-stand workstation with an integrated worksurface and large keyboard tray for one light-duty monitor.
What monitor weight does it support?
The LCD pivot supports displays weighing 6–16 lb (2.7–7.3 kg). The total load on the height-adjustment assembly must not exceed 18 lb (8.2 kg).
How much height adjustment is available?
The LCD and keyboard tray adjust together through 18 inches, with approximately 4.8 inches of independent LCD adjustment. With the worksurface installed, the maximum LCD height adjustment is 22.8 inches.
What size desk edge can the clamp accommodate?
The desk clamp attaches to a suitable surface edge from 0.47 to 2.4 inches (1.2–6 cm) thick.
What VESA mounting patterns are supported?
The LCD pivot uses VESA MIS-D mounting and supports 75 x 75 mm and 100 x 100 mm patterns.
Is the worksurface part of this exact configuration?
Yes. The 33-350-211 is specifically the WorkFit-S Single LD with Worksurface+ configuration and includes the worksurface and large keyboard tray.
