Overview

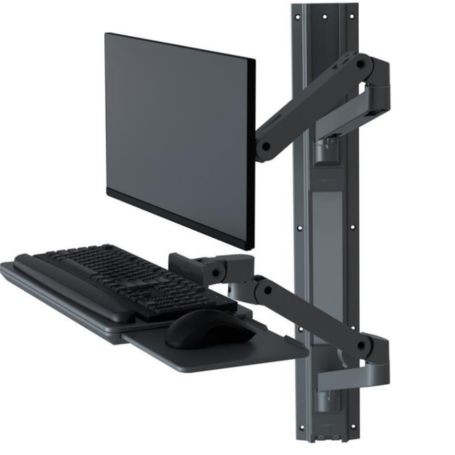

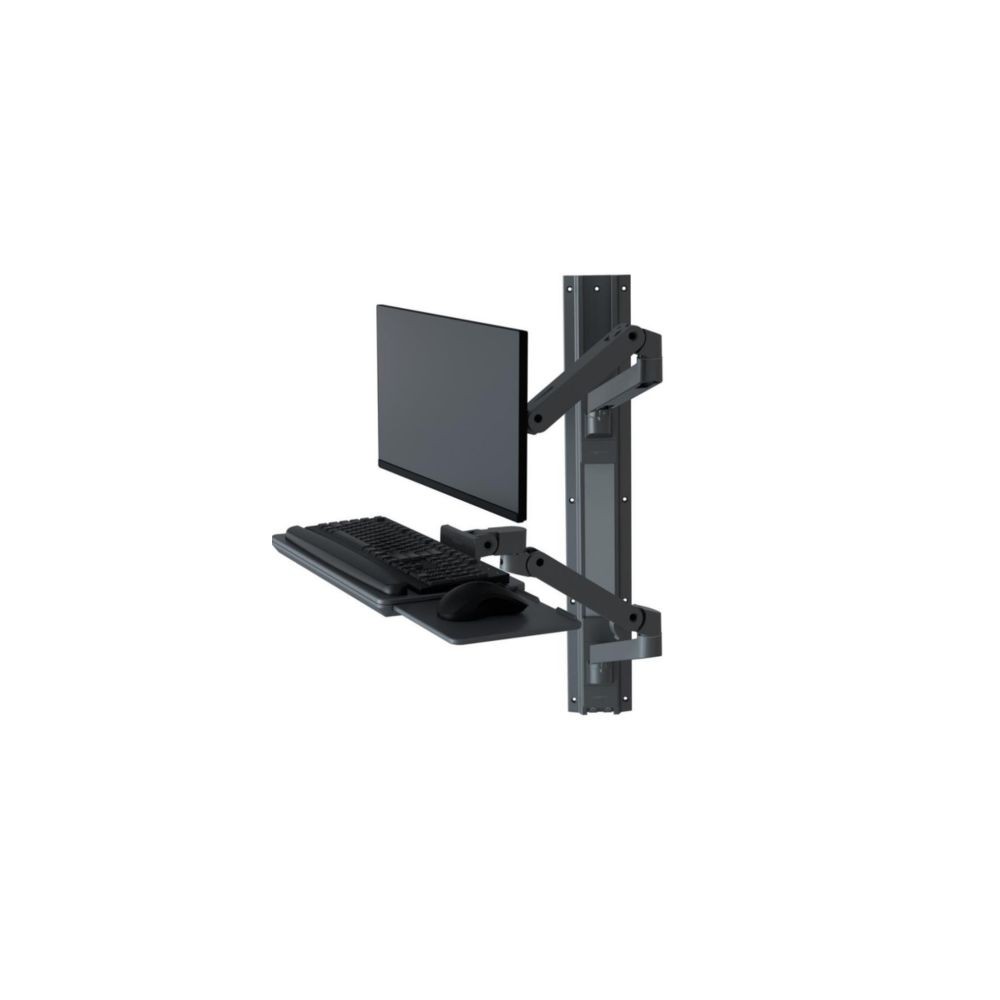

The Ergotron 45-696-293 LX Pro Wall Mount System is a dark grey wall-mounted computer workstation combining adjustable monitor and keyboard positioning. It uses a wall track and articulated arms to provide a dedicated computer workspace while keeping the monitor and keyboard off the desktop.
Monitor and Keyboard Positioning
The monitor arm supports displays up to 34 inches with a weight capacity of 4–22 lb (1.8–10 kg). It provides 13 inches (33 cm) of lift, 85° of tilt, 180° of monitor pan, and 360° of monitor rotation. The keyboard arm extends up to 35 inches (89 cm), while the monitor arm extends up to 25 inches (64 cm).
Wall Track and Workstation Design
The system uses a wall track with articulated monitor and keyboard arms. The keyboard tray measures 18.7 x 9.4 inches (48 x 24 cm) and is accompanied by a mouse holder and wrist pad. The wall-track arrangement allows the workstation components to be positioned and repositioned along the available mounting area.
VESA Compatibility
The monitor pivot supports VESA FDMI MIS-D, 100/75, C mounting patterns, including 100 x 100 mm and 75 x 75 mm hole spacing. The monitor must remain within the specified 4–22 lb capacity even when its screen size is within the stated range.
Adjustment and Cable Management
The LX Pro Wall Mount System incorporates Constant Force technology for adjustable positioning. Its current design also includes a tension indicator and rotation-stop feature. Cable channels help route cables along the workstation and wall-track assembly.
Included Components
The standard 45-696-293 configuration includes two arms, two extensions, a monitor pivot, keyboard pivot, keyboard tray, slide-out mouse tray, mouse holder, two wall-mount bases, a 34-inch wall track, wall-track brackets, two cable channels, fasteners for wood stud or concrete wall installation, and attachment hardware.
Key Features
- Dark grey LX Pro wall-mounted monitor and keyboard workstation
- Supports displays up to 34 inches and 4–22 lb (1.8–10 kg)
- 13-inch (33 cm) monitor lift with 85° tilt and 360° rotation
- Up to 25 inches of monitor extension and 35 inches of keyboard extension
- Wall track system with keyboard tray, mouse holder, wrist pad, and cable channels
Applications
The LX Pro Wall Mount System is suited to office, professional, education, industrial, and other workspace installations where a wall-mounted computer workstation can preserve desk and floor space. The adjustable monitor and keyboard arms allow the workstation to be repositioned for different users and viewing positions.
DC Supplies Product Note
Confirm the display weight, VESA pattern, and wall structure before installation. The 45-696-293 accepts displays up to 34 inches, but the monitor must remain within the 4–22 lb rated capacity and the wall must be suitable for the specified mounting method.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-696-293 |
| Product Type | Wall Mount Computer Workstation |
| Series | LX Pro |
| Configuration | Monitor and Keyboard Mount |
| Color | Dark Grey |
| Typical Display Size | Up to 34 inches |
| Monitor Capacity | 4–22 lb (1.8–10 kg) |
| Monitor Lift | 13 inches (33 cm) |
| Monitor Tilt | 85° (70° up / 15° down) |
| Monitor Pan | 180° |
| Base Arm Pan | 180° with rotation stop engaged |
| Monitor Rotation | 360° |
| Monitor Extension | Up to 25 inches (64 cm) |
| Keyboard Extension | Up to 35 inches (89 cm) |
| Keyboard Tray Dimensions | 18.7 x 9.4 inches (48 x 24 cm) |
| VESA Standard | FDMI MIS-D, 100/75, C |
| VESA Mounting Patterns | 100 x 100 mm and 75 x 75 mm |
| Wall Mounting | Wall Track |
| Product Weight | 24.0 lb (10.9 kg) |
| Warranty | 10 years |
| GTIN | 00698833092103 |
Frequently Asked Questions
What monitors can the Ergotron 45-696-293 support?
The system supports a single display up to 34 inches with a rated monitor capacity of 4–22 lb (1.8–10 kg).
What VESA patterns are supported?
The monitor pivot supports VESA MIS-D patterns including 75 x 75 mm and 100 x 100 mm mounting configurations.
How far can the monitor and keyboard extend?
The monitor arm provides up to 25 inches (64 cm) of extension, while the keyboard arm provides up to 35 inches (89 cm) of extension.
What are the keyboard tray dimensions?
The keyboard tray measures 18.7 x 9.4 inches (48 x 24 cm).
Does the system include cable management?
Yes. The standard configuration includes two cable channels for routing cables along the workstation assembly.
What is included with the 45-696-293?
The standard configuration includes two arms, two extensions, monitor and keyboard pivots, keyboard tray, mouse tray and holder, two wall-mount bases, a 34-inch wall track, wall-track brackets, cable channels, mounting fasteners, and attachment hardware.
