Overview

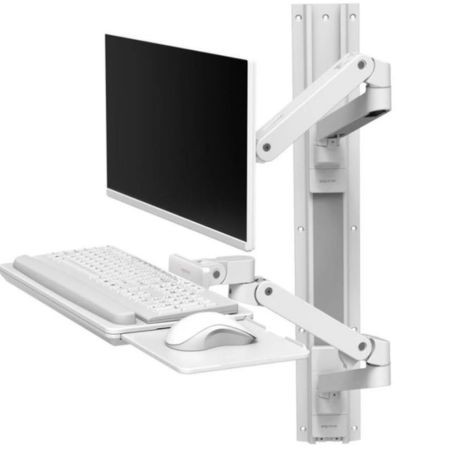

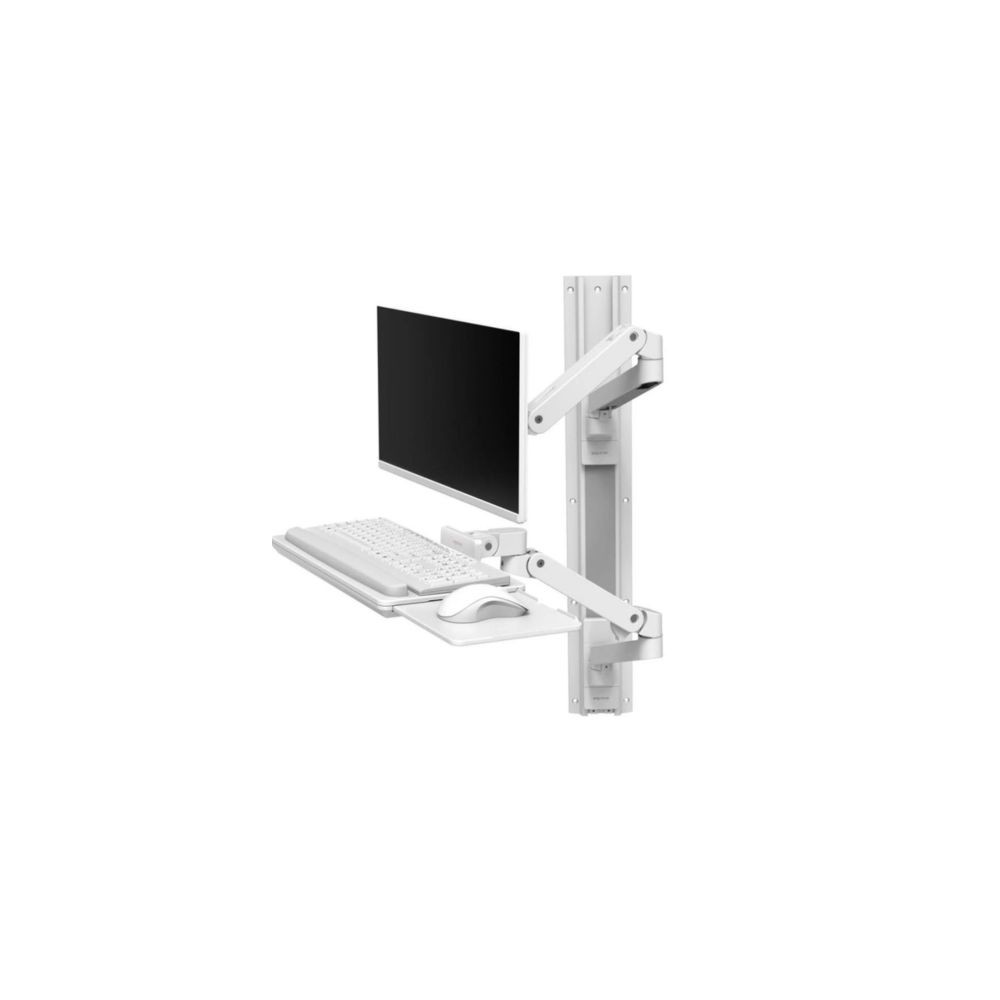

The Ergotron 45-696-290 LX Pro Wall Mount System is a white wall-mounted computer workstation combining adjustable monitor and keyboard positioning on a wall track. The system uses two articulated arms to provide flexible positioning while helping conserve floor and desktop space.
Monitor and Keyboard Positioning
The monitor arm supports displays up to 34 inches and 4–22 lb (1.8–10 kg). It provides 13 inches (33 cm) of lift, 85° of display tilt, 360° of pan, and 360° of monitor rotation. The keyboard arm supports a keyboard, mouse, and related input equipment, with up to 5 lb (2.2 kg) of keyboard load capacity.
Wall Track and Workspace
The LX Pro Wall Mount System uses a wall track to support the workstation arms. The display can extend up to 25 inches (64 cm), while the keyboard can extend up to 35 inches (89 cm). The keyboard tray measures approximately 18.7 x 9.4 inches (48 x 24 cm), providing a dedicated working surface for keyboard and mouse use.
VESA Compatibility
The monitor pivot supports VESA FDMI MIS-D, 100/75, C mounting patterns, including 100 x 100 mm and 75 x 75 mm hole spacing. The display must remain within the specified 4–22 lb capacity, regardless of screen size.
Adjustment and Cable Management
The LX Pro system incorporates Constant Force technology for light-touch positioning. A tension-level indicator provides a visual reference when balancing the arms, while the integrated rotation-stop feature can limit arm movement to help deter contact with walls, partitions, or cubicles. Cable covers and channels help route cables along the workstation.
Included Components
The standard system includes two arms, two extensions, a monitor pivot, wall-mount base, wall track, keyboard tray pivot, mouse holder, wrist pad, and attachment hardware. CPU holders and other PC mounting accessories are ordered separately.
Key Features
- White LX Pro wall-mounted computer workstation
- Supports displays up to 34 inches and 4–22 lb (1.8–10 kg)
- 13-inch (33 cm) monitor lift with 85° tilt and 360° rotation
- Up to 25 inches of monitor extension and 35 inches of keyboard extension
- Wall track workstation with integrated keyboard tray, mouse holder, and wrist pad
Applications
The LX Pro Wall Mount System is suited to office, industrial, education, healthcare, and other workspace environments where a wall-mounted computer station can provide an adjustable monitor and keyboard position. Its wall-track design is particularly useful where preserving desk or floor space is important.
DC Supplies Product Note
Verify the display weight and VESA mounting pattern before installation. The 45-696-290 supports monitors up to 34 inches, but the display must remain within the 4–22 lb rated capacity. CPU holders are separate accessories rather than part of the standard system.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-696-290 |
| Product Type | Wall Mount Computer Workstation |
| Series | LX Pro |
| Configuration | Monitor and Keyboard Workstation |
| Color | White |
| Typical Display Size | Up to 34 inches |
| Display Capacity | 4–22 lb (1.8–10 kg) |
| Keyboard Capacity | Up to 5 lb (2.2 kg) |
| Monitor Lift | 13 inches (33 cm) |
| Monitor Tilt | 85° |
| Monitor Pan | 360° |
| Monitor Rotation | 360° |
| Monitor Extension | Up to 25 inches (64 cm) |
| Keyboard Extension | Up to 35 inches (89 cm) |
| Keyboard Tray Dimensions | 18.7 x 9.4 inches (48 x 24 cm) |
| VESA Standard | FDMI MIS-D, 100/75, C |
| VESA Mounting Patterns | 100 x 100 mm and 75 x 75 mm |
| Wall Mounting | Wall Track |
| Warranty | 10 years |
| UPC / GTIN | 00698833092066 |
| Product Weight | 25.4 lb (11.5 kg) |
Frequently Asked Questions
What monitors can the Ergotron 45-696-290 support?
The system supports a single display up to 34 inches with a rated monitor capacity of 4–22 lb (1.8–10 kg).
What VESA patterns are supported?
The monitor pivot supports VESA MIS-D patterns using 75 x 75 mm and 100 x 100 mm mounting hole configurations.
How far can the monitor and keyboard extend?
The monitor can extend up to 25 inches (64 cm), while the keyboard arm can extend up to 35 inches (89 cm).
What are the keyboard tray dimensions?
The keyboard tray measures approximately 18.7 x 9.4 inches (48 x 24 cm).
Does the system include a CPU holder?
No. CPU holders are optional accessories and are ordered separately from the LX Pro Wall Mount System.
What is included with the 45-696-290?
The standard system includes two arms, two extensions, monitor pivot, wall-mount base, wall track, keyboard tray pivot, mouse holder, wrist pad, and attachment hardware.
