Overview

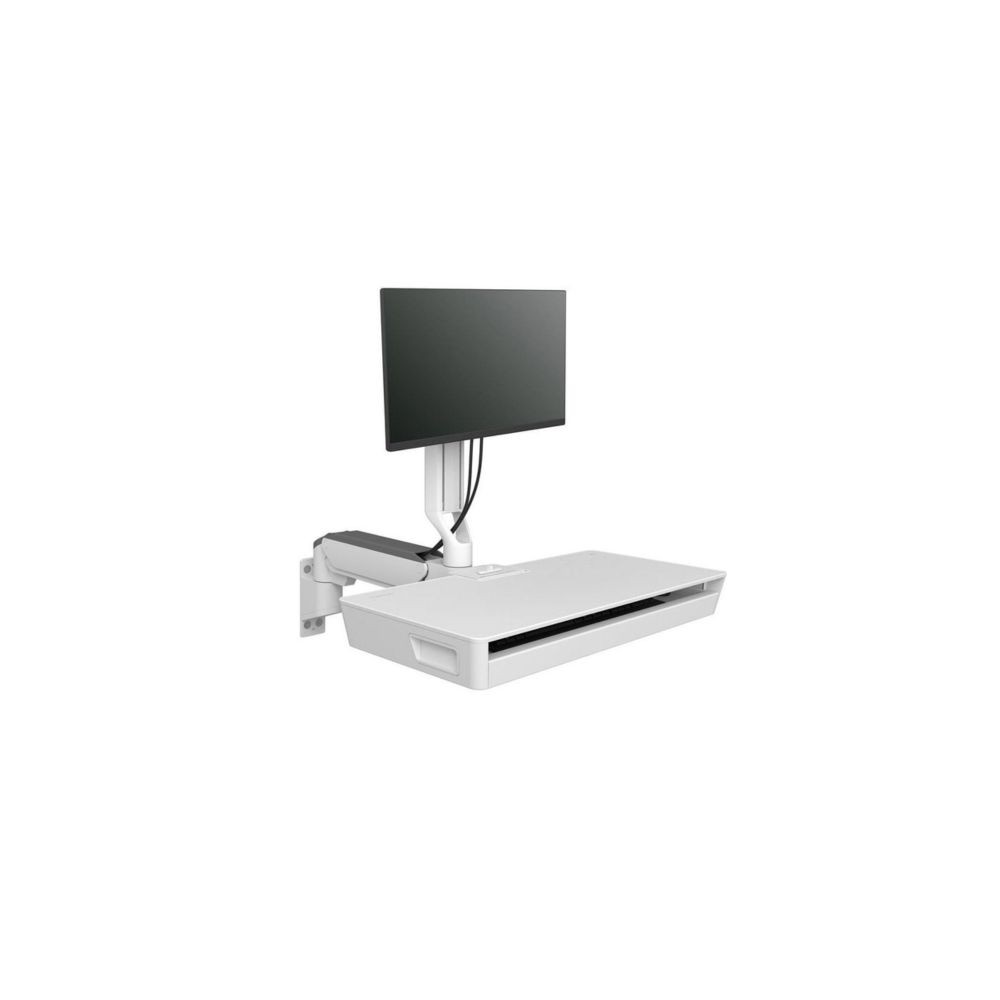

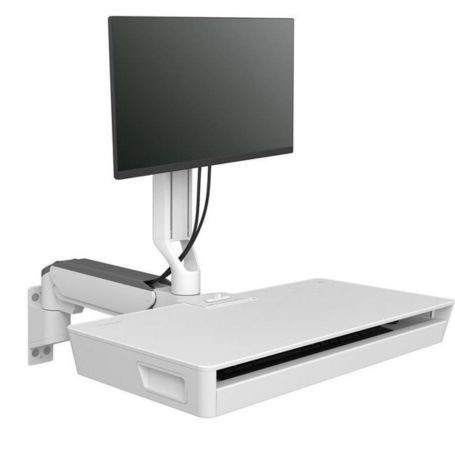

The Ergotron 45-622-251 CareFit™ Combo Arm with Worksurface is a modular wall-mounted workstation designed for healthcare documentation environments. It combines an articulating monitor arm with a pull-out keyboard tray and integrated worksurface, providing a dedicated area for a display, keyboard, mouse, and supporting workflow items.
Monitor and Worksurface Support
The system supports a typical LCD display up to 27 inches and a monitor weight of 8–22 lb (3.6–10 kg). The integrated worksurface supports up to 1.5 lb (0.68 kg). The monitor and keyboard can move together through a 20-inch (51 cm) lift range, while the monitor can also be adjusted independently by up to 5 inches (13 cm).
Adjustment and Positioning
The monitor provides 20° upward and 5° downward tilt. The worksurface and keyboard tray can tilt upward through 90° for space-saving storage. The arm provides 360° total side-to-side movement through two 180° pivot points, while the monitor can rotate independently through 180°.
Mounting and VESA Compatibility
The CareFit Combo Arm mounts to the wall and includes a wall mount base and track mount adapter. The monitor attachment uses VESA FDMI MIS-D mounting patterns for 75 x 75 mm and 100 x 100 mm displays. An optional CareFit Extender, part 98-547-251, can increase the available extension range.
Key Features
- Integrated CareFit Combo workstation with full worksurface
- Supports displays up to 27 inches and 8–22 lb (3.6–10 kg)
- 20-inch (51 cm) tandem lift for monitor and keyboard
- Independent monitor adjustment provides an additional 5 inches (13 cm) of height adjustment
- Pull-out keyboard tray and worksurface fold upward for space-saving storage
Applications
The CareFit Combo Arm with Worksurface is designed for point-of-care documentation and other healthcare workstation applications where a wall-mounted computer workspace is required. Its adjustable monitor, keyboard tray, and integrated worksurface allow the workstation to be positioned for different users and stored closer to the wall when not in use.
DC Supplies Product Note
For installation planning, verify that the monitor weighs between 8 and 22 lb and that the desk-side equipment placed on the integrated worksurface remains within its 1.5 lb capacity. The optional 98-547-251 extender can be used when additional reach from the wall is required.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-622-251 |
| Product Type | Wall-Mounted Computer Workstation Arm |
| Series | CareFit Combo |
| Configuration | Arm with Full Worksurface |
| Color | White |
| Typical LCD Size | Up to 27 inches |
| Monitor Capacity | 8–22 lb (3.6–10 kg) |
| Worksurface Capacity | 1.5 lb (0.68 kg) |
| Tandem Lift | 20 inches (51 cm) |
| Independent Monitor Lift | 5 inches (13 cm) |
| Monitor Tilt | 20° up / 5° down |
| Worksurface Tilt | 90° upward |
| Arm Pan | 360° total |
| Monitor Rotation | 180° |
| VESA Standard | VESA FDMI MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Optional Extender | 98-547-251 |
| Stowed Position | Within 11 inches (28 cm) of the wall |
| Product Weight | 18.2 kg (40.2 lb) |
| Warranty | 5 years |
| GTIN | 00698833083361 |
Frequently Asked Questions
What is the Ergotron 45-622-251?
It is a CareFit Combo Arm with an integrated full worksurface, combining a wall-mounted monitor arm with a pull-out keyboard tray and workspace.
What size monitor does it support?
The typical supported display size is up to 27 inches, with a monitor weight capacity of 8–22 lb (3.6–10 kg).
What VESA mounting patterns are supported?
The monitor mount supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
How far can the workstation move vertically?
The monitor and keyboard can move together through a 20-inch (51 cm) tandem lift range. The monitor also has up to 5 inches (13 cm) of independent height adjustment.
Can the workstation be folded toward the wall?
Yes. The workstation folds to within approximately 11 inches (28 cm) of the wall in the stowed position.
Is an extender included?
The CareFit Extender, part 98-547-251, is an optional accessory and is not part of the standard 45-622-251 configuration.
