Overview

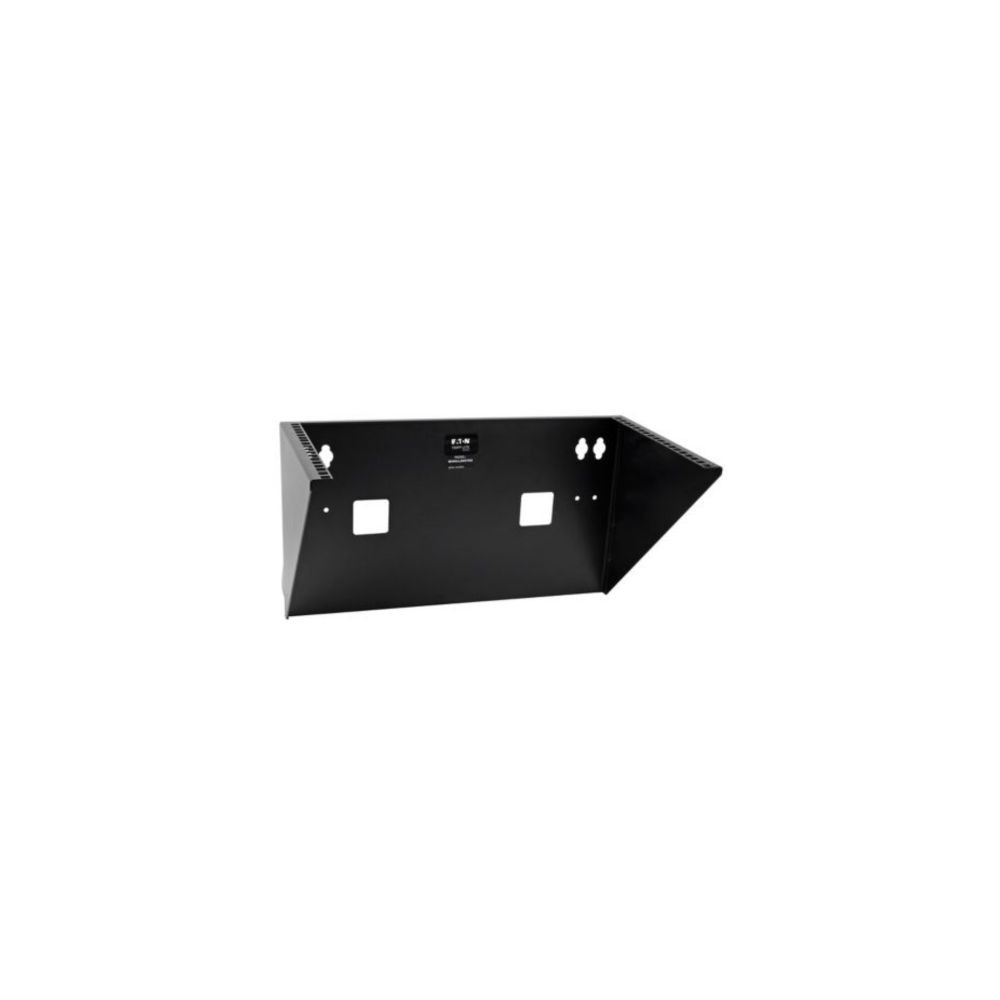

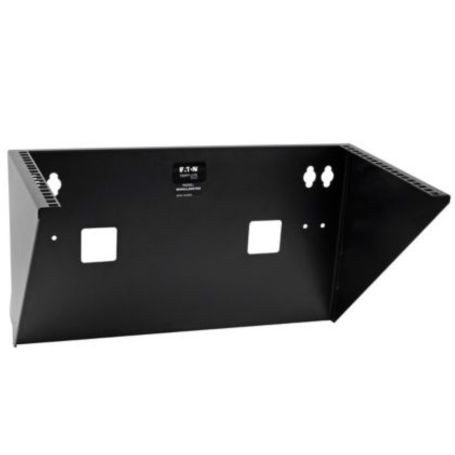

The Eaton Tripp Lite SRWALLBRKT6U SmartRack is a 6U vertical wall-mount rack bracket designed for mounting compatible 19-inch rack equipment directly to a wall. Its open design provides unrestricted access to installed equipment and cabling while supporting a maximum equipment load of 200 lb. (90.7 kg).
Rack Compatibility
The SRWALLBRKT6U is compatible with most EIA-standard 19-inch 2-post rack equipment. The bracket provides 6U of vertical rack space and supports equipment mounting using the included M6 mounting hardware.
Construction and Mounting
The bracket is manufactured from cold-rolled steel and finished with a black powder coating. It is intended for vertical wall installation and requires the installer to provide suitable wall-mounting hardware appropriate for the mounting surface and supported load.
Key Features
- Provides 6U of vertical rack-mount space
- Supports compatible 19-inch EIA-standard 2-post rack equipment
- Supports a maximum load of 200 lb. (90.7 kg)
- Open construction provides unrestricted equipment and cable access
- Cold-rolled steel construction with black powder-coated finish
Applications
The SRWALLBRKT6U is designed for wall-mounted installations where rack equipment needs to be positioned vertically without using a conventional enclosed rack cabinet. It can be used for compatible networking and other 19-inch rack equipment in home offices, small businesses, back offices, closets and similar installations.
DC Supplies Product Note
The SRWALLBRKT6U does not include the hardware used to attach the bracket to the building structure. The manufacturer specifies that installers must select suitable wall-mounting hardware and verify that the supporting surface can safely carry the combined weight of the bracket, installed equipment and associated hardware.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | SRWALLBRKT6U |
| Product Type | Vertical Wall-Mount Rack Bracket |
| Series | SmartRack |
| Rack Height | 6U |
| Rack Width | 19 in. |
| Rack Type | 2-post |
| Mounting Orientation | Vertical wall-mount |
| Maximum Load Capacity | 200 lb. (90.7 kg) |
| Material | Cold-rolled steel |
| Finish | Black powder-coated |
| Equipment Compatibility | Most EIA-standard 19-inch 2-post rack equipment |
| Mounting Hardware Included | 12 M6 screws, 12 M6 cage nuts and 12 M6 cup washers |
| Product Length/Depth | 11.15 in. |
| Product Height | 11.15 in. |
| Product Width | 19.69 in. |
| Product Weight | 8.38 lb. |
| UPC | 037332203212 |
| Compliance | RoHS, EIA-310-E |
| Warranty | 5-year limited warranty |
Package Contents
The manufacturer specifies the package contents as the SRWALLBRKT6U 6U vertical wall-mount rack bracket, 12 M6 screws, 12 M6 cage nuts, 12 M6 cup washers and an installation guide.
FAQs
How much rack space does the SRWALLBRKT6U provide?
The bracket provides 6U of vertical rack-mount space for compatible 19-inch equipment.
What is the maximum supported load?
The maximum listed load capacity is 200 lb. (90.7 kg).
What rack equipment is compatible?
The SRWALLBRKT6U is designed for most EIA-standard 19-inch 2-post rack equipment.
Does the bracket include wall-mounting hardware?
No. The manufacturer states that installers are responsible for providing appropriate hardware for attaching the bracket to the wall and for verifying that the mounting surface can safely support the installed load.
What mounting hardware is included?
The package includes 12 M6 screws, 12 M6 cage nuts and 12 M6 cup washers for mounting compatible rack equipment to the bracket.
