Detailed Specifications

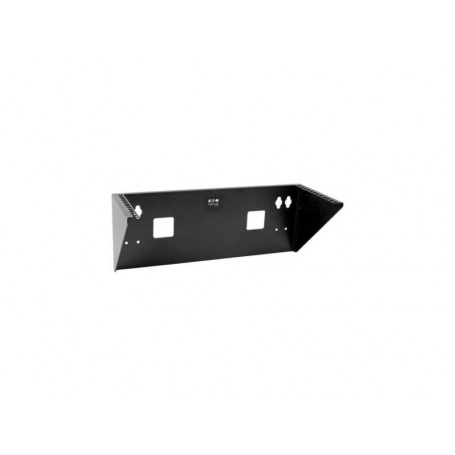

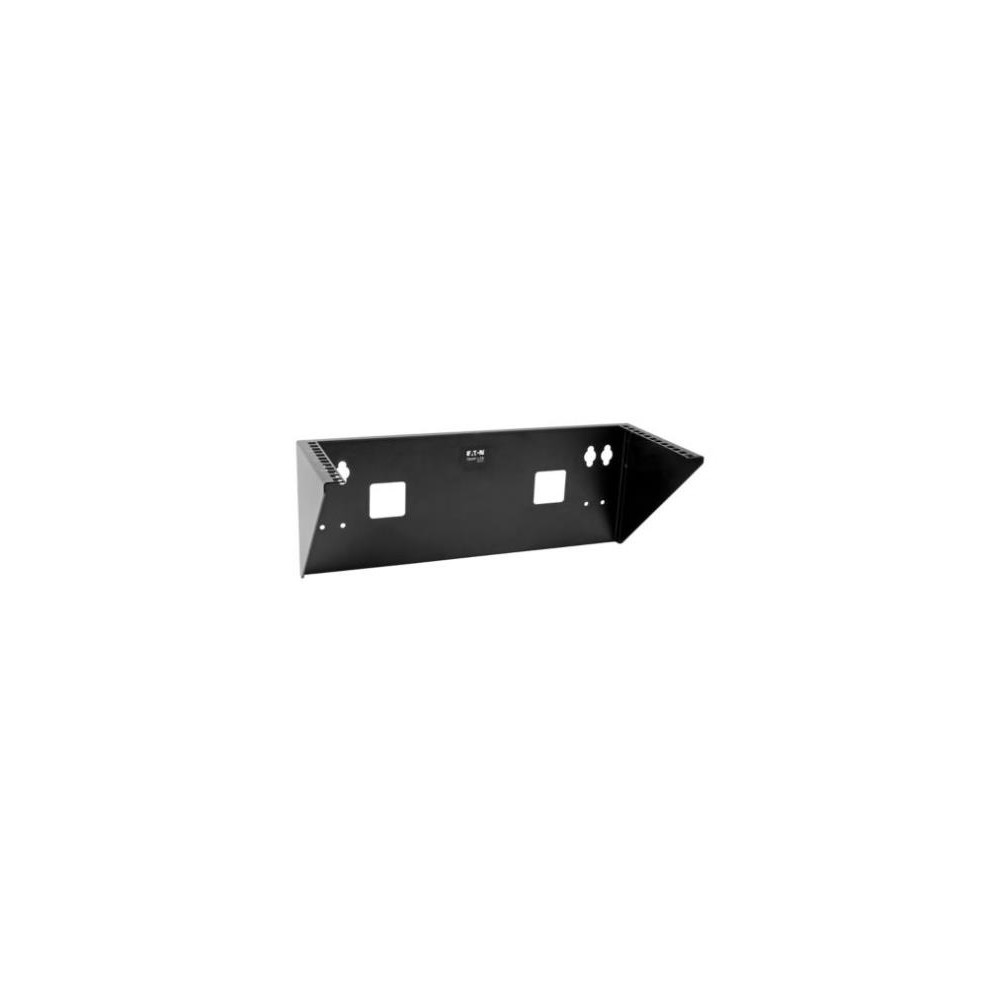

EATON SRWALLBRKT4UKD SmartRack 4U Vertical Wall-Mount Rack Bracket Tripp Lite
Overview
The EATON SRWALLBRKT4UKD is a SmartRack 4U vertical wall-mount rack bracket designed for mounting standard 19-inch 2-post rack equipment. It features a heavy-duty cold-rolled steel construction with a black powder-coated finish and provides open, unrestricted access to installed equipment and cabling.
The knock-down design ships unassembled for convenient transportation and installation. Wall-mounting holes are spaced 16 inches apart for standard wall-stud placement, and the bracket can also be installed horizontally beneath a desk or workbench.
Key Features
- Brand / Manufacturer: EATON
- Compatible Brand: Tripp Lite
- Model: SRWALLBRKT4UKD
- Product Series: SmartRack
- Product Type: Wall-Mount Rack Bracket
- Rack Height: 4U
- Mounting Type: Vertical Wall Mount
- Rack Compatibility: Standard 19-inch 2-Post Rack Equipment
- Construction: Heavy-Duty Cold-Rolled Steel
- Finish: Black Powder-Coated
- Load Capacity: 175 lb / 79.4 kg
- Design: Knock-Down / Unassembled
- Wall-Mounting Hole Spacing: 16 inches
- Mounting Rails: Horizontal
- Mounting Hole Type: Square Hole
- Cable Access: Open / Unrestricted
- Included Hardware: Mounting hardware included
- Compliance: EIA-310-E, RoHS
- Warranty: 5 Years
Specifications
| Specification | Details |
|---|
| Manufacturer | EATON |
| Compatible Brand | Tripp Lite |
| Model | SRWALLBRKT4UKD |
| Series | SmartRack |
| Product Type | Wall-Mount Rack Bracket |
| Rack Height | 4U |
| Mounting Type | Vertical Wall Mount |
| Rack Equipment Compatibility | Standard 19-inch 2-Post Equipment |
| Material | Cold-Rolled Steel |
| Finish | Black Powder-Coated |
| Load Capacity | 175 lb / 79.4 kg |
| Assembly | Knock-Down / Unassembled |
| Wall Stud Spacing | 16 in |
| Mounting Rails | Horizontal |
| Mounting Holes | Square Hole |
| Color | Black |
| Compliance | EIA-310-E, RoHS |
| Warranty | 5 Years |
