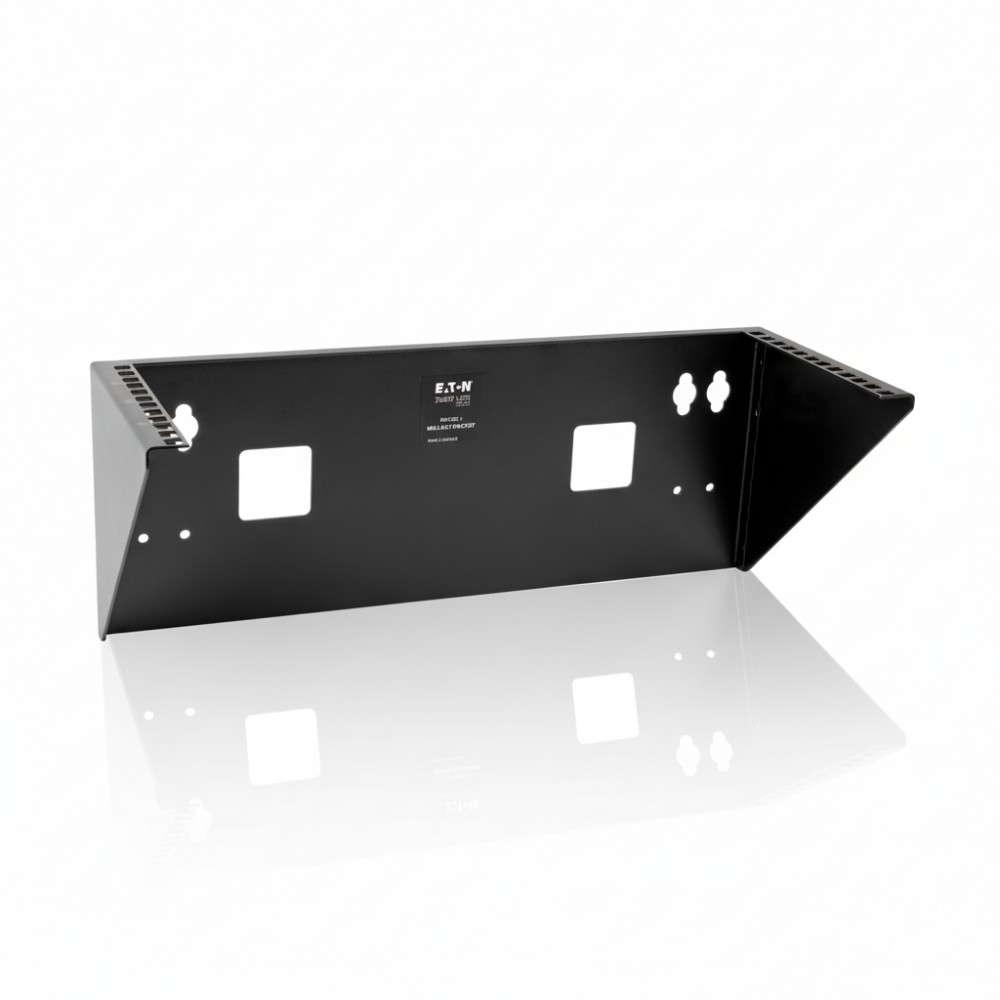

Eaton SRWALLBRKT4U 4U Vertical Wall-Mount Rack Bracket 175 lb

Overview :

The Eaton SRWALLBRKT4U is a vertical wall-mount rack bracket engineered to support 4 rack units (4U) of 19-inch rack-mount equipment on a wall surface without a traditional cabinet enclosure. It is deployed by network engineers, systems integrators, and small-business IT teams in areas where floor space is limited or rack cabinets are impractical. The bracket provides a secure platform for compact network, power, and AV infrastructure.

From a technical deployment perspective, the bracket features robust cold-rolled steel construction with a durable black powder-coat finish. It supports a static load capacity of 175 lb (79.4 kg), which is adequate for a mix of switches, routers, patch panels, PDUs, or small UPS modules. EIA-310-E standard 19-inch mounting rails accommodate rack equipment with standard square hole or threaded rails. Hardware for rail attachment and rack equipment mounting is included with the bracket.

This bracket fits edge and distribution layer environments such as telecommunications closets, utility rooms, back offices, and lab spaces. Its vertical profile is ideal where depth and floor footprint must be minimized compared to full rack enclosures. The open design facilitates unobstructed access to cabling and connectors for service and maintenance tasks.

Integration aligns with 19-inch EIA-standard equipment, yielding compatibility with typical rack gear. The bracket can be mounted vertically on walls or horizontally beneath service benches. Installation requires user-supplied anchors appropriate for the wall substrate (concrete, masonry, or stud). Rack equipment is mounted with included cage nuts and screws.

In a practical deployment, a field engineer might use the SRWALLBRKT4U to mount a small PoE switch, a compact UPS, and a patch panel in a break-room closet serving a wireless access point zone. The bracket supports neat cabling arrangements and keeps infrastructure accessible without full rack cabinetry.

This device should not be used where seismic ratings, environmental protection (dust/water), or enclosed security are required. It is also not suitable for deep equipment requiring significant rear clearance or cable management panels that exceed its open rail span.

Key Features

• 4U vertical wall-mount bracket for 19″ rack gear
• Cold-rolled steel with black powder-coat finish
• 175 lb (79.4 kg) static load capacity
• EIA-310-E compatible rails
• Open design for easy cabling access
