Detailed Specifications

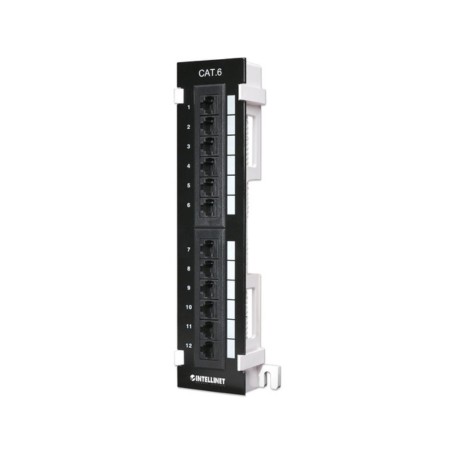

Intellinet 560269 Cat6 12-Port Wall-Mount Patch Panel
Overview :
The Intellinet 560269 is a Category 6 wall-mount patch panel designed for structured copper cabling installations in enterprise networks, telecommunications rooms, branch offices, and data centers. It provides a centralized termination point for UTP Ethernet cabling while simplifying cable organization and network administration.
Featuring 12 RJ45 ports with Cat6 performance, the patch panel supports Ethernet, Fast Ethernet, and Gigabit Ethernet networks. Gold-plated jack contacts provide reliable signal transmission, while compatibility with both 110 and Krone punch-down tools enables flexible installation. It supports both solid and stranded 22-26 AWG UTP cable.
The compact wall-mount design is suitable for installations where a standard equipment rack is unavailable, including small network closets, retail locations, branch offices, and edge deployments. It is intended for use with unshielded Cat6 cabling and complies with ANSI/TIA/EIA-568-B.2-1 performance requirements.
This patch panel is designed for copper UTP network infrastructure. It should not be used for shielded cabling installations or fiber-optic network deployments.
Key Features :
- Twelve Cat6 RJ45 ports for structured cabling
- Supports 22-26 AWG solid and stranded wire
- Compatible with 110 and Krone punch tools
- Gold-plated contacts ensure reliable connections
- Wall-mount design for space-saving deployment
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 560269 |
| Product Type | Cat6 Wall-Mount Patch Panel |
| Number of Ports | 12 RJ45 |
| Cable Category | Cat6 UTP |
| Mounting Type | Wall Mount |
| Supported Cable | 22-26 AWG Solid and Stranded UTP |
| Termination | 110 and Krone Punch-Down |
| Contact Plating | Gold-Plated |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Compliance | ANSI/TIA/EIA-568-B.2-1 |
| Certifications | UL Listed, RoHS Compliant |
| Operating Temperature | -40°C to 80°C |
