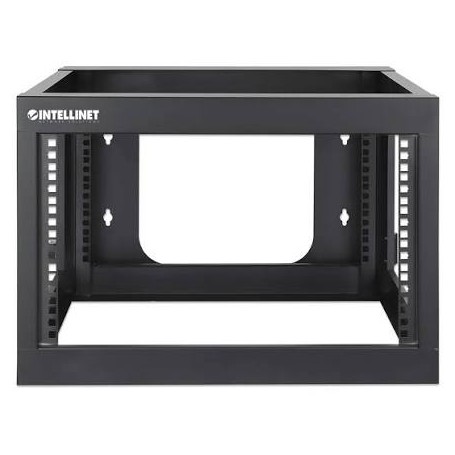

INTELLINET 716031 - 19" Wall Mount 4-Post Open Frame Network Rack, 6U

Overview

The INTELLINET 716031 is a 6U 19-inch wall-mountable 4-post open-frame network rack built with a rear-hinged swing-frame design.It solves accessibility and heat dissipation challenges in space-constrained network closets, branch offices, and AV deployments by providing full passive ventilation and swinging open away from the wall for quick rear-panel maintenance.

Constructed from heavy-duty SPCC cold-rolled steel with an antistatic powder coating, the rack supports a static load capacity of up to 40 kg (88 lbs.).It offers a usable mounting depth of 540 mm (21.26 in.), accommodating 19-inch rackmount switches, patch panels, shelf units, and telecom equipment.

Designed for installation in secure, climate-controlled environments where lockable enclosure doors are not required.It is incompatible with heavy enterprise server hardware exceeding 40 kg or deep-chassis equipment requiring installation depths beyond 540 mm.

Key Features

• Rear-hinged frame swings open for frictionless rear-panel access.

• 4-post open design provides passive cooling and unrestricted airflow.

• 6U rack height with a 540 mm (21.26 in.) usable mounting depth.

• Cold-rolled SPCC steel construction supports up to 88 lbs. static load.

• Reversible swing frame can be set up to open from the left or right.
