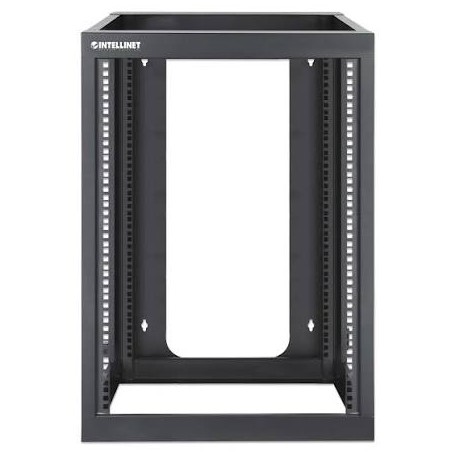

INTELLINET 716161 - 19" Wall Mount 4-Post Open Frame Network Rack, 15U

Overview

The INTELLINET 716161 is a 15U 19-inch wall-mountable 4-post open-frame network rack engineered with a rear-hinged swing-frame design.It solves accessibility and airflow issues in space-constrained network closets, branch offices, and AV installations by enabling 360-degree open access to cabling and equipment while swinging open away from the wall for frictionless rear-panel maintenance.

Constructed from heavy-duty SPCC cold-rolled steel finished with an antistatic powder coat, the rack supports a static load capacity of up to 40 kg (88 lbs.).It provides a usable installation depth of 540 mm (21.26 in.), accommodating 19-inch rackmount switches, patch panels, shelf units, and telecom hardware.

Designed for secure, temperature-controlled locations where lockable security doors are not required.It is incompatible with heavy server hardware exceeding 40 kg or deep-chassis enterprise servers requiring installation depths greater than 540 mm.

Key Features

• Rear-hinged frame swings open for rapid, toolless rear access.

• 4-post open construction provides maximum airflow and passive cooling.

• 15U rack capacity with a 540 mm (21.26 in.) usable mounting depth.

• Heavy-duty SPCC cold-rolled steel construction supports up to 88 lbs.

• Reversible swing mechanism opens from either the left or right side.
