Detailed Specifications

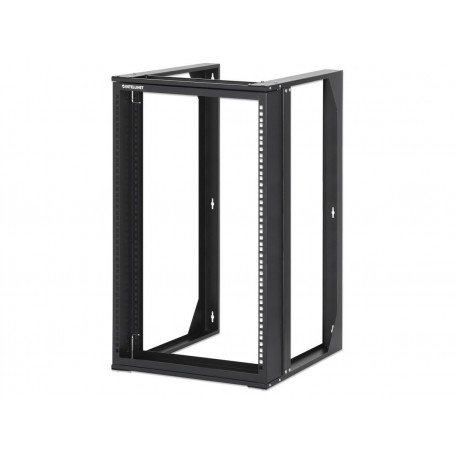

INTELLINET 716208 - 19" 15U Wall Mount Open Frame Network Rack
Overview :
The INTELLINET 716208 19" 15U Wall Mount 2-Post Open Frame Network Rack offers a space-saving mounting solution for standard 19-inch IT equipment.
Its front-hinged swing frame opens to the left or right for easy rear wiring access. Built from cold-rolled SPCC steel, it supports up to 66 lbs (30 kg) when closed and ships flat-packed with 20 sets of M6 cage nuts.
Key Features :
Front-hinged swing frame allows easy access to rear connections.
Open 2-post design provides maximum passive airflow and cable access.
Sturdy SPCC steel supports up to 66 lbs (30 kg) closed / 22 lbs (10 kg) open.
15.75 in. (400 mm) usable depth accommodates switches, patch panels, and shelves.
Ships flat-packed and includes 20 M6 cage nut sets.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 716208 |
| Alphanumeric Part Number | IOFR-2PWM-15U |
| Product Type | 19" Wall Mount Open Frame Network Rack |
| Rack Capacity | 15U |
| Post Type | 2-Post Open Frame with Hinged Swing Frame |
| Usable Depth | 400 mm (15.75 in.) |
| Max Weight Capacity | 30 kg (66 lbs.) closed / 10 kg (22 lbs.) open |
| Material | SPCC Cold-Rolled Steel (Black RAL 9004) |
| Packaging State | Flat Pack |
