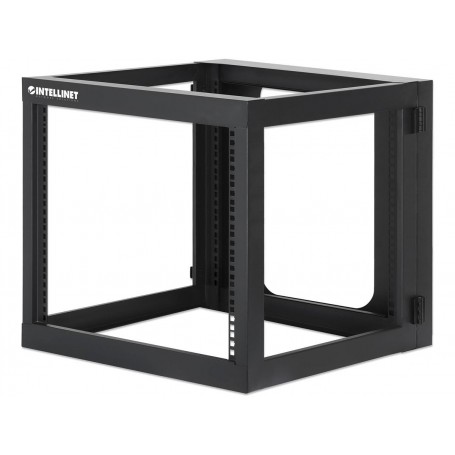

INTELLINET 716048 - 19" 9U Wall Mount Open Frame Network Rack

Overview :

The INTELLINET 716048 19" 9U Wall Mount 4-Post Open Frame Network Rack provides a flexible, space-saving mounting solution engineered for housing standard 19-inch IT and networking equipment. Designed for network installers, systems integrators, and IT administrators, it offers an accessible framework ideal for secure environments where lockable server cabinets are not required.

Constructed from heavy-duty cold-rolled SPCC steel with an antistatic powder-coated finish (RAL 9004), this 9U rack supports static equipment loads up to 88 lbs (40 kg). Its rear-hinged swing-frame design enables the entire front chassis to swing open, allowing effortless access to rear panel wiring, port connections, and hardware for simplified maintenance and testing. The open-frame 4-post structure ensures unhindered 360-degree passive airflow and multi-directional cable entry.

The rack ships fully assembled to streamline field deployment and includes a complete 20-piece cage nut set. With a usable depth of 21.26 in. (540 mm), it is well-suited for mounting patch panels, network switches, shelf units, and shallow servers in telecommunication closets, branch offices, testing labs, and AV control centers. Do not exceed the maximum 88 lb static weight rating or install without proper wall anchor support.

Key Features :

• Rear-hinged swing-frame design allows easy access to rear connectors and cabling.

• Open-frame 4-post architecture provides maximum passive ventilation and heat dissipation.

• Sturdy SPCC cold-rolled steel construction supports static loads up to 88 lbs (40 kg).

• Reversible frame orientation can be configured to swing open from either the left or right.

• Ships fully assembled and includes 20 sets of M6 cage nuts, screws, and washers.
