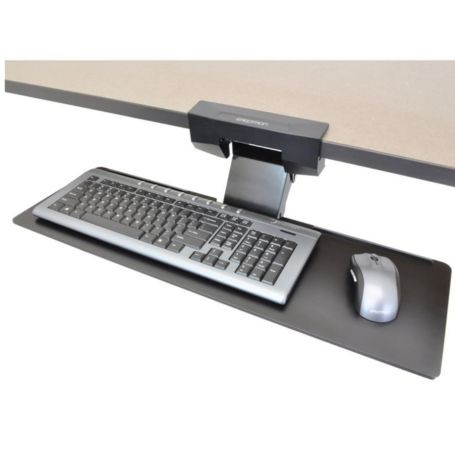

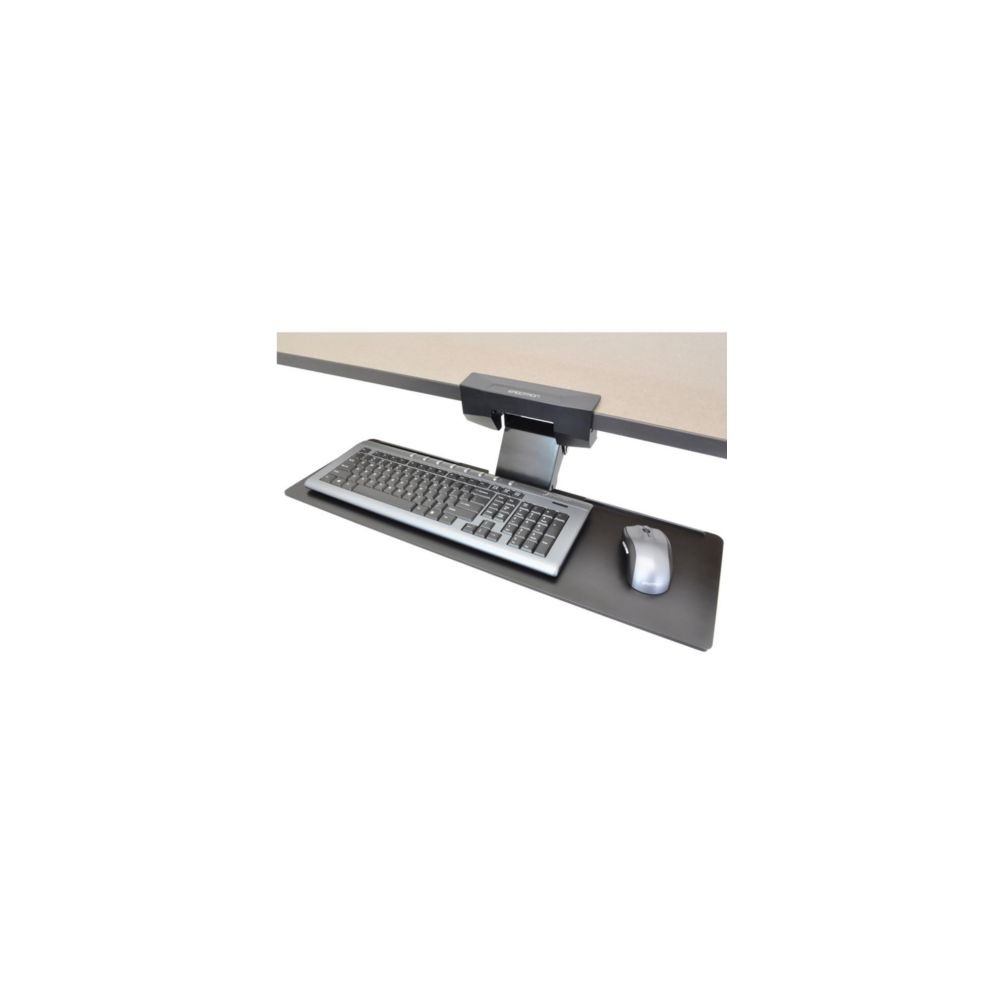

The Ergotron Neo-Flex Underdesk Keyboard Arm provides an adjustable platform for your keyboard and mouse while helping keep your desktop organized. Its large, one-piece tray moves beneath the worksurface when not in use, making it a practical solution for office desks and ergonomic workstation setups.
Key Features
- Adjustable positioning: Offers up to 6 inches (152 mm) of height adjustment and 15 degrees of tilt to help customize keyboard placement.
- Spacious keyboard tray: The 26.9 × 8.9-inch (68.3 × 22.6 cm) surface accommodates compatible keyboards and mouse equipment.
- Retractable design: Extends and retracts by up to 10.75 inches (273 mm), allowing the tray to be tucked under the desk when not needed.
- Flexible mounting: Can attach using a front desk clamp with a screw or with four screws directly beneath the worksurface.
- Smooth, stable movement: Ball-bearing slides support smooth travel, while the sturdy arm and tray provide a stable platform.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-582-009 |
|---|
| Product Type | Underdesk keyboard arm and tray |
|---|
| Product Series | Neo-Flex |
|---|
| Color | Black |
|---|
| Tray Dimensions | 26.9 × 8.9 inches (68.3 × 22.6 cm) |
|---|
| Maximum Load Capacity | 3 lb (1.4 kg) |
|---|
| Height Adjustment | Up to 6 inches (152 mm) |
|---|
| Tilt | 15 degrees |
|---|
| Extension / Retraction | 10.75 inches (273 mm) |
|---|
| Compatible Worksurface Thickness | 0.75–1.5 inches (19–38 mm) |
|---|
| Mounting Options | Front clamp with screw, or four-screw underdesk mounting |
|---|
| Product Weight | 10.2 lb (4.6 kg) |
|---|
| Included Components | Keyboard arm, one-piece tray, desk clamp, slide mechanism, and mounting hardware |
|---|
| Warranty | 3 years, according to Ergotron product specifications |
|---|
Flexible Installation for Everyday Work
The Neo-Flex keyboard arm supports two installation methods to suit different desk configurations. Use the front clamp and securing screw for a clamp-mounted setup, or install the arm beneath the worksurface with the four supplied screws. The desktop should be between 0.75 and 1.5 inches thick for the specified fit.
Once installed, adjust the tray height and tilt to suit your working position. When the keyboard is not needed, slide the platform underneath the desk to reclaim desktop space.
DC Supplies Product Note
Before purchasing, confirm your desk's thickness, available underdesk clearance, and mounting suitability. The maximum load is 3 lb (1.4 kg), including the keyboard and other equipment placed on the tray. Check the combined weight of your keyboard and mouse before installation.
Frequently Asked Questions
1. What is the Ergotron 97-582-009?
It is the black Neo-Flex Underdesk Keyboard Arm, designed to support an adjustable keyboard and mouse tray beneath a desk.
2. How much weight can the tray support?
The maximum supported load is 3 lb (1.4 kg). Include the weight of all equipment placed on the tray when checking capacity.
3. Can the tray be moved out of the way?
Yes. The sliding mechanism allows the tray to extend for use and retract beneath the worksurface when not needed.
4. What are the tray dimensions?
The one-piece tray measures 26.9 inches long by 8.9 inches wide (68.3 × 22.6 cm).
5. Which desks are compatible?
The arm is specified for worksurfaces 0.75–1.5 inches (19–38 mm) thick. Confirm that your desk also provides sufficient clearance for the mounting hardware and sliding mechanism.
6. What is included in the package?
The package includes the keyboard arm, one-piece tray, desk clamp, slide mechanism, and mounting hardware.
