Overview

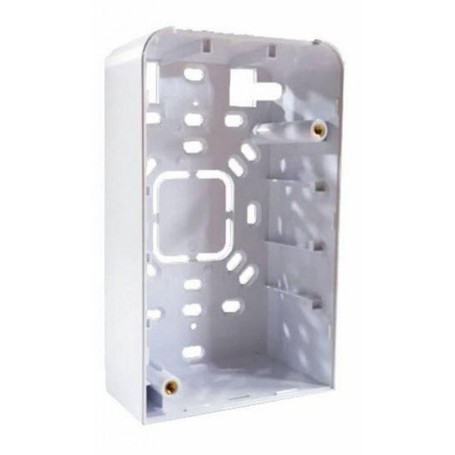

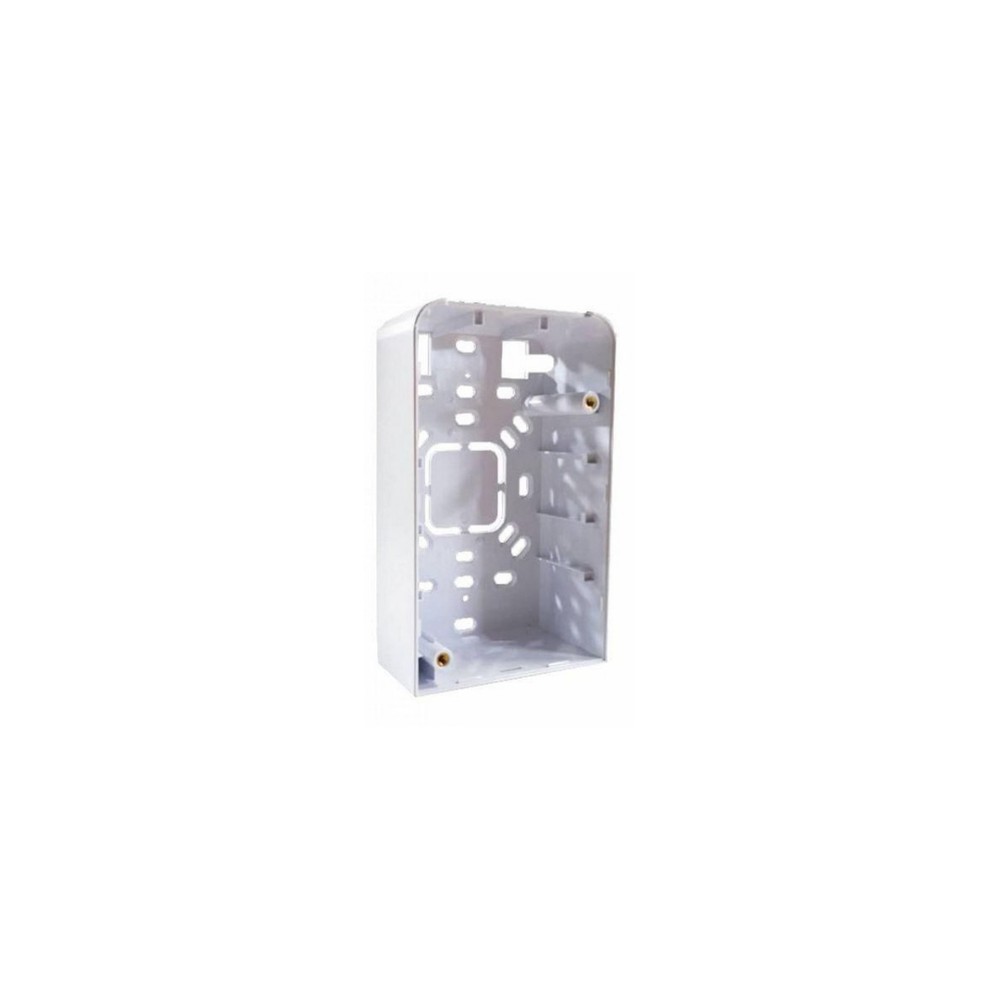

The Ubiquiti UAP-IW-HD-JB-25 is a 25-pack of multi-fit in-wall junction boxes designed for installation of the UniFi In-Wall HD access point. The junction boxes provide a recessed mounting enclosure within a finished wall and are intended to be installed before mounting the access point.
The boxes are designed around the UAP-IW-HD form factor and provide an organized space for the access point and associated Ethernet cabling inside the wall cavity.
Installation and Compatibility
The UAP-IW-HD-JB is intended for the Ubiquiti UAP-IW-HD UniFi In-Wall HD access point. The access point itself is installed into the junction box after the box has been positioned within the wall.
The junction box is a passive mounting component and does not provide network connectivity or power. The UAP-IW-HD receives its network connection and PoE power through its Ethernet connection.
Key Features
- 25 junction boxes included
- Designed specifically for the Ubiquiti UAP-IW-HD In-Wall HD access point
- Flush-mount in-wall installation design
- Plastic construction with brass threaded inserts
- White finish for concealed in-wall installation
Applications
The UAP-IW-HD-JB-25 is suited to projects installing multiple UniFi In-Wall HD access points in finished walls. The junction boxes provide a dedicated mounting location for hospitality rooms, offices, residential spaces, and other installations using the UAP-IW-HD.
DC Supplies Product Note
Plan the junction-box position before finishing the wall because the UAP-IW-HD is designed to mount within the box. Allow sufficient internal cable space for the Ethernet connection so the cable does not interfere with the access point during installation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UAP-IW-HD-JB-25 |
|---|
| Product Type | In-wall junction box |
|---|
| Compatibility | Ubiquiti UAP-IW-HD UniFi In-Wall HD |
|---|
| Quantity | 25 junction boxes |
|---|
| Mounting Type | Flush in-wall |
|---|
| Material | Plastic with brass threaded inserts |
|---|
| Color | White |
|---|
| Dimensions | 5.51 × 3.54 × 1.97 in |
|---|
| Listed 25-Pack Weight | 4.30 lb |
|---|
| Power | None; passive mounting component |
|---|
FAQs
What access point is the UAP-IW-HD-JB-25 designed for?
It is designed for the Ubiquiti UAP-IW-HD UniFi In-Wall HD access point.
How many junction boxes are included?
The UAP-IW-HD-JB-25 contains 25 in-wall junction boxes.
Is the UAP-IW-HD access point included?
No. The UAP-IW-HD-JB-25 is a mounting accessory; the UAP-IW-HD access point is sold separately.
Does the junction box provide power or networking?
No. It is a passive mounting enclosure. The UAP-IW-HD receives Ethernet connectivity and PoE power through its own network connection.
