Detailed Specifications

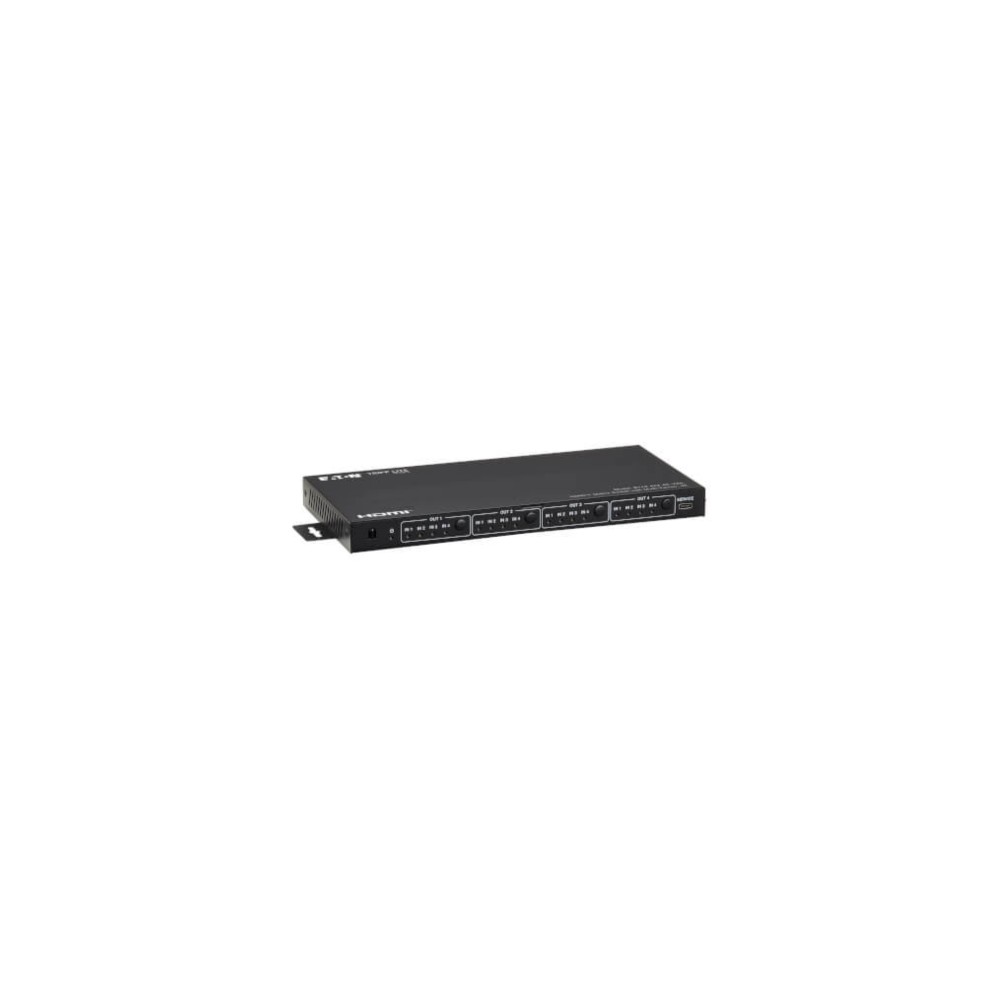

Eaton B119-4X4-4K-VWL Tripp Lite 4K HDMI Matrix Switch video wall controller
Overview
The Eaton B119-4X4-4K-VWL is a professional HDMI 4×4 matrix switch with integrated video wall processing designed for AV distribution, control rooms, digital signage, and multi-display visualization systems.
It supports routing of four HDMI sources to four independent displays with flexible configuration modes, including standard matrix switching and video wall layouts. The integrated video wall engine enables synchronized multi-screen output for tiled display systems used in surveillance, command centers, and enterprise AV environments.
The unit supports up to 4K UHD resolution (up to 4K @ 30 Hz depending on mode) with HDR and advanced chroma processing, ensuring compatibility with modern AV sources and professional display systems. It includes EDID management and HDCP support for stable signal negotiation across mixed display environments.
Control is provided through front-panel buttons, IR remote, and RS-232 serial interface, allowing integration into automated AV control systems. The device is designed for plug-and-play deployment without requiring external processing software.
This model is not intended for IP-based AV-over-IP distribution or high-frame-rate 4K60 video wall processing systems.
Key Features
- 4×4 HDMI matrix switching with video wall mode
- Integrated multi-display video wall processing engine
- Supports up to 4K UHD (4K @ 30 Hz class operation)
- EDID management and HDCP compatibility support
- IR, RS-232, and front-panel control options
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B119-4X4-4K-VWL |
| Product Type | HDMI Matrix Switch / Video Wall Controller |
| Input Ports | 4 × HDMI |
| Output Ports | 4 × HDMI |
| Max Resolution | Up to 3840 × 2160 (4K UHD) |
| Video Modes | Matrix switching + video wall layouts |
| Control Interfaces | IR, RS-232, Front Panel |
| EDID Management | Supported |
| HDCP Support | Yes |
| Chroma Support | 4:4:4 / 4:2:2 / 4:2:0 |
| Audio Support | Multi-channel HDMI audio formats |
| Power Input | External AC adapter |
| Mounting Type | Rack/desktop (kit dependent) |
| Housing | Metal enclosure |
| Operating Temperature | 0°C to 40°C |
