Detailed Specifications

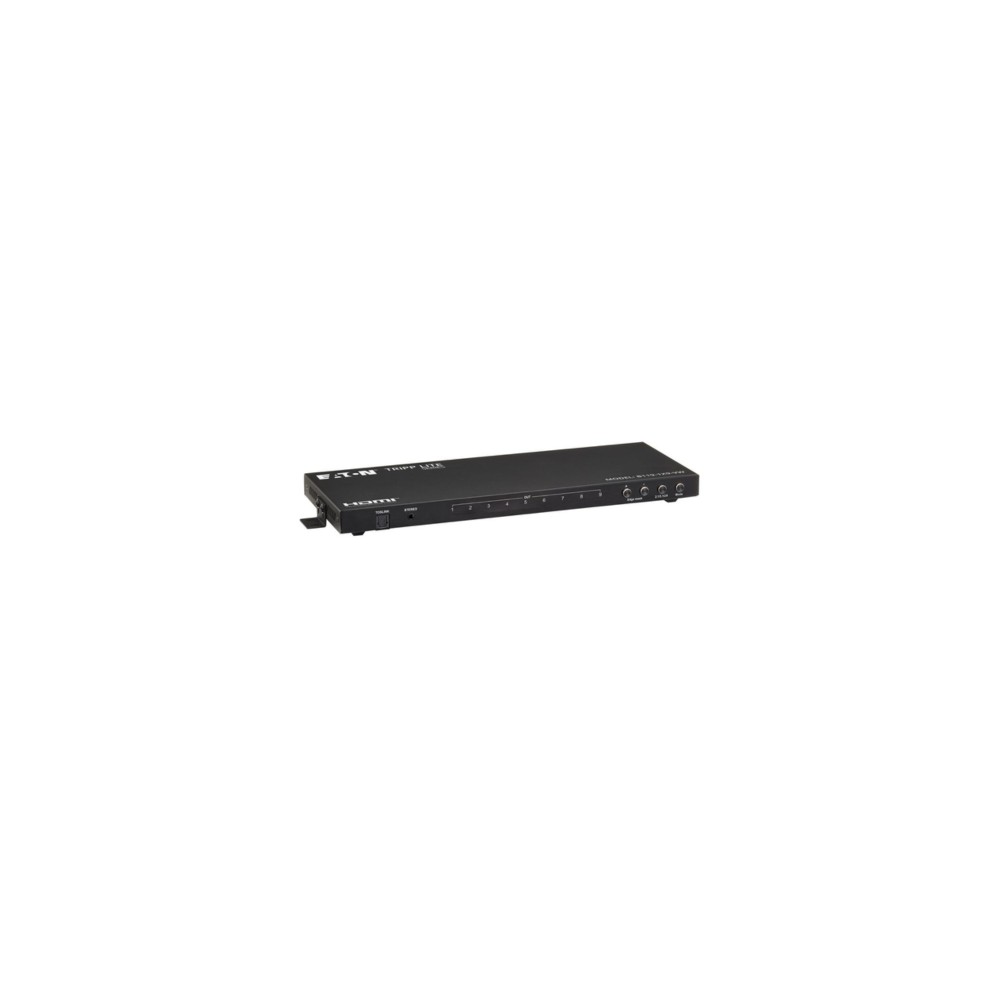

Eaton B119-1X9-VW Tripp Lite HDMI Video Wall Controller
Overview
The Eaton B119-1X9-VW is a professional HDMI video wall controller designed for AV distribution systems requiring multi-display synchronization across digital signage, control rooms, retail environments, and surveillance monitoring setups.
It takes a single HDMI input (up to 4K at 30 Hz) and distributes it across nine HDMI outputs, enabling multiple video wall configurations such as 3×3, 2×4, 4×2, and other split layouts. Each output delivers 1080p resolution at 60 Hz, optimized for synchronized multi-screen rendering.
The unit supports EDID management, HDCP 1.3/1.4, and flexible scaling modes to ensure compatibility between mixed display environments. It is commonly deployed in environments where a single high-resolution source must be split across multiple displays without external scaling hardware.
Control options include front-panel buttons, IR remote control, and RS-232 integration for automated AV system control. The system is plug-and-play with no software installation required, making it suitable for rapid deployment in commercial AV infrastructures.
This model is not intended for native 4K multi-output rendering, high-frame-rate gaming distribution, or enterprise IP-based video distribution systems.
Key Features
- 1× HDMI input routed to 9× HDMI outputs
- Supports multiple video wall configurations up to 3×3
- 4K 30 Hz input with 1080p 60 Hz output scaling
- EDID management and HDCP 1.3/1.4 support
- IR, RS-232, and front-panel control options
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B119-1X9-VW |
| Product Type | HDMI Video Wall Controller |
| Input Ports | 1 × HDMI |
| Output Ports | 9 × HDMI |
| Input Resolution | Up to 3840 × 2160 @ 30 Hz |
| Output Resolution | 1920 × 1080 @ 60 Hz |
| Video Wall Modes | 13 configurations (e.g., 3×3, 2×4) |
| Control Interfaces | IR remote, RS-232, front panel |
| HDCP Support | 1.3 / 1.4 |
| Color Depth | 12-bit |
| Chroma Subsampling | 4:4:4 / 4:2:2 / 4:2:0 |
| Power Input | External AC adapter |
| Mounting Type | Wall mount / rack-compatible hardware |
| Operating Temperature | 0°C to 40°C |
| Housing | Metal enclosure |
