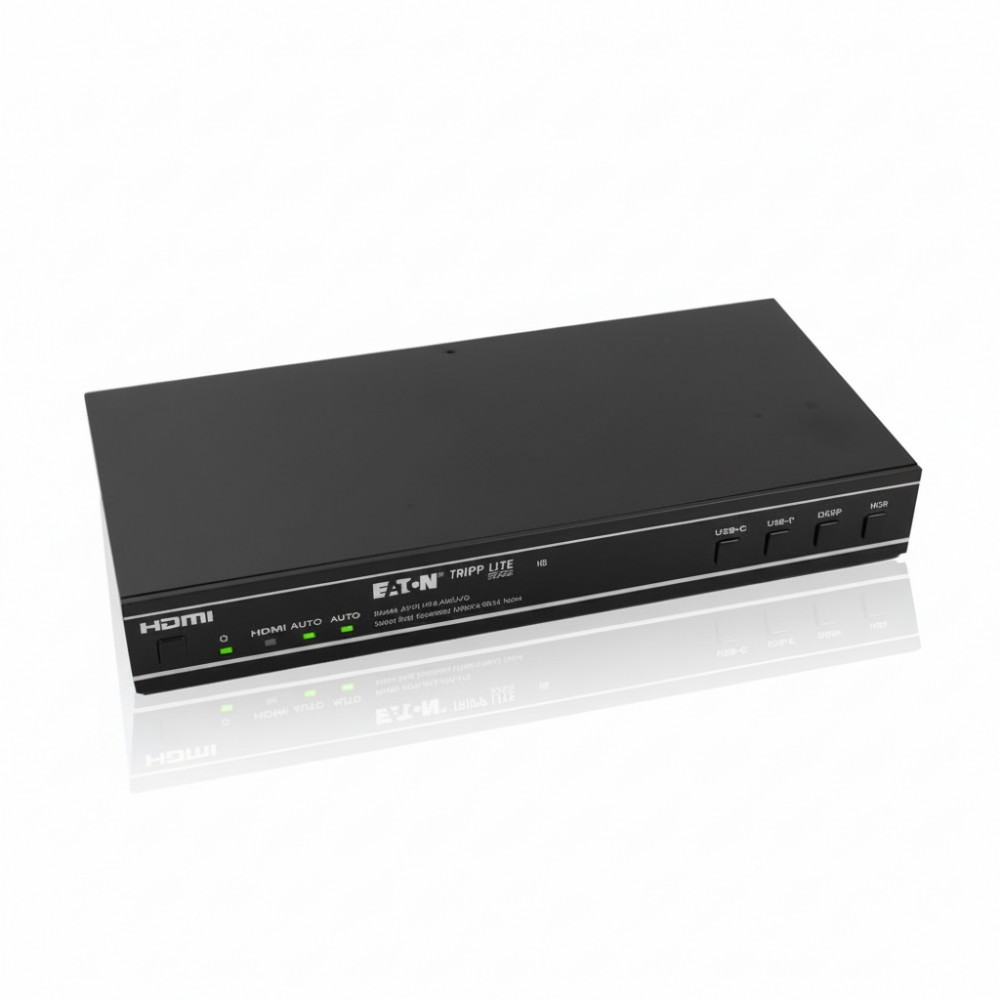

Eaton B119-1X4-4K6-VW 1×4 4K60 HDR Video Wall Controller
Overview :
The Eaton B119-1X4-4K6-VW is a 1×4 video wall controller that captures, converts, routes and distributes high-resolution video from a single source to a multi-display wall. AV integrators, control room specialists, and systems engineers deploy it where a single 4K source must be split and configured across multiple displays in structured visualization environments. It solves the challenge of synchronizing and scaling UHD content reliably across up to four outputs.
From a technical deployment perspective, the unit accepts either an HDMI or a USB-C video input at resolutions up to 3840×2160 @ 60 Hz 4:4:4 with HDR support and 12-bit color depth. It then provides four independent HDMI outputs that support a range of display resolutions and multiple video wall splicing configurations. It includes front-panel controls, an IR remote, and RS-232 command support for flexible operation.
This controller is suited for command centers, digital signage walls, retail video walls, and collaboration spaces where full UHD content distribution and flexibility in layout are required. Its compact metal housing allows wall, desktop, or 19-inch rack integration depending on deployment constraints.
Integration with display ecosystems is straightforward: connect a 4K source device via HDMI or USB-C and attach up to four HDMI displays with appropriate HDMI cables. The controller supports EDID management and HDCP 2.2, ensuring compatibility with modern displays and content sources.
A practical deployment includes feeding a single conferencing PC or media server into the controller, then configuring a 2×2 video wall layout across four UHD panels in a foyer or control room. The plug-and-play nature plus IR/RS-232 control methods simplify commissioning and day-to-day operation.
This device should not be used where pixel-perfect synchronization across matched large displays is critical without calibration tools, nor in environments requiring integrated power distribution or network-based video distribution (e.g., AV over IP). Its role is signal distribution and layout, not professional color calibration or scaling server replacement.
Key Features
Accepts HDMI or USB-C input up to 4K @ 60 Hz
Four HDMI outputs with independent wall layouts
HDR and 4:4:4 chroma for full-color fidelity
Control via front buttons, IR remote, RS-232
Metal housing with rack and wall mounting options
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B119-1X4-4K6-VW |
| Product Type | 1×4 Video Wall Controller |
| Input Ports | 1 × HDMI Type-A, 1 × USB-C |
| Output Ports | 4 × HDMI Type-A |
| Max Resolution | Up to 3840×2160 @ 60 Hz 4:4:4 |
| HDR Support | Yes |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, DTS |
| Control | Front panel, IR remote, RS-232 |
| Power Supply | AC 100-240 V → DC 12 V 1 A |
| Power Consumption | ~5.5 W |
| Housing | Metal |
| Mounting Options | Desktop, Wall, 19″ Rack |
| Dimensions (H×W×D) | ~1.2 × 8.7 × 3.9 in |
| Weight | ~1.3 lb |
| Operating Temp | 0° to 40 °C |
| Storage Temp | -20° to 60 °C |
| Compliance | CE, FCC, RoHS |
