Detailed Specifications

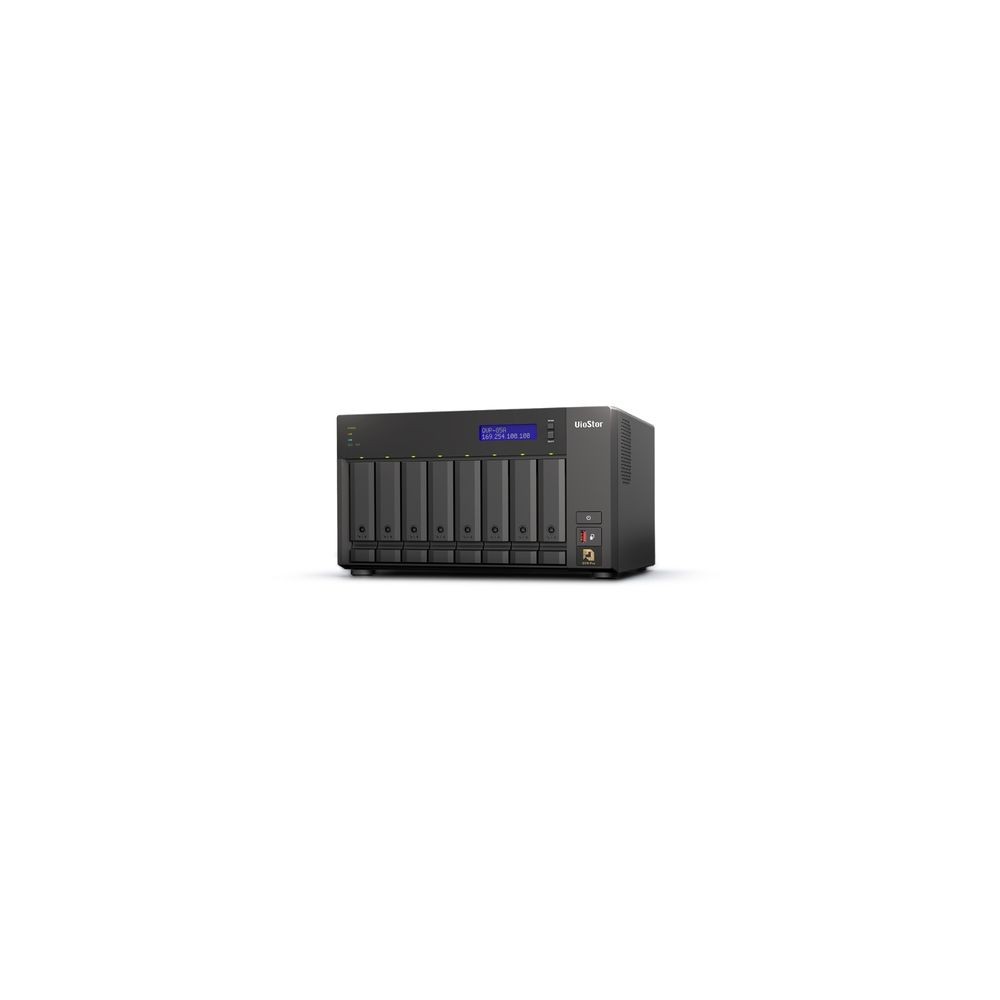

QNAP QVP-85B-US - Network Video Recorder
Overview :
The QNAP QVP-85B-US is a high-performance network video recorder (NVR) designed for large-scale IP surveillance environments. It combines high-capacity storage with powerful hardware-accelerated video decoding to support real-time monitoring and recording from multiple high-definition IP cameras simultaneously.
Powered by an Intel Core processor, the QVP-85B-US features 8 drive bays for high-density storage of high-resolution video footage. It is engineered for enterprise-grade security deployments, such as corporate offices, retail complexes, and industrial sites, providing a dedicated and reliable surveillance platform that operates independently of general-purpose servers.
Deployment is straightforward in standard server rack or desktop environments, offering high-speed 10GbE and 2.5GbE connectivity to handle the substantial bandwidth required by multiple 4K camera streams. The system includes HDMI output for direct local monitoring, eliminating the need for a separate PC workstation for live viewing.
This NVR is optimized for QNAP's QVR Pro or QVP surveillance software. It should not be used as a primary general-purpose NAS if maximum surveillance performance is required. Ensure camera compatibility via the official QNAP supported IP camera list before deployment.
Key Features :
Intel Core processor provides high-speed video decoding and analysis
8-bay storage supports high-capacity retention for 4K video feeds
Integrated 10GbE and 2.5GbE ports handle high-bandwidth camera traffic
Dual HDMI output allows for direct 4K local monitoring without a PC
Dedicated QVP surveillance OS ensures optimized recording stability
Specifications :
| Attribute | Details |
| Brand | QNAP |
| Part Number | QVP-85B-US |
| Product Type | Network Video Recorder (NVR) |
| Drive Bays | 8 x 3.5-inch SATA 6Gb/s |
| Processor | Intel Core i5 Hexa-core |
| Memory | 16GB DDR4 (Expandable to 64GB) |
| Network Interfaces | 2 x 2.5GbE, 1 x 10GbE SFP+ |
| Video Output | 2 x HDMI 2.0 (up to 4K resolution) |
| USB Ports | 3 x USB 3.2 Gen 2 (10Gbps) |
| PCIe Slots | 2 x PCIe Gen 3 slots |
| Power Supply | 250W Single PSU |
| Max IP Camera Support | Up to 128 channels (license dependent) |
