Overview

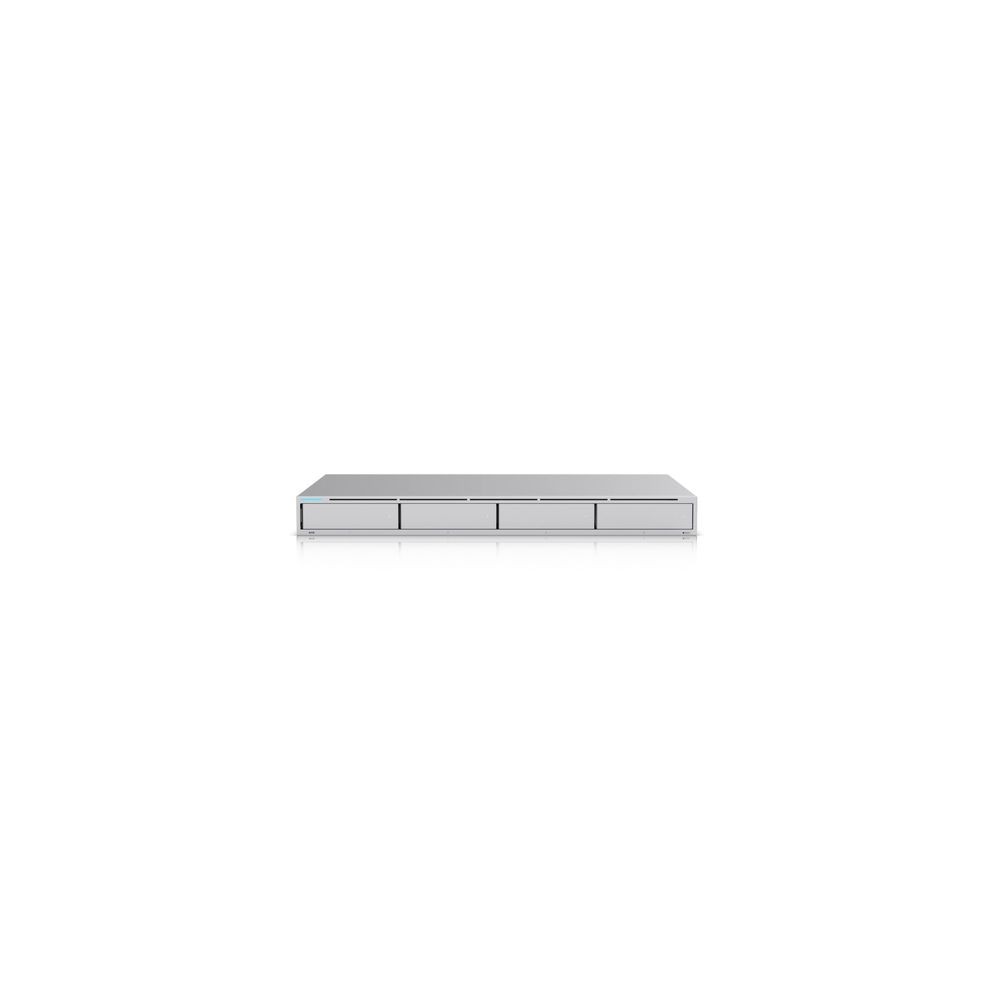

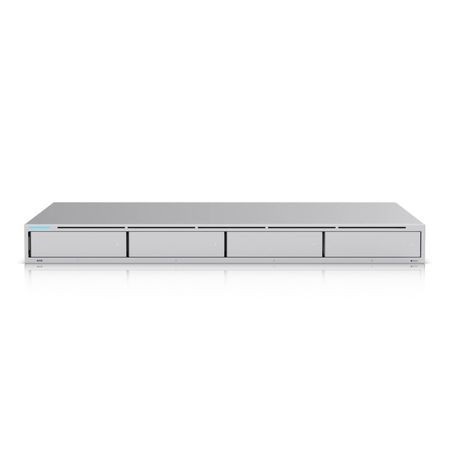

The Ubiquiti UNVR is a 1U rack-mounted network video recorder designed to provide centralized local storage and management for UniFi Protect surveillance deployments. It provides four 2.5/3.5-inch drive bays, dedicated UniFi Protect processing, and high-speed network connectivity through 10G SFP+ and Gigabit Ethernet interfaces.
Storage and Surveillance
The UNVR supports up to four 2.5/3.5-inch HDD or SSD drives with a maximum drive power budget of 75W. Ubiquiti specifies support for up to 60 HD cameras, 30 2K cameras, or 18 4K cameras, depending on the deployed camera resolution and system configuration.
Networking and Management
Network connectivity includes one 10G SFP+ port and one Gigabit Ethernet RJ45 port. The recorder runs UniFi Protect and can also support UniFi Access and UniFi Connect management applications.
Processing and Power
The UNVR uses a quad-core ARM Cortex-A57 processor operating at 1.7 GHz with 4 GB of memory. Maximum system power consumption is 100W, with an internal 120W AC/DC power supply. It supports universal 100–240V AC input and a USP-RPS DC input for power redundancy.
Key Features
- Four 2.5/3.5-inch HDD or SSD drive bays
- 1U rack-mounted form factor
- 10G SFP+ and Gigabit Ethernet connectivity
- UniFi Protect, UniFi Access, and UniFi Connect support
- USP-RPS DC input for power redundancy
Applications
The UNVR is intended for centralized video recording and surveillance storage in UniFi Protect deployments, including offices, commercial facilities, campuses, and other networked security environments requiring rack-mounted storage.
DC Supplies Product Note
The UNVR provides four drive bays, allowing storage capacity and data-protection configuration to be selected according to the surveillance retention requirements of the deployment.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UNVR |
|---|
| Product Type | Network Video Recorder |
|---|
| Product Line | UniFi Protect |
|---|
| Form Factor | 1U Rack Mount |
|---|
| Managed Cameras | 60 HD / 30 2K / 18 4K |
|---|
| Drive Bays | 4 |
|---|
| Supported Drives | 2.5/3.5-inch HDD or SSD |
|---|
| Maximum Drive Power Budget | 75W |
|---|
| Networking Interfaces | 1 × 10G SFP+, 1 × Gigabit Ethernet RJ45 |
|---|
| Processor | Quad-core ARM Cortex-A57, 1.7 GHz |
|---|
| Memory | 4 GB |
|---|
| Management Applications | UniFi Protect, UniFi Access, UniFi Connect |
|---|
| AC Input | 100–240V AC, 2A maximum, 50/60 Hz |
|---|
| DC Input | USP-RPS, 11.5V DC, 10.43A |
|---|
| Power Supply | Internal 120W AC/DC |
|---|
| Maximum Power Consumption | 100W |
|---|
| Enclosure Material | SGCC steel |
|---|
| Operating Temperature | -5°C to 40°C |
|---|
| Operating Humidity | 5–95% noncondensing |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
How many drives can the UNVR hold?
The UNVR has four drive bays supporting 2.5-inch and 3.5-inch HDD or SSD storage.
How many cameras can the UNVR manage?
Ubiquiti specifies up to 60 HD cameras, 30 2K cameras, or 18 4K cameras.
Does the UNVR support 10G networking?
Yes. It provides one 10G SFP+ interface along with one Gigabit Ethernet RJ45 interface.
What software does the UNVR run?
The recorder runs UniFi Protect and supports UniFi Access and UniFi Connect management applications.
Does the UNVR support redundant power?
Yes. It has a USP-RPS DC input in addition to its universal AC input.
