Overview
The Ubiquiti UNVR-INSTANT-KIT-US is a compact UniFi Protect video surveillance kit combining a UniFi Network Video Recorder Instant with four G5 Turret Ultra cameras and a 1TB hard disk drive. The system provides an integrated recording and camera deployment package for UniFi Protect installations.
The NVR provides six Gigabit Ethernet PoE ports for directly connecting compatible PoE cameras, a separate Gigabit Ethernet uplink, and an HDMI viewport output. The installed 1TB HDD provides local video storage, while the included G5 Turret Ultra cameras provide 4MP video recording with infrared night vision and AI-based detection of people, vehicles, and animals.
Network Video Recorder
The UniFi Network Video Recorder Instant provides six 10/100/1000 Mbps PoE Ethernet downlink ports and one additional Gigabit Ethernet uplink port. Its integrated PoE power budget is 40W, with up to 15.4W available per PoE port according to the manufacturer's specifications.
The NVR supports up to 15 HD cameras, 8 2K cameras, or 6 4K cameras. It includes one 3.5-inch SATA drive bay and is supplied in this kit with a 1TB HDD. The recorder also provides an HDMI viewport output and a 1.14-inch integrated display.

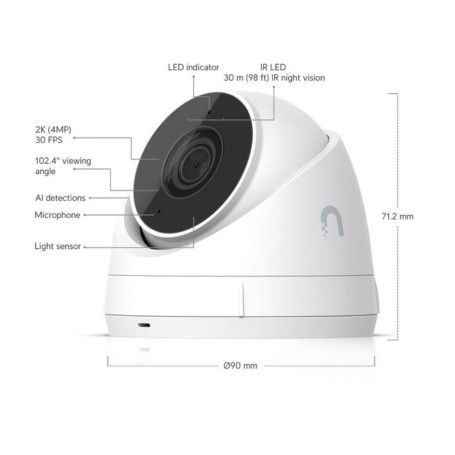

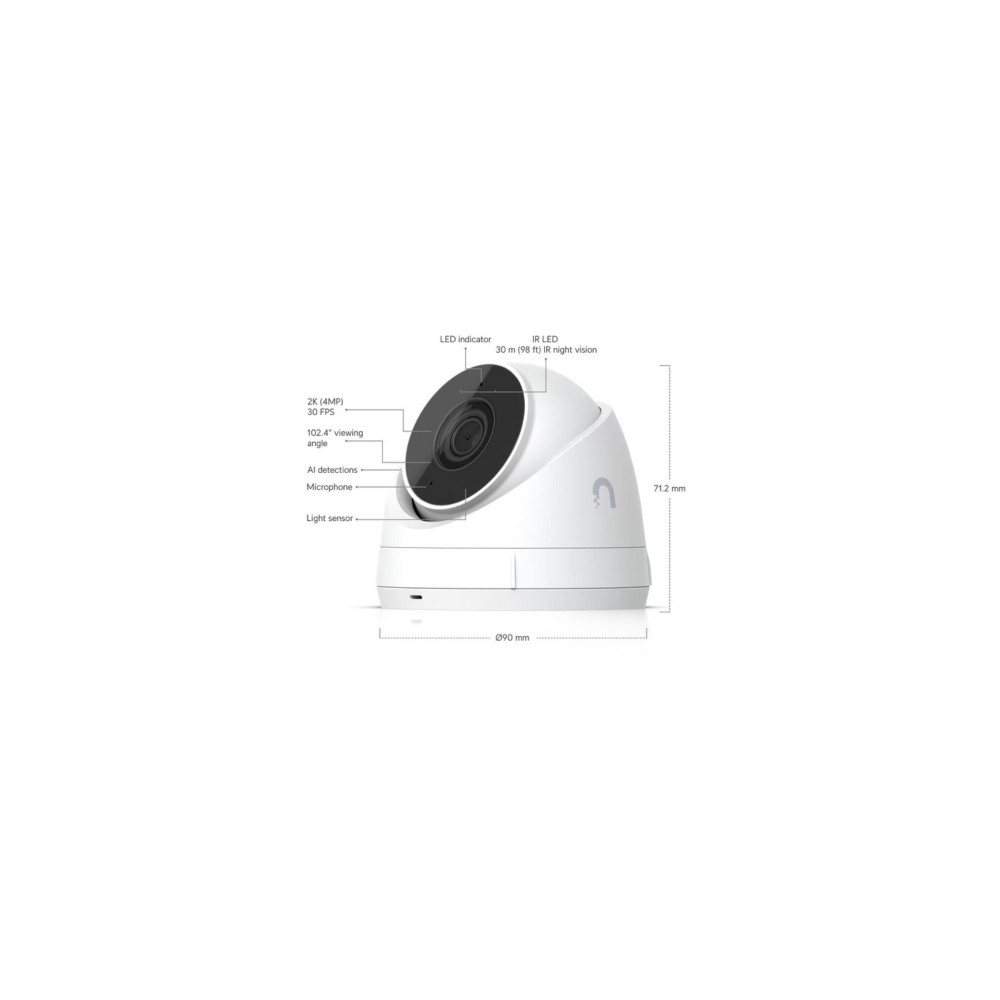

Included G5 Turret Ultra Cameras
The kit includes four G5 Turret Ultra cameras. Each camera uses a 4MP sensor with a maximum resolution of 2688 x 1512 and supports up to 30 frames per second. The cameras provide a 102.4° horizontal, 54.9° vertical, and 120.6° diagonal field of view.
For nighttime monitoring, the cameras provide integrated infrared illumination with a specified night-vision range of up to 30 m (98 ft). Smart detections identify people, vehicles, and animals. Each camera includes a microphone and uses a 10/100 Mbps Ethernet interface with PoE power.
Storage
The included 3.5-inch 1TB HDD provides local storage for the UniFi Protect recording system. The NVR supports one 3.5-inch internal drive, with a maximum specified drive power budget of 11W.
Deployment and Connectivity
The NVR uses universal AC power and provides PoE connectivity for compatible cameras. Its Gigabit Ethernet uplink connects the recorder to the network, while the six PoE downlink ports can provide both network connectivity and power to directly connected cameras.
Ubiquiti specifies that the Network Video Recorder Instant requires a connection to a Gateway or Layer 3 switch. The kit is therefore intended to be deployed as part of a network infrastructure rather than as a standalone network gateway.
Key Features
- Compact UniFi Protect NVR supplied with four G5 Turret Ultra cameras
- 1TB 3.5-inch HDD included for local video storage
- Six Gigabit PoE camera ports with a 40W total PoE budget
- Four included 4MP G5 Turret Ultra cameras with 30 m infrared night vision
- HDMI viewport for local video display and monitoring
Applications
The UNVR-INSTANT-KIT-US can be deployed for small surveillance installations requiring a combined recorder, storage, and camera package. The four included turret cameras can be positioned across entry points, indoor areas, exterior locations, or other monitored zones within the limits of their installation environment and network coverage.
DC Supplies Product Note
The four included cameras can be connected directly to the NVR's PoE ports, but the recorder's total PoE budget is 40W. Each G5 Turret Ultra has a maximum power consumption of 4W, so the four cameras have a combined specified maximum consumption of 16W before accounting for other PoE-connected devices. The remaining PoE capacity can be relevant when planning additional compatible PoE devices.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UNVR-INSTANT-KIT-US |
| Product Type | UniFi Protect Network Video Recorder Kit |
| Included NVR | UniFi Network Video Recorder Instant |
| Included Cameras | 4 x G5 Turret Ultra |
| Included Storage | 1TB 3.5-inch HDD |
| UniFi Application Suite | Protect |
| Managed Cameras | 15 HD / 8 2K / 6 4K |
| Storage Drive Bay | 1 x 3.5-inch SATA |
| Uplink Interface | 1 x Gigabit Ethernet RJ45 |
| PoE Downlink Ports | 6 x Gigabit Ethernet RJ45 PoE |
| PoE Budget | 40W |
| Maximum PoE per Port | 15.4W |
| HDMI | 1 x HDMI viewport output |
| Processor | Quad-core ARM Cortex-A55, up to 1.7 GHz |
| Memory | 4GB |
| Power Input | 100-240VAC, 50/60 Hz, 1.5A maximum |
| Power Supply | Internal AC/DC, 60W |
| Maximum Device Power Consumption | 9W, excluding PoE output and HDD power consumption |
| NVR Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9 in) |
| NVR Weight | 1.04 kg (2.3 lb) |
| NVR Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| NVR Operating Humidity | 5% to 95% non-condensing |
| G5 Turret Ultra Resolution | 4MP, 2688 x 1512 |
| G5 Turret Ultra Maximum Frame Rate | 30 FPS |
| G5 Turret Ultra Field of View | 102.4° horizontal / 54.9° vertical / 120.6° diagonal |
| G5 Turret Ultra Night Vision | Up to 30 m (98 ft) |
| G5 Turret Ultra Smart Detections | People, vehicles, animals |
| G5 Turret Ultra Network Interface | 10/100 Mbps RJ45 |
| G5 Turret Ultra Maximum Power Consumption | 4W per camera |
| G5 Turret Ultra Weather Resistance | IP66 |
FAQs
What is included in the UNVR-INSTANT-KIT-US?
The kit includes one UniFi Network Video Recorder Instant, four G5 Turret Ultra cameras, and one 1TB HDD. The manufacturer also specifies the associated mounting hardware and accessories as part of the kit package.
How many cameras are included?
Four G5 Turret Ultra cameras are included.
How much storage is included?
The kit includes a 1TB 3.5-inch hard disk drive installed for video storage.
Can the included cameras connect directly to the NVR?
Yes. The NVR provides six Gigabit Ethernet PoE downlink ports for compatible PoE devices, allowing the included cameras to receive network connectivity and power through the NVR.
What is the NVR's PoE power budget?
The NVR provides a total 40W PoE budget with up to 15.4W available per PoE port.
Does the kit require a network gateway?
Ubiquiti specifies that the Network Video Recorder Instant requires connection to a Gateway or Layer 3 switch. The NVR provides the recording and PoE camera connectivity functions but is not itself the network gateway.
