Detailed Specifications

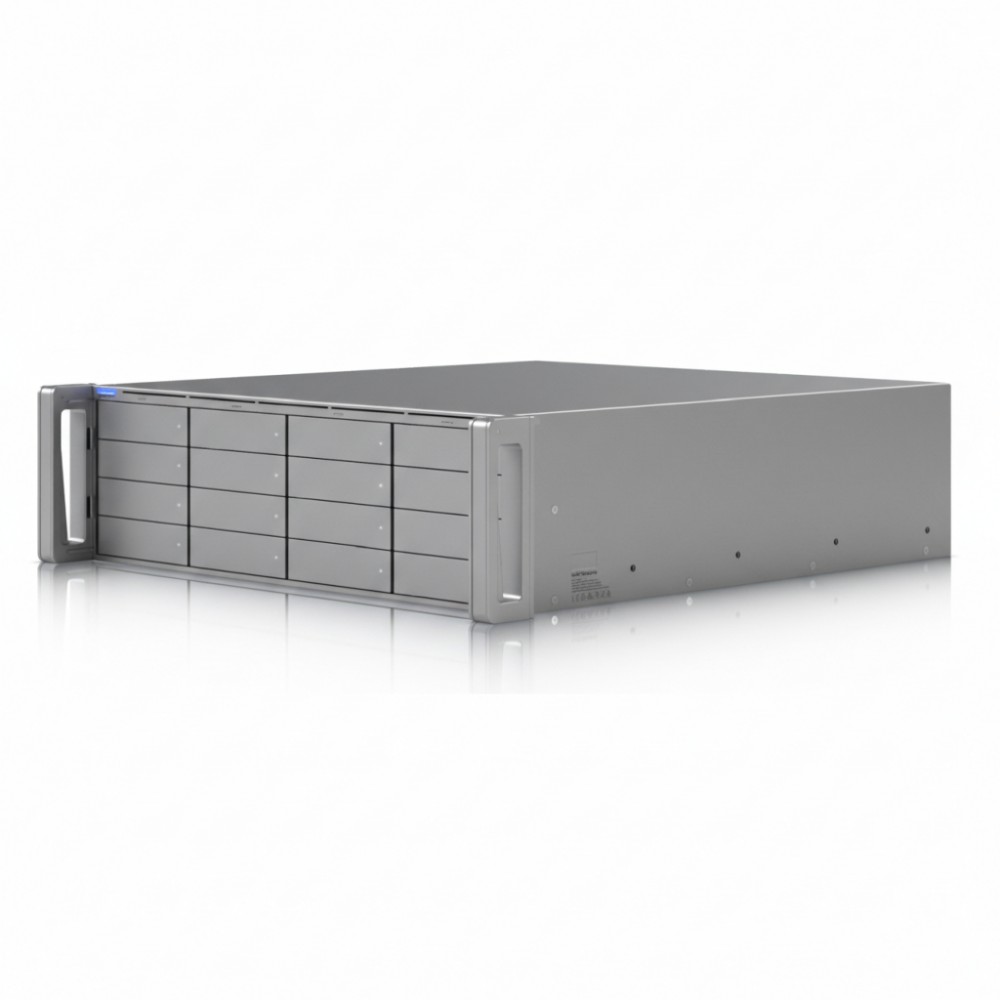

Ubiquiti ENVR Enterprise Network Video Recorder
Overview :
The ENVR is an enterprise-class network video recorder for large-scale UniFi Protect surveillance deployments. It consolidates video streams from cameras and stores them centrally with support for RAID-protected storage. The recorder fits a standard 3U rack and scales to hundreds of cameras and multiple access-control devices. It integrates with UniFi Protect and UniFi Access for unified site security management.
Key Features :
Supports up to 70 4K or 210 FHD cameras
16x hot-swappable 2.5″/3.5″ drive bays
2x 10G SFP+ + 1x 10 GbE networking
Redundant hot-swap power supplies
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Ubiquiti |
| Part Number | ENVR |
| Product Type | Enterprise Network Video Recorder |
| Rack Form Factor | 3U |
| Camera Support | Up to 70 4K / 140 2K / 210 FHD |
| Drive Bays | 16× 2.5″/3.5″ HDD/SSD (hot-swappable) |
| RAID Support | Yes |
| Network Interfaces | 2× 10G SFP+, 1× 10 GbE RJ45 |
| Processor | 8-core ARM at ~2.5 GHz |
| Memory | 32 GB |
| Power Supplies | 2× 550 W CRPS (redundant, hot-swappable) |
| Max Power Consumption | ~410 W |
| Max Drive Power Budget | ~310 W |
| Dimensions (W×D×H) | 481.4 × 480 × 132 mm |
| Weight (no rails) | ~16.6 kg |
| Operating Temp | −5 °C to 40 °C |
| Humidity | 5 %-95 % non-condensing |
| Certifications | CE, FCC, IC |
| UniFi Integrations | Protect, Access |
