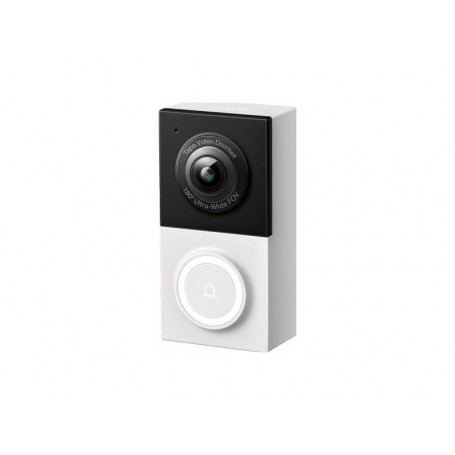

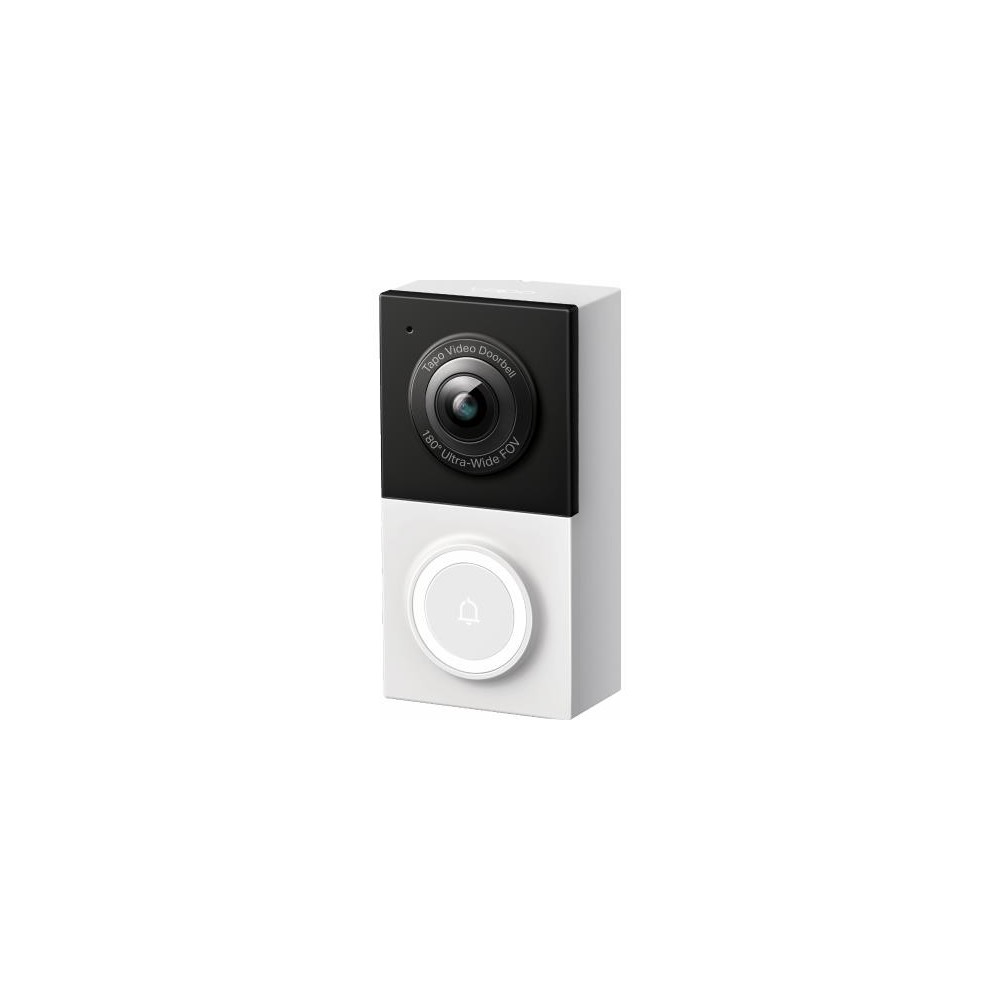

TP-Link Tapo D130 Smart Wired Video Doorbell
The TP-Link Tapo D130 is a smart wired video doorbell with 2K 5MP video, an ultra-wide 180° diagonal field of view and head-to-toe 4:3 viewing. It supports color night vision, two-way audio, AI-based detection and local microSD storage.
Key Features
- 2K 5MP video resolution at 2560 × 1920 pixels
- 180° diagonal field of view with 4:3 head-to-toe viewing
- Color night vision with built-in spotlight and 850 nm IR LED
- Person, pet, vehicle and package detection
- IP65 weather-resistant enclosure for outdoor installation
Video and Audio
The D130 uses a 1/2.7-inch progressive-scan CMOS sensor and a 1.18 mm F1.8 lens. It provides 180° diagonal, 172° horizontal and 144° vertical viewing angles. Video is encoded using H.264 and supports up to 30 fps. Built-in microphone and speaker provide two-way audio with noise cancellation.
Storage and Connectivity
The doorbell supports local microSD storage up to 512 GB and Tapo Care cloud storage with a subscription. Network connectivity is provided through 2.4 GHz Wi-Fi, with support for RTSP streaming.
Detection and Smart Features
The D130 supports motion, line-crossing and tamper detection along with person, pet, vehicle and package detection. Activity zones can be configured to focus monitoring on selected areas.
Installation and Compatibility
The D130 is hardwired and supports an input of 8–24 VAC with a minimum 10 VA requirement. It integrates with the Tapo app and supports Amazon Alexa and Google Assistant. The package includes an indoor chime and mounting hardware.
DC Supplies Product Note
Confirm that the existing doorbell wiring provides the required 8–24 VAC input and at least 10 VA before installation. The D130 is a hardwired doorbell and is not designed for battery-only operation.
Specifications
| Brand | TP-Link |
|---|
| Part Number / MPN | Tapo D130 |
|---|
| Product Type | Smart Wired Video Doorbell |
|---|
| Image Sensor | 1/2.7-inch Progressive Scan CMOS |
|---|
| Maximum Resolution | 2K 5MP, 2560 × 1920 |
|---|
| Field of View | 180° diagonal, 172° horizontal, 144° vertical |
|---|
| Lens | 1.18 mm, F1.8 |
|---|
| Night Vision | 850 nm IR LED, up to 30 ft / 10 m |
|---|
| Video Compression | H.264 |
|---|
| Digital Zoom | 16x |
|---|
| Wi-Fi | IEEE 802.11b/g/n, 2.4 GHz |
|---|
| Storage | microSD up to 512 GB |
|---|
| Detection | Motion, line-crossing, tamper, person, pet, vehicle and package |
|---|
| Audio | Two-way audio with noise cancellation |
|---|
| Power | Hardwired, 8–24 VAC, 10 VA minimum |
|---|
| Weather Resistance | IP65 |
|---|
| Operating Temperature | -20°C to 45°C |
|---|
| Operating Humidity | 10%–90% RH, non-condensing |
|---|
| Smart Integration | Google Assistant, Amazon Alexa |
|---|
| RTSP | Yes |
|---|
Frequently Asked Questions
What resolution does the Tapo D130 support?
The Tapo D130 supports 2K 5MP resolution at 2560 × 1920 pixels.
Does the Tapo D130 support night vision?
Yes. It uses an 850 nm IR LED and built-in spotlight for night viewing, including color night vision.
Does the Tapo D130 require wiring?
Yes. The D130 is a hardwired doorbell requiring 8–24 VAC input with a minimum 10 VA rating.
What storage does the Tapo D130 support?
It supports a microSD card up to 512 GB. Tapo Care cloud storage is also available through a subscription.
