Detailed Specifications

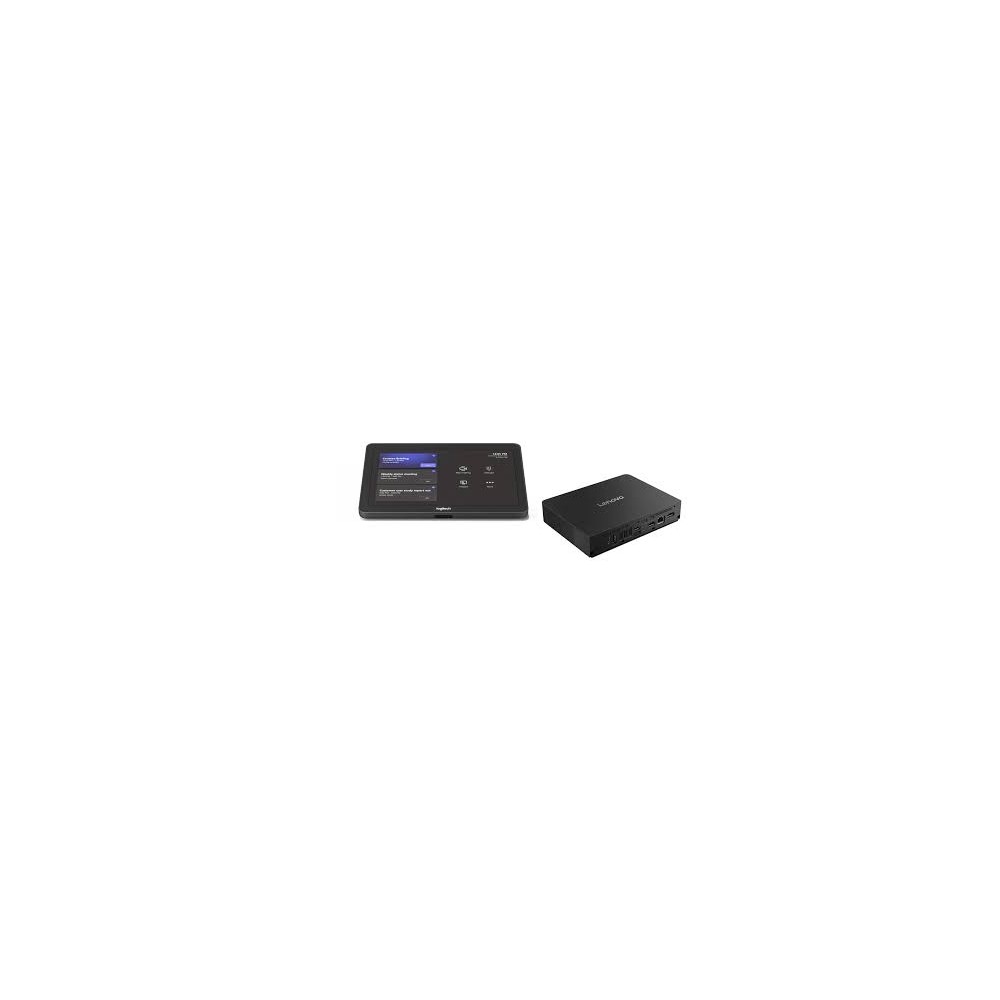

Logitech TAPZOMBASEDEL2 - Video Conferencing System
Overview
The Logitech TAPZOMBASEDEL2 is an enterprise-grade pre-configured video conferencing room kit engineered specifically for native Zoom Rooms infrastructure. This hardware bundle solves the problem of complex multi-component room provisioning by combining a dedicated enterprise compute layer with a professional touch control interface. It is designed to act as the central management stack for corporate meeting rooms, boardrooms, and training spaces.
Technically optimized for high-availability conference environments, the bundle features a Logitech Tap touch controller coupled with a commercial-grade Dell OptiPlex Micro PC pre-installed with the Zoom Rooms digital appliance layer. The Dell compute engine provides dedicated processing bandwidth, dual-display output pathways, and hardwired network reliability. The Logitech Tap controller utilizes a 10.1-inch screen with an anti-glare coating and a high-retention internal cable strain relief mechanism to prevent accidental disconnection.
Deployment protocols focus on centralized enterprise management, structured data center infrastructure closets, and clean corporate meeting room installations. The system routes all primary communication lines through a secure, high-speed USB interface layer. Network monitoring and firmware provisioning are managed remotely via the Logitech Sync platform API and Zoom's centralized administration portal.
Compatibility is natively locked to the Zoom Rooms ecosystem software layer, running directly on the enterprise Windows IoT enterprise operating system layer of the Dell compute unit. This system does not include a native camera or audio peripherals; it must be paired with compatible Logitech conference cameras (such as Rally or MeetUp) to complete the physical AV deployment. It should not be deployed as a standalone BYOD system without a network-connected Zoom Rooms account infrastructure.
Key Features
Dedicated Dell OptiPlex Micro PC provides stable Zoom Rooms appliance execution.
Logitech Tap controller delivers 10.1-inch responsive touch control tracking.
Pre-configured Windows IoT enterprise OS simplifies network configuration steps.
Heavy-duty cable retention housing prevents physical port disconnection failures.
Direct integration with Logitech Sync API allows remote hardware monitoring.
Specifications
| Brand | Logitech |
| Part Number | TAPZOMBASEDEL2 |
| Product Type | Video Conferencing System |
| Bundle Core Components | Logitech Tap Touch Controller, Dell OptiPlex Micro PC |
| Dedicated Software Layer | Pre-Configured Zoom Rooms Application |
| Controller Display Size | 10.1-inch Diagonal Touchscreen Interface |
| Display Resolution | 1280 x 800 Native Resolution |
| Controller Interfaces | 1x USB 2.0 Type-A, 1x USB 2.0 Type-B, 1x HDMI Input |
| Compute Processor | Intel Core i5 Enterprise Grade Multi-Core |
| Compute Operating System | Windows 10 IoT Enterprise / Windows 11 IoT Enterprise |
| Network Interface | 1x 10/100/1000 Mbps Gigabit Ethernet (RJ-45) |
| Video Outputs | 2x HDMI Outputs (Supporting Dual Display Setup) |
| Peripheral Ports | Multiple USB 3.1 Gen 1 / Gen 2 Type-A |
