Detailed Specifications

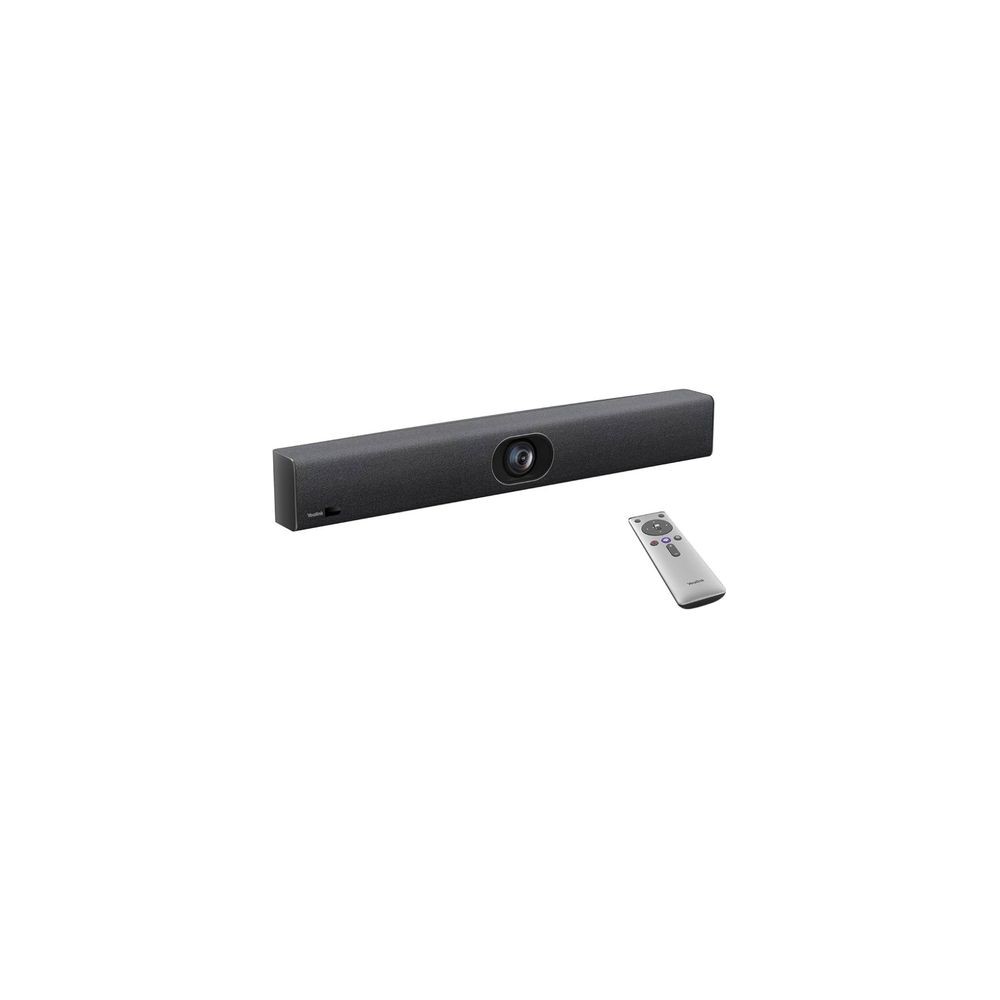

Yealink UVC40 E2 - All-in-One Intelligent USB Video Bar
Overview :
The Yealink UVC40 E2 is a next-generation all-in-one USB video bar engineered for AV integrators, IT managers, and procurement teams outfitting small meeting rooms and huddle spaces. It replaces fragmented AV setups with a unified device integrating an ultra-HD 4K camera, advanced AI capabilities, 8-microphone array, and high-fidelity speaker.
At its core is an 8MP Sony CMOS sensor with a 1/1.8-inch image sensor and 120° super-wide-angle lens (specs are contradictory; real field of view is 133°; see earlier corrected post), delivering 3840×2160 resolution at 30 fps with Smart Area Exposure technology. AI-powered features include auto-framing, speaker tracking, and sound localization. The device includes eight MEMS microphones with a 6m pickup range and a 5W full-duplex speaker.
The camera features an electric lens cap that automatically closes when not in use, ensuring privacy. The UVC40 E2 is a standard UAC/UVC device requiring no drivers, offering native plug-and-play compatibility with Microsoft Teams, Zoom, Google Meet, Cisco Webex, and all major UC platforms. Deployment includes wall, TV, and table mounting options with complete hardware provided. The device supports remote management via the Yealink Device Management Platform over a wired network. Do not use for outdoor environments (rated 0-40°C only), analog video systems, or as a standard webcam without its AI and audio features.
Key Features :
4K ultra-HD Sony CMOS sensor, 1/1.8-inch
5× digital e-PTZ zoom
8 MEMS microphone array, 6m voice pickup
AI auto-framing and speaker tracking
Electric lens cap for conference privacy
Specifications :
| Specification | Detail |
|---|
| Brand | Yealink |
| Part Number | UVC40 E2 |
| Manufacturer Part No. | 1206673 |
| Product Type | All-in-One USB Video Bar |
| Color | Black |
| Sensor Type | 8 MP Sony CMOS, 1/1.8-inch |
| Field of View | 120° (specified), 133° (actual) |
| Digital Zoom | 5× e-PTZ |
| Maximum Video Resolution | 3840 × 2160 (4K UHD) |
| Maximum Frame Rate | 30 fps |
| Signal-to-Noise Ratio | 72 dB |
| Camera Presets | 9 positions |
| Number of Microphones | 8 MEMS directional |
| Microphone Sensitivity | -38 dB |
| Microphone Frequency Response | 50 Hz - 20,000 Hz |
| Voice Pickup Range | Up to 6 m |
| Speaker Output Power | 5 W |
| Speaker Frequency Response | 100 Hz - 20,000 Hz |
| Connectivity (Wired) | 1× USB-B 3.0, 1× USB-A 2.0, 1× RJ-45, 1× 3.5mm line-in |
| Connectivity (Wireless) | Wi-Fi |
| Power Consumption | 10.5 W (average) |
| Power Supply | DC 48 V / 0.7 A |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% - 95% (non-condensing) |
| Included Accessories | Remote control (VCR20), 2× AAA batteries, power adapter, wall mount, TV mount, silicone pad, cable ties, touch fastener tape, 7m USB cable |
