Detailed Specifications

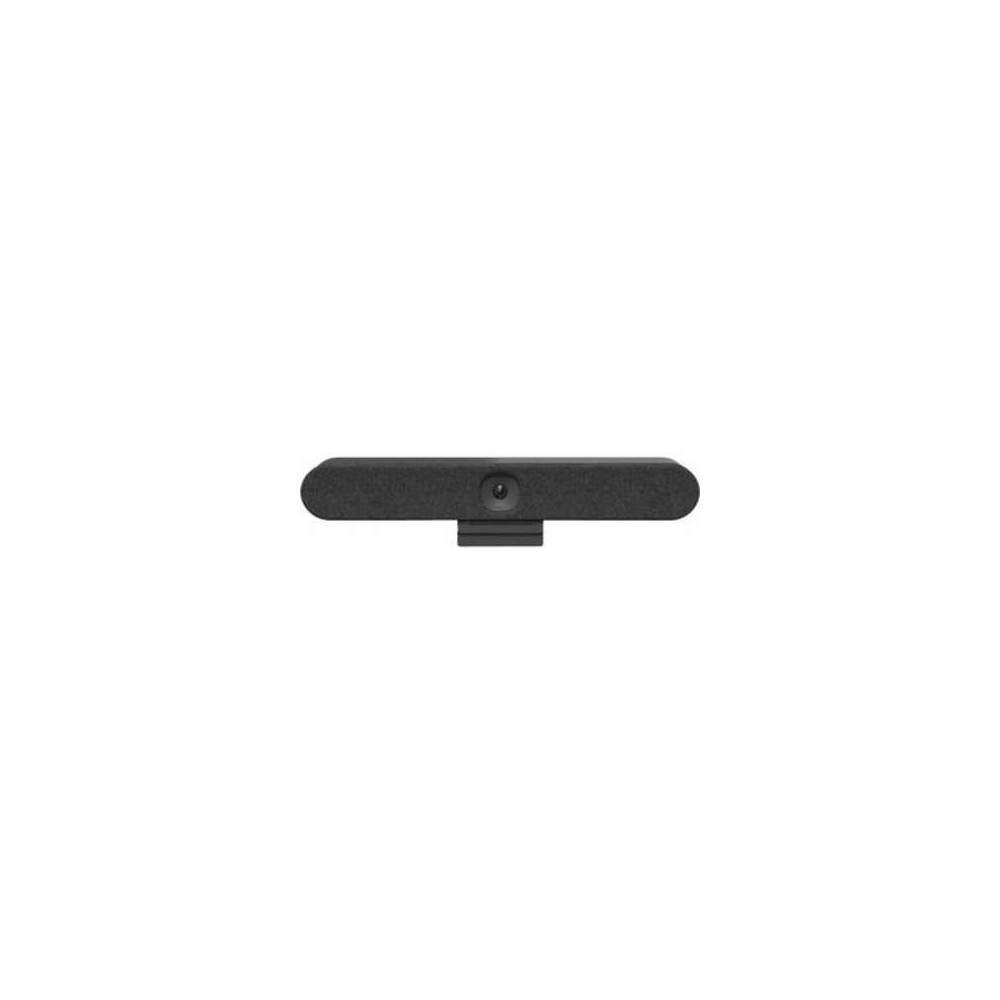

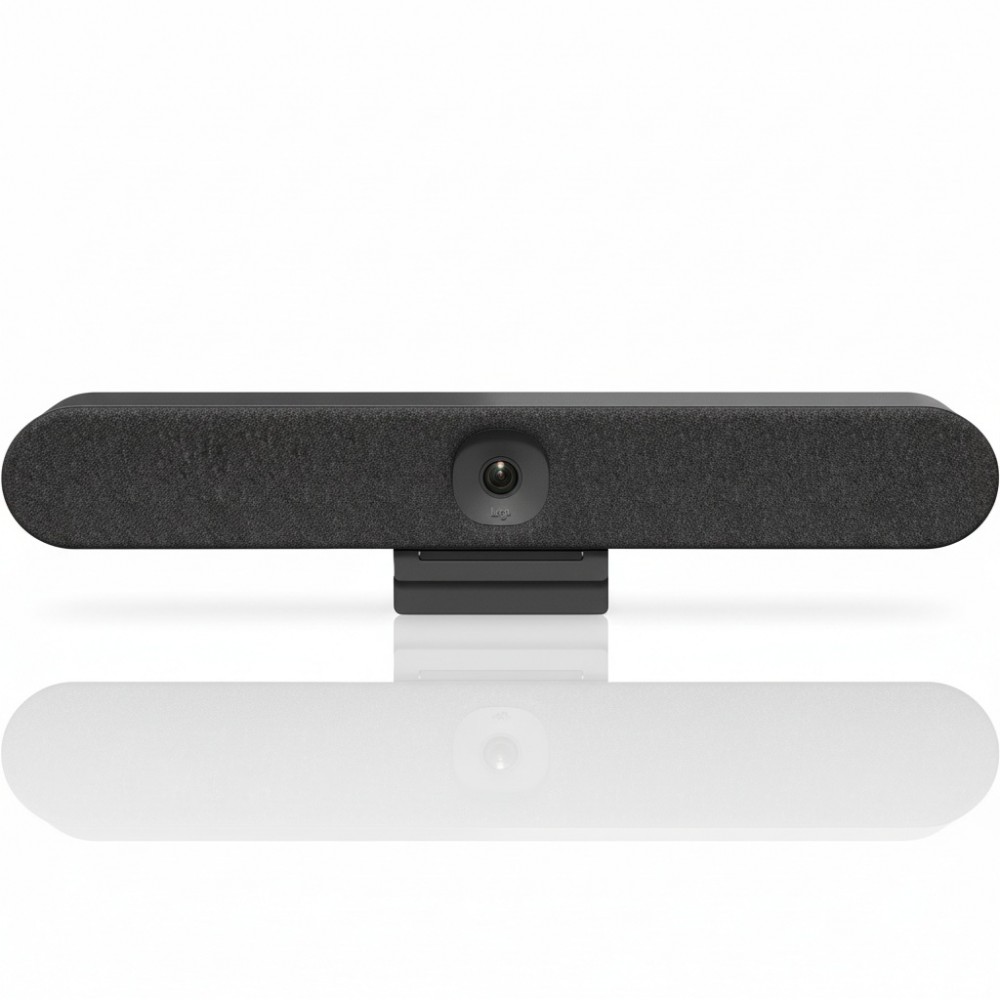

Logitech 960-001485 – All-in-one Video Bar / Huddle Rooms
Overview :
The Logitech 960-001485 is an all-in-one video conferencing bar designed for small meeting rooms and huddle spaces, aimed at IT teams deploying hybrid-work setups. It combines a 4K PTZ camera, beam-forming microphone array and full-range speaker into a single enclosure, enabling unified audio-video capture and playback without separate components. This device fits in a table-top, wall-mounted or above-display installation across branch or campus sites where space is limited and simplicity is preferred. On the management side, it supports device monitoring and firmware updates via Logitech Sync and integrates with major platforms in both USB-connected and appliance modes.
Key Features :
4K resolution digital PTZ camera with wide 120° field of view
Six-element MEMS microphone array with beam-forming pickup up to ~7 m
Full-range speaker driver 55 mm, 8 W rated power for clear audio playback
HDMI In and HDMI Out plus USB-C and USB-A interfaces for flexible connectivity
Supports WiFi 802.11a/b/g/n/ac and Gigabit Ethernet with IPv4/IPv6 network protocol
Specifications :
| Specification | Detail |
|---|
| Brand | Logitech |
| Part Number | 960-001485 |
| Product Type | All-in-one video conferencing bar |
| Camera Resolution | 4K (3840×2160) |
| Digital Pan | ±48° at 4× zoom |
| Digital Tilt | ±32° at 4× zoom |
| Diagonal Field of View | 120° |
| Horizontal Field of View | 113° |
| Vertical Field of View | 80° |
| Microphone Frequency Response | 90 Hz – 16 kHz |
| Microphone Pickup Range | Up to ~7 m |
| Speaker Rated Power | 8 W |
| Speaker Sensitivity | 83 dB SPL @1 W ±2dB @1 m |
| Dimensions | 21.6″ W × 3.1″ H × 3.0″ D (549.6 mm × 78.9 mm × 76.0 mm) |
| Weight | 3.9 lbs (1.8 kg) |
