Detailed Specifications

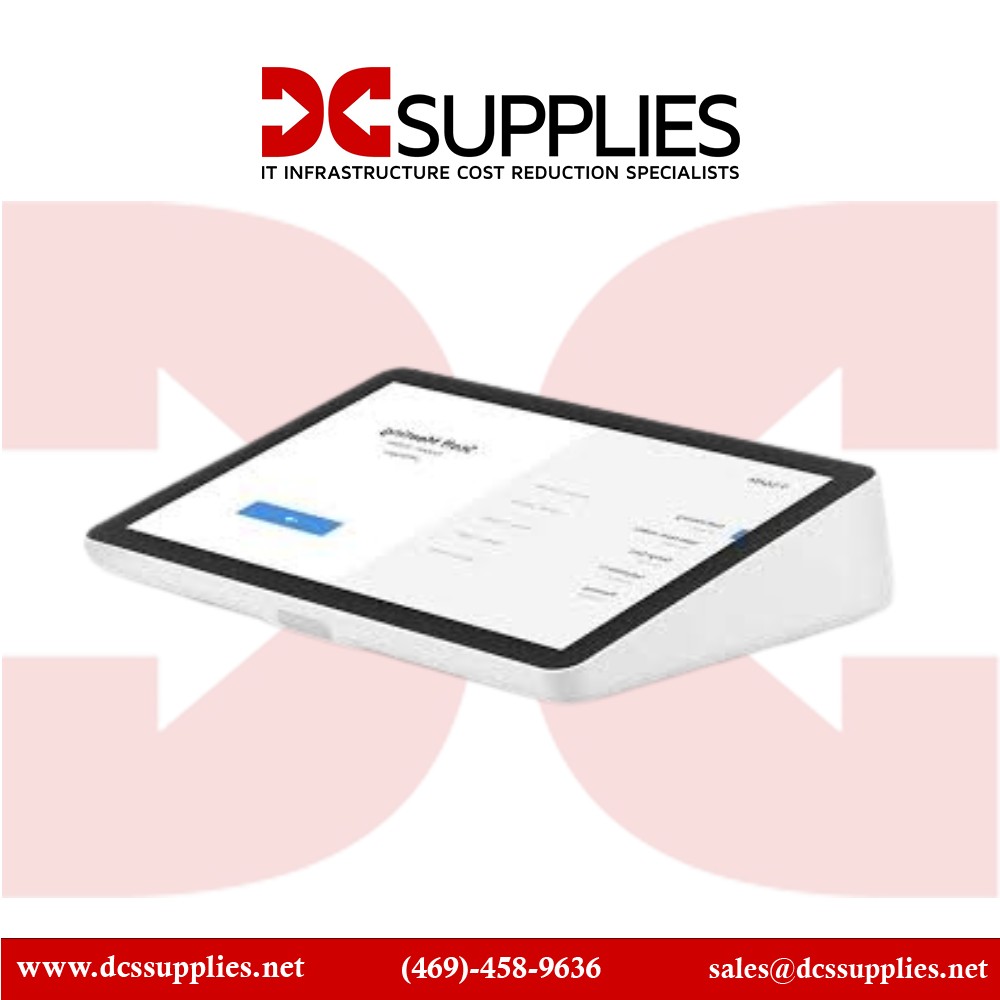

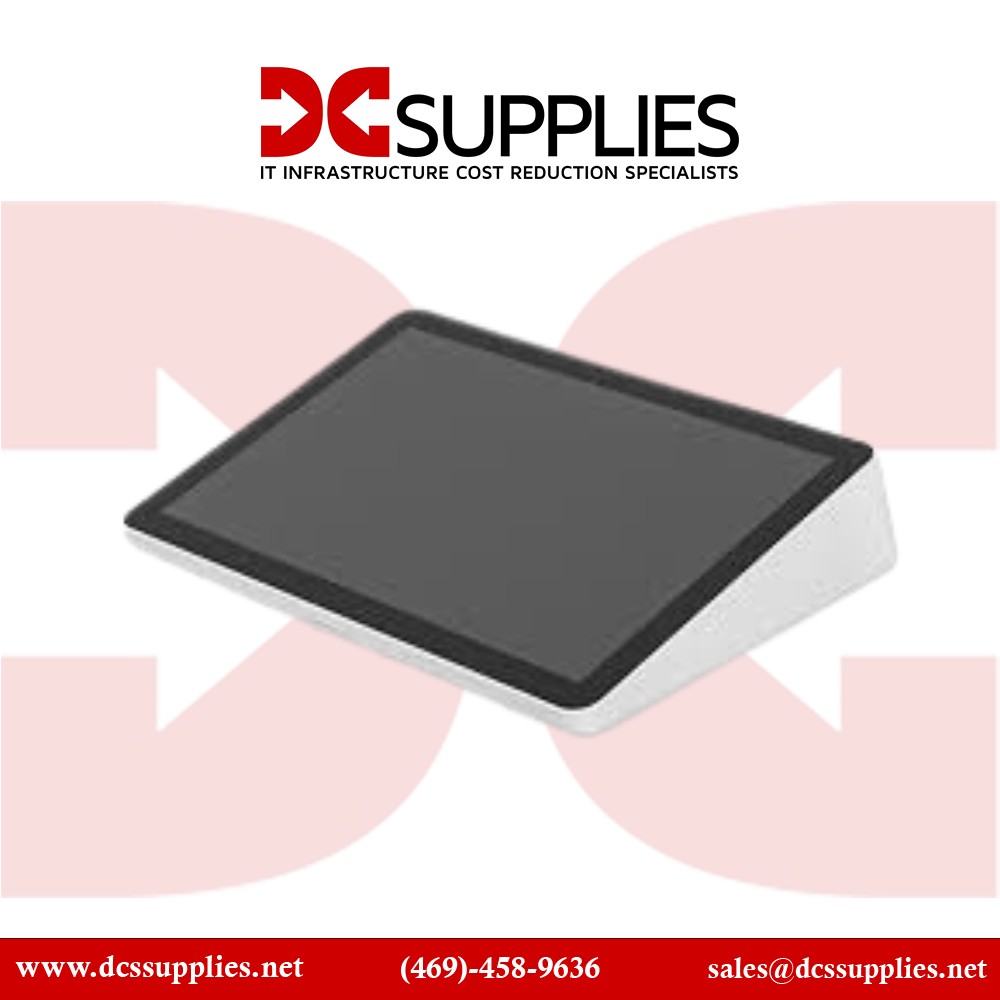

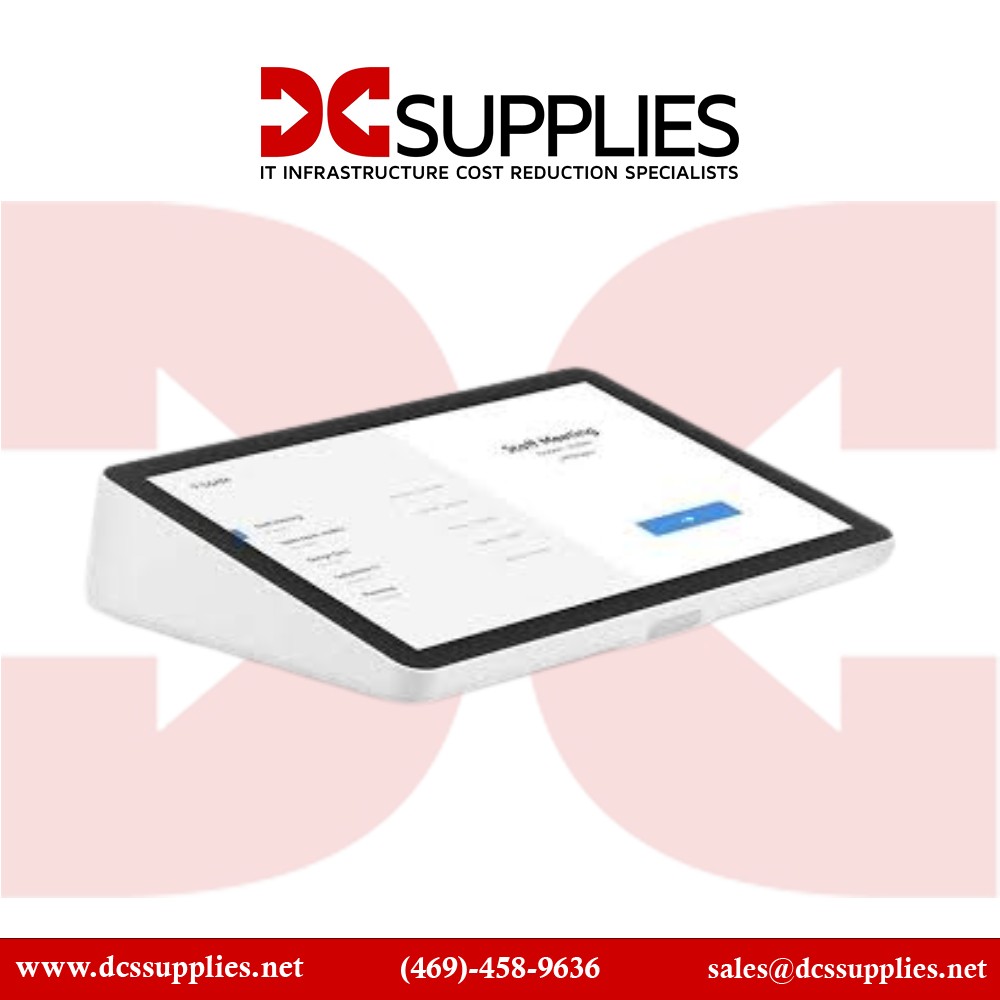

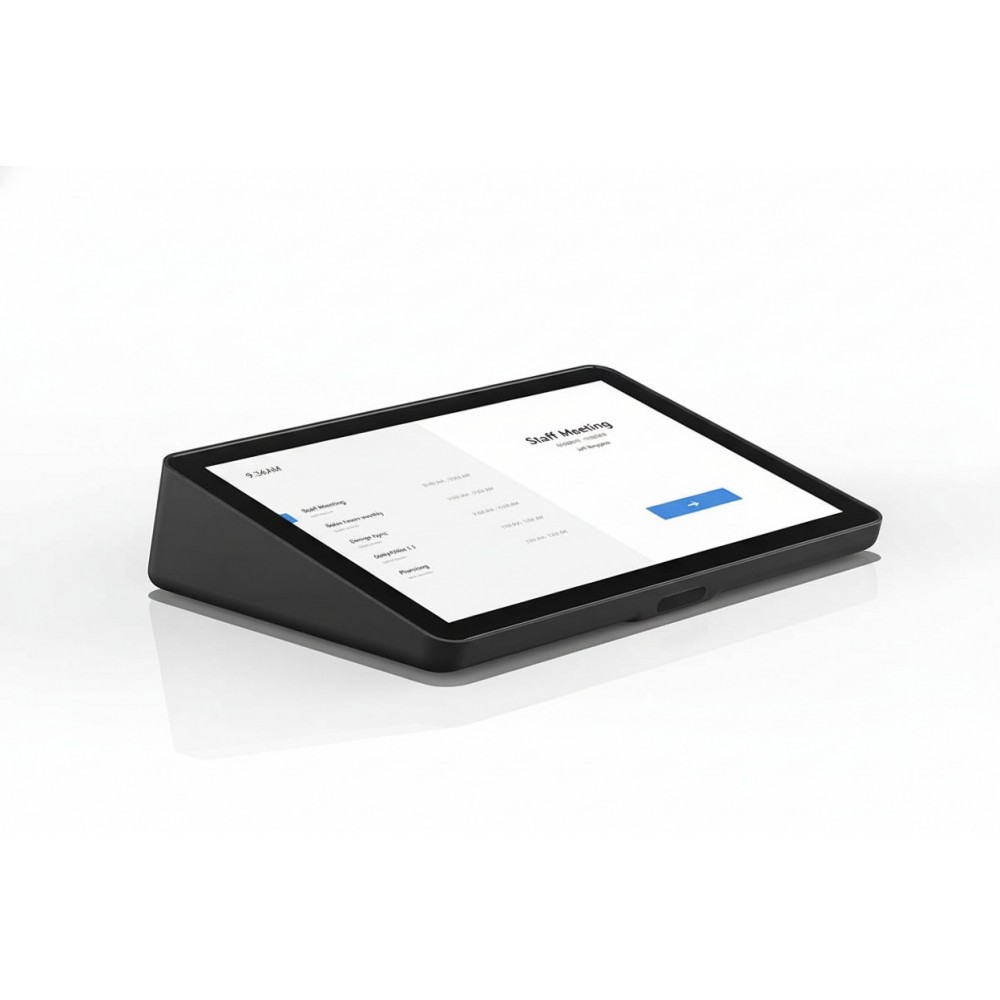

Logitech 952-000085 – Meeting Room Touch Controller
Overview :
The Logitech 952-000085 (Tap IP) is a network‑connected touch controller designed for hybrid meeting rooms and collaboration spaces, enabling participants to join and manage meetings with a single touch. It features a 10.1″ capacitive multi‑touch display, Power over Ethernet (PoE) support, and integrated sensors to streamline operation and simplify deployment. This unit is suitable for small to large conference rooms, wall, table, or riser mounted, and is compatible with major platforms such as Microsoft Teams, Zoom and Google Meet environments. In addition to meeting controls, the Tap IP can be managed centrally via Logitech Sync, allowing IT teams to monitor device health and firmware across distributed rooms.
Key Features :
10.1″ diagonal IPS touch display (1280 × 800)
PoE (IEEE 802.3af Type 1 Class 3) single‑cable power and data
Capacitive 10‑point multi‑touch screen with oleophobic coating
Built‑in motion sensor and ambient light sensor for readiness
Ethernet 10/100 Mbps, Wi‑Fi 802.11a/b/g/n/ac and Bluetooth 5.0
Specifications :
| Specification | Detail |
|---|
| Brand | Logitech |
| Part Number | 952‑000085 |
| Product Type | Meeting Room Touch Controller |
| Display Size | 10.1 in (diagonal) |
| Resolution | 1280 × 800 pixels |
| Display Angle | 14° (fixed angle) |
| Dimensions (HxWxD) | 2.21 in × 9.69 in × 6.74 in |
| Weight | 2.2 lbs |
| Power | PoE IEEE 802.3af Type 1 Class 3 |
| Ethernet | 10/100 Mbps (RJ‑45) |
| Wi‑Fi | 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | ‑40 °C to 70 °C |
| Compatibility Platforms | MS Teams Rooms on Android, Zoom Rooms, Google Meet on Android |
