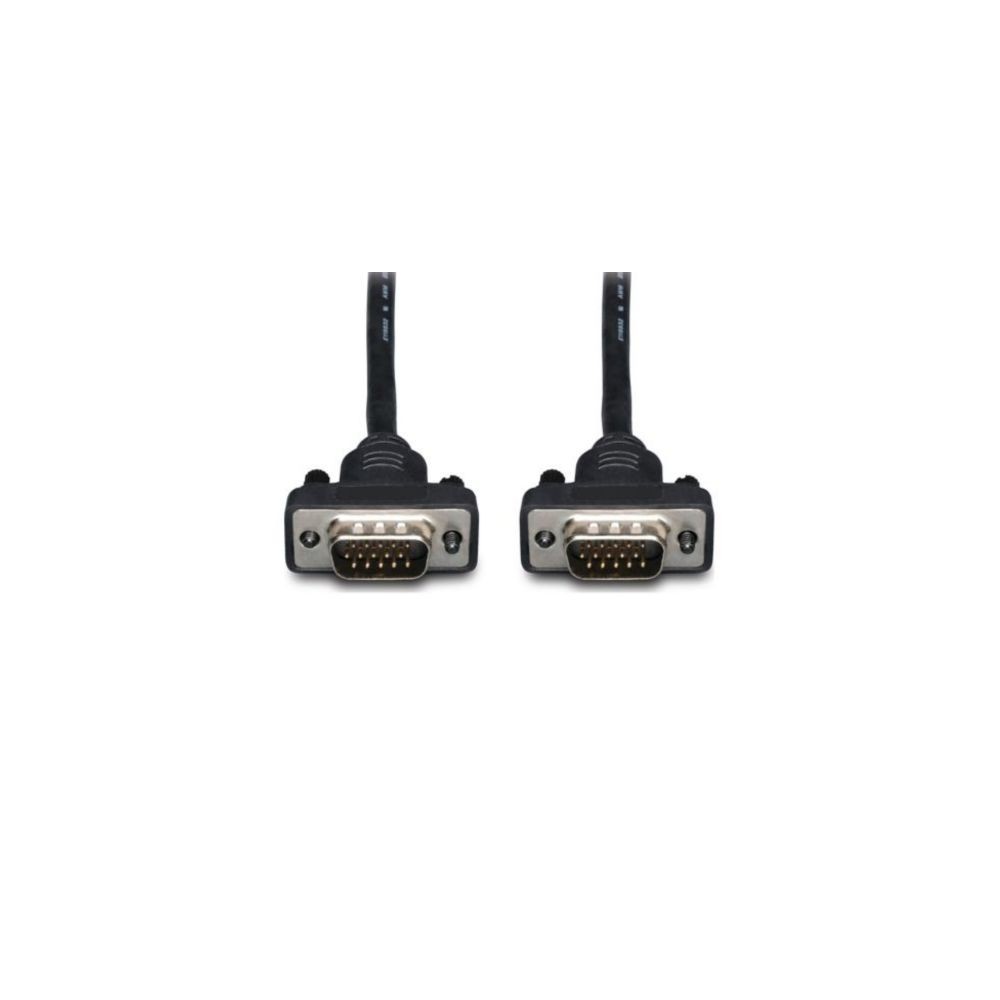

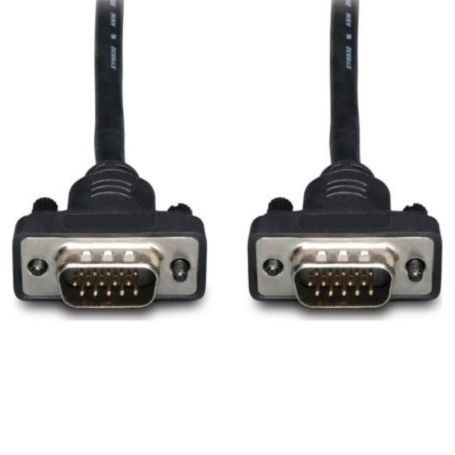

Eaton P502-006-SM Tripp Lite 6 ft VGA High Resolution Coaxial Cable Low Profile HD15 M M
The Eaton P502-006-SM is a 6 ft passive VGA/SVGA monitor cable designed for high-resolution analog video connections. It uses mini-coaxial RGB conductors and paired video wire, with shielded construction to help reduce EMI/RFI interference.
Low-Profile HD15 Connectors
Both ends use low-profile HD15 male connectors. This compact connector design distinguishes the P502-006-SM from the standard P502-006 and can be useful where VGA ports are positioned near neighboring connections or equipment surfaces.
High-Resolution VGA/SVGA Video
The cable supports video resolutions up to 2048 x 1536, including 1080p. Its passive design provides a direct analog VGA/SVGA connection between compatible equipment without requiring an active signal converter.
Key Features
- 6 ft (1.83 m) VGA/SVGA cable
- HD15 male-to-male low-profile connectors
- Mini-coaxial RGB and paired video wire construction
- Supports resolutions up to 2048 x 1536, including 1080p
- Foil and braid shielding with gold-plated connectors and contacts
DC Supplies Product Note
The low-profile HD15 connectors are the main installation advantage of the P502-006-SM. They are particularly useful when a VGA connection is located close to a wall, rack component, or neighboring connector where a conventional full-size VGA plug may require more clearance.
Applications
- Desktop computer to VGA monitor connections
- Workstation and office displays
- Classroom and conference-room projectors
- Legacy VGA monitors and displays
- KVM and server-console installations
- Professional AV equipment using VGA/SVGA
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number / MPN | P502-006-SM |
|---|
| Product Type | High-Resolution VGA/SVGA Coaxial Cable |
|---|
| Cable Length | 6 ft (1.83 m) |
|---|
| Cable Type | Passive |
|---|
| Connector A | HD15 Male, Low Profile |
|---|
| Connector B | HD15 Male, Low Profile |
|---|
| Video Technology | VGA / SVGA |
|---|
| Maximum Resolution | 2048 x 1536 |
|---|
| 1080p Support | Yes |
|---|
| Construction | Mini-Coaxial RGB and Paired Video Wire |
|---|
| Shielding | Foil and Braid |
|---|
| Connector Plating | Gold-Plated |
|---|
| Contact Plating | Gold-Plated |
|---|
| Cable Color | Black |
|---|
| Cable Shape | Round |
|---|
| Jacket Material | PVC |
|---|
| Connector Type | HD15 Male |
|---|
| Warranty | Lifetime Limited Warranty |
|---|
Package Contents
- P502-006-SM 6 ft VGA High-Resolution Coaxial Cable
Frequently Asked Questions
What is the difference between P502-006-SM and P502-006?
Both are 6 ft passive high-resolution VGA/SVGA cables with HD15 male connectors. The P502-006-SM uses low-profile HD15 connectors at both ends.
What resolution does the P502-006-SM support?
The cable supports video resolutions up to 2048 x 1536, including 1080p.
Is the P502-006-SM an active VGA adapter?
No. It is a passive VGA/SVGA cable and does not perform digital-to-analog or analog-to-digital signal conversion.
Are both connectors male?
Yes. The P502-006-SM has low-profile HD15 male connectors on both ends.
Why choose the low-profile version?
The smaller connector design can provide additional clearance around VGA ports where space is limited by walls, equipment, or adjacent connectors.
