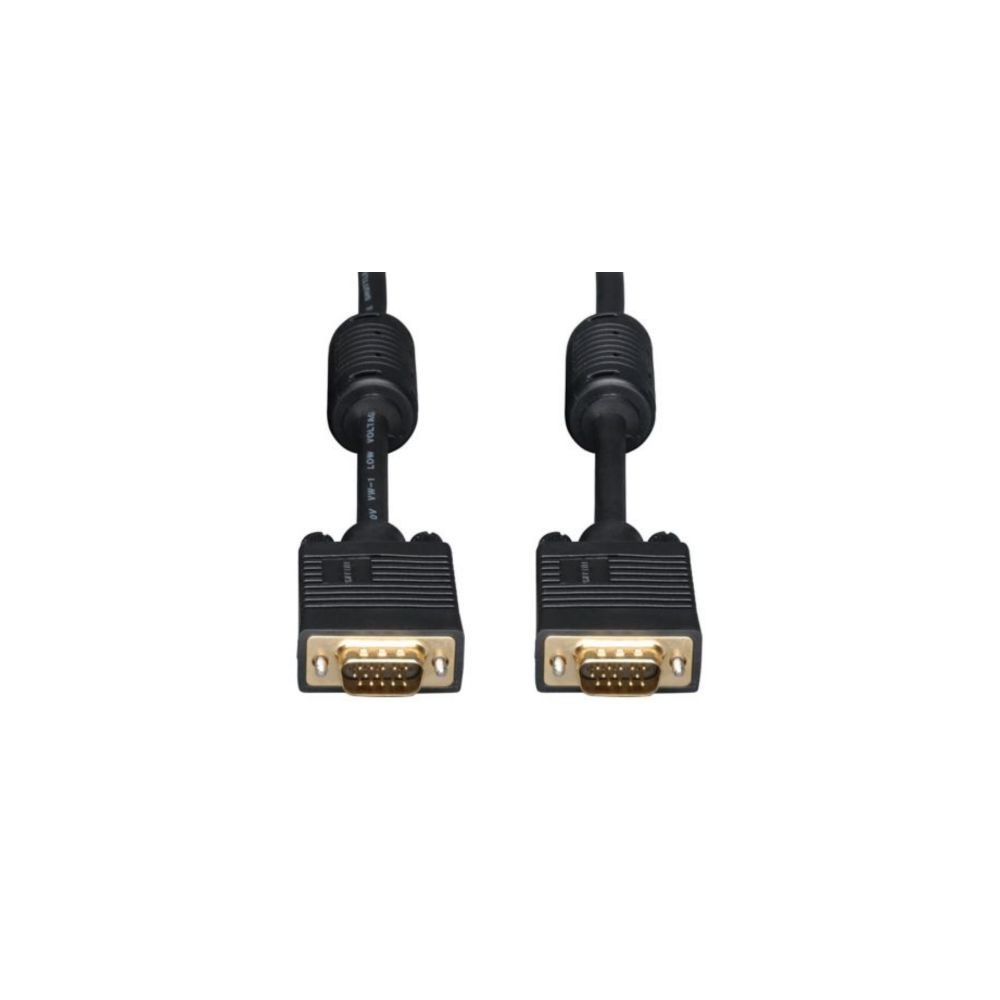

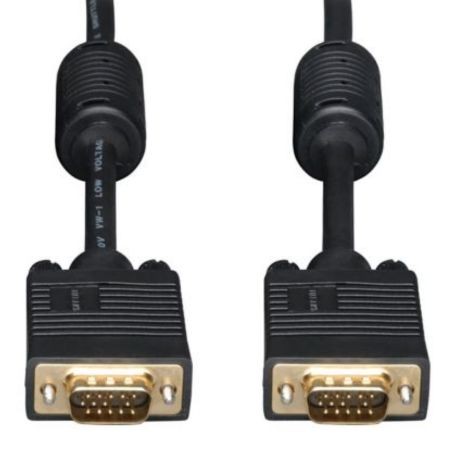

Eaton P502-010 Tripp Lite VGA High Resolution RGB Coaxial Cable 10 ft
The Eaton P502-010 is a 10 ft high-resolution VGA/SVGA monitor cable designed to connect VGA-equipped computers, monitors, and compatible video equipment. It uses mini-coaxial RGB conductors and paired video wire to support high-resolution analog video connections.
High-Resolution VGA Video
The P502-010 supports video resolutions up to 2048 x 1536, including 1080p. Its coaxial construction is designed for high-resolution VGA applications where cable construction and shielding are important considerations.
RGB Coaxial Construction and Shielding
The cable uses dedicated mini-coaxial RGB conductors along with paired video wire. Foil and braid shielding helps reduce the effects of EMI and RFI interference on the analog video signal.
HD15 Male-to-Male Connection
Both ends feature molded HD15 male connectors with gold-plated connectors and copper contacts. Integral strain relief is molded into the connectors to help protect the cable at the connection points.
Key Features
- 10 ft (3.05 m) VGA/SVGA monitor cable
- HD15 male-to-male connectors
- Supports resolutions up to 2048 x 1536, including 1080p
- Mini-coaxial RGB and paired video wire construction
- Foil and braid shielding for EMI/RFI protection
DC Supplies Product Note
The P502-010 uses dedicated mini-coaxial RGB conductors rather than basic VGA cable construction, making its 10 ft length particularly suited to higher-resolution analog video connections where signal quality is an important installation consideration.
Typical Applications
- VGA computer-to-monitor connections
- High-resolution analog video installations
- Conference-room displays
- Industrial video equipment
- Imaging and vision systems
- Legacy VGA/SVGA workstations
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P502-010 |
| Product Type | High-Resolution VGA/SVGA Monitor Cable |
| Cable Type | Passive |
| Technology | VGA/SVGA |
| Connector A | HD15 Male |
| Connector B | HD15 Male |
| Cable Length | 10 ft (3.05 m) |
| Maximum Resolution | 2048 x 1536 |
| 1080p Support | Yes |
| Conductor Construction | Mini-coaxial RGB and paired video wire |
| Shielding | Foil and braid |
| Connector Plating | Gold plated |
| Contact Material | Copper |
| Connector Design | Molded with integral strain relief |
| Cable Shape | Round |
| Jacket Color | Black |
| Applications | Industrial, Audio, Imaging, Video and Vision |
| RoHS | Compliant |
| UPC | 037332146939 |
Package Contents
1 x Eaton Tripp Lite P502-010 10 ft VGA high-resolution RGB coaxial monitor cable.
Frequently Asked Questions
What is the Eaton P502-010 used for?
The P502-010 is used to connect compatible VGA-equipped computers, monitors, and other analog video equipment using HD15 connections.
What resolution does the P502-010 support?
The cable supports video resolutions up to 2048 x 1536, including 1080p.
How long is the P502-010?
The cable is 10 ft (3.05 m) long.
What makes the P502-010 different from a basic VGA cable?
The P502-010 uses mini-coaxial RGB conductors and paired video wire, along with foil and braid shielding, for high-resolution analog video applications.
Are both connectors male?
Yes. The P502-010 has an HD15 male connector on each end.
