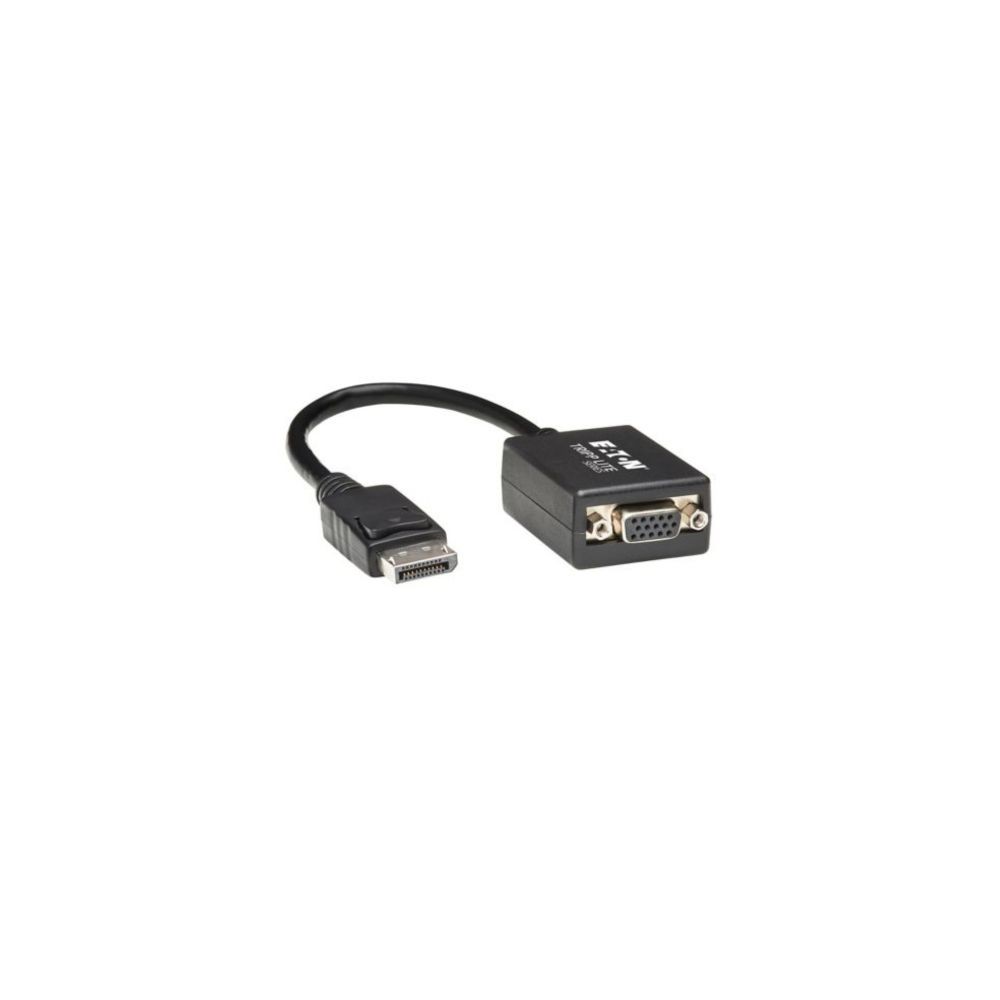

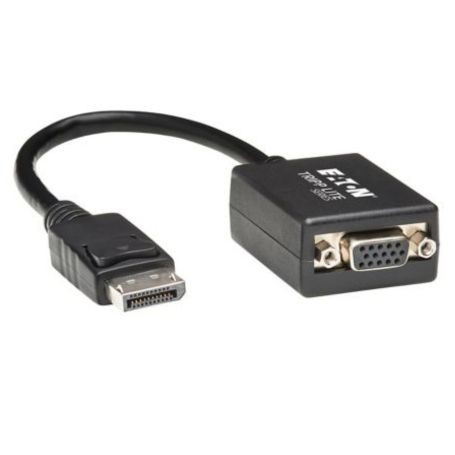

Eaton P134-06N-VGA Tripp Lite DisplayPort to VGA Active Adapter 6 in
The Eaton Tripp Lite P134-06N-VGA is a 6-inch active DisplayPort-to-VGA adapter designed to connect a computer with a DisplayPort output to a VGA monitor or projector. Its integrated active conversion circuitry converts the digital DisplayPort signal to analog VGA without requiring drivers or software.
The adapter supports computer resolutions up to 1920 x 1200 and HD resolutions up to 1080p. The DisplayPort male connector connects directly to the source, while the HD15 female connector accepts a standard VGA cable for connection to the display.
Key Features
- Active DisplayPort-to-VGA conversion for connecting modern DisplayPort sources to VGA displays
- Supports PC resolutions up to 1920 x 1200 and HD resolutions up to 1080p
- Converts both Single-Mode and Dual-Mode (DP++) DisplayPort output
- Plug-and-play operation with no drivers or software installation
- 6-inch pigtail design with DisplayPort male and HD15 female connectors
DC Supplies Product Note
The P134-06N-VGA is an active adapter, so it can convert DisplayPort output even from graphics hardware that does not provide a Dual-Mode (DP++) signal. For installations using an MST hub, Eaton specifies the DisplayPort 1.2-compatible P134-06N-VGA-V2 instead.
Applications
- Connect a DisplayPort desktop computer to a VGA monitor
- Connect a DisplayPort laptop or workstation to a VGA projector
- Use legacy VGA displays with newer DisplayPort-equipped computers
- Support presentation and conference-room systems using VGA displays
- Connect graphics cards such as AMD Eyefinity configurations to compatible VGA displays
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P134-06N-VGA |
| Product Type | Active DisplayPort to VGA Adapter |
| Technology | DisplayPort / VGA / SVGA |
| DisplayPort Connector | Male |
| VGA Connector | HD15 Female |
| Adapter Type | Active |
| DisplayPort Support | Single-Mode and Dual-Mode (DP++) |
| Maximum PC Resolution | 1920 x 1200 |
| Maximum HD Resolution | 1920 x 1080 (1080p) |
| Cable Length | 6 in (15.24 cm) |
| Cable Length | 0.5 ft (0.15 m) |
| Color | Black |
| Cable Type | Round, shielded |
| Plug and Play | Yes |
| Drivers Required | No |
| MST Hub Compatibility | Not supported; use P134-06N-VGA-V2 for MST hubs |
| Compliance | RoHS |
| Warranty | 3-year limited worldwide warranty |
| UPC | 037332159151 |
Package Contents
One P134-06N-VGA DisplayPort-to-VGA active cable adapter, 6 inches.
Compatibility
The P134-06N-VGA requires a computer with a DisplayPort output and a monitor or projector with a VGA input. A separate VGA cable is required between the adapter's HD15 female connector and the display.
The adapter supports both Single-Mode and Dual-Mode (DP++) DisplayPort output. Eaton specifically states that the P134-06N-VGA is not for use with MST hubs; the P134-06N-VGA-V2 is the recommended DisplayPort 1.2-compatible model for MST hub applications.
Frequently Asked Questions
Is the P134-06N-VGA an active adapter?
Yes. It contains active conversion circuitry that converts the digital DisplayPort signal to analog VGA.
What resolution does the P134-06N-VGA support?
It supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1920 x 1080 (1080p).
Does it require drivers?
No. Eaton specifies plug-and-play operation without drivers or software installation.
Can the P134-06N-VGA be used with an MST hub?
No. Eaton specifies that this model is not for use with MST hubs. The P134-06N-VGA-V2 is the DisplayPort 1.2-compatible version intended for MST hub compatibility.
Does the adapter include a VGA cable?
No. The adapter has an HD15 female VGA connector, so a separate VGA cable is required to connect it to the display.
Can it connect a VGA monitor to a DisplayPort computer?
Yes. The P134-06N-VGA is designed to connect a VGA monitor or projector to a computer with a DisplayPort output.
