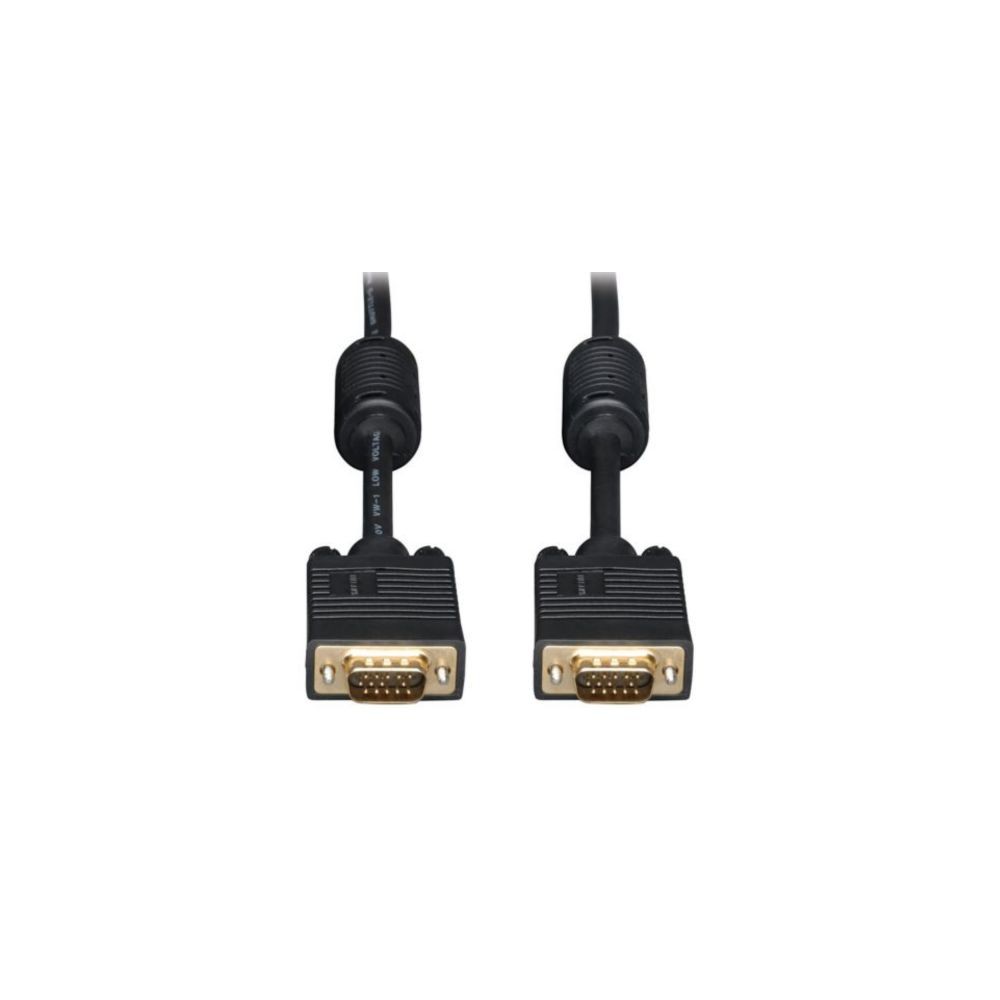

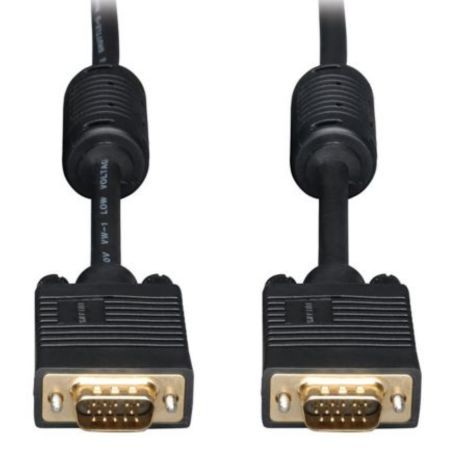

Eaton P502-006 Tripp Lite VGA High Resolution Monitor Cable 6 ft HD15 M M
The Eaton P502-006 Tripp Lite VGA High-Resolution Monitor Cable provides a 6 ft (1.83 m) connection between a VGA-enabled computer and compatible VGA/SVGA monitor or display. Its HD15 male-to-male configuration is designed for direct VGA video connections between equipment with standard HD15 ports.
The cable supports video resolutions up to 2048 x 1536, including 1080p. It uses dedicated mini-coaxial RGB conductors and paired video wire, with foil and braid shielding to help protect against EMI/RFI line noise. Molded gold-plated HD15 connectors, gold-plated contacts, integral strain relief, and a rugged PVC jacket complete the cable construction.
Key Features
- 6 ft (1.83 m) high-resolution VGA/SVGA cable
- HD15 male-to-male connectors for VGA equipment
- Supports resolutions up to 2048 x 1536, including 1080p
- Mini-coaxial RGB and paired video wire construction
- Foil and braid shielding for EMI/RFI protection
High-Resolution VGA Connectivity
The P502-006 is designed to connect a computer with an HD15 VGA output to a compatible monitor or display with an HD15 VGA input. The passive cable carries analog video without requiring external power or an active signal converter.
RGB Coaxial Construction
Dedicated mini-coaxial conductors are used for the RGB video signals, while paired video wire handles the remaining VGA signals. This construction is intended for high-resolution VGA/SVGA applications and is complemented by foil and braid shielding.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P502-006 |
| Product Type | VGA High-Resolution Monitor Cable |
| Cable Type | Passive |
| Technology | Coax / VGA / SVGA |
| Cable Length | 6 ft (1.83 m) |
| Connector A | HD15 Male |
| Connector B | HD15 Male |
| Signal Type | Analog Video |
| Maximum Resolution | 2048 x 1536 |
| 1080p Support | Yes |
| Conductor Construction | Mini-Coaxial RGB and Paired Video Wire |
| Shielding | Foil and Braid |
| Connector Plating | Gold-Plated |
| Contact Plating | Gold-Plated |
| Connector Construction | Molded with Integral Strain Relief |
| Cable Jacket | Rugged PVC |
| Cable Color | Black |
| UPC | 037332012319 |
| Compliance | RoHS |
| Warranty | Lifetime Limited |
Compatible Applications
- VGA-enabled desktop computers and workstations
- High-resolution VGA/SVGA monitors
- Conference-room presentation systems
- Classroom and training-room displays
- Legacy VGA projectors and displays
- VGA connections for compatible video equipment
System Requirements
The display must provide an HD15 VGA input, and the computer or video source must provide an HD15 VGA output.
Package Contents
1 x Eaton Tripp Lite P502-006 VGA Coaxial High-Resolution Monitor Cable, 6 ft (1.83 m).
Frequently Asked Questions
What is the Eaton P502-006 used for?
The P502-006 connects a VGA-enabled computer to a compatible VGA/SVGA monitor or display using a 6 ft HD15 male-to-male cable.
What resolution does the P502-006 support?
It supports video resolutions up to 2048 x 1536, including 1080p.
What connectors does the P502-006 have?
The cable has an HD15 male connector on both ends.
Is the P502-006 an active cable?
No. It is a passive VGA/SVGA cable and does not require external power or active signal conversion.
Is the P502-006 shielded?
Yes. It uses both foil and braid shielding to help protect the analog video signal from EMI/RFI line noise.
What makes the P502-006 different from a basic VGA cable?
The P502-006 uses mini-coaxial RGB conductors and paired video wire, along with foil and braid shielding, for high-resolution VGA/SVGA applications.
