Detailed Specifications

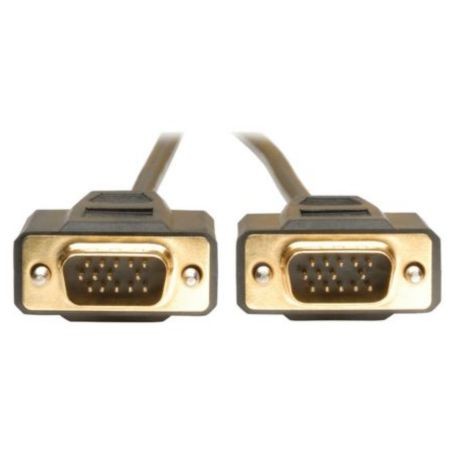

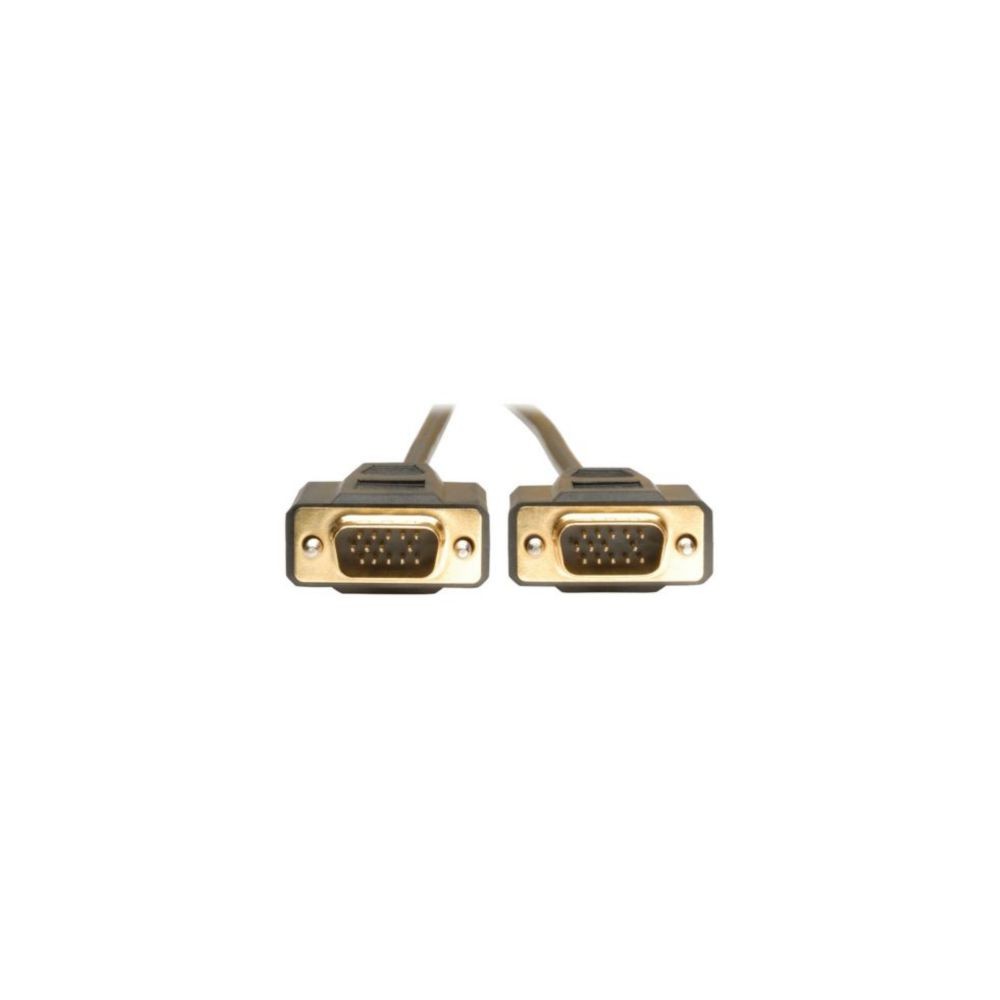

Eaton P512-006 Tripp Lite VGA Monitor Cable 6 ft HD15 M M
The Eaton P512-006 Tripp Lite VGA Monitor Cable provides a 6 ft (1.83 m) HD15 male-to-male connection for compatible VGA/SVGA equipment. It is designed as a replacement monitor cable for displays with removable HD15 connections and supports standard VGA resolutions up to 640 x 480.
The cable features molded HD15 male connectors with integral strain relief, gold-plated connectors and gold-plated copper contacts. Foil shielding helps protect the analog video signal from EMI/RFI interference during normal installation.
Key Features
- 6 ft (1.83 m) passive VGA/SVGA monitor cable
- HD15 male-to-male connector configuration
- Designed for standard VGA resolutions up to 640 x 480
- Foil shielding helps reduce EMI/RFI interference
- Gold-plated connectors and copper contacts with molded strain relief
VGA Monitor Connectivity
The P512-006 is designed for computers and monitors using standard HD15 VGA connections. Its male-to-male configuration allows it to replace a removable VGA monitor cable between compatible VGA equipment.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P512-006 |
| Product Type | VGA Monitor Cable |
| Cable Type | Passive |
| Technology | VGA / SVGA |
| Cable Length | 6 ft (1.83 m) |
| Connector A | HD15 Male |
| Connector B | HD15 Male |
| Signal Type | Analog Video |
| Maximum Supported Resolution | 640 x 480 |
| Shielding | Foil |
| Connector Plating | Gold |
| Contact Plating | Gold-plated copper contacts |
| Connector Construction | Molded with integral strain relief |
| Cable Color | Black |
| UPC | 037332012364 |
| Warranty | Lifetime Limited |
Compatible Applications
- VGA monitor replacement connections
- Desktop computers with HD15 VGA output
- Standard VGA monitors with removable HD15 cables
- Legacy workstation and display installations
- Classroom and office VGA equipment
Package Contents
1 x Eaton Tripp Lite P512-006 VGA Monitor Cable, 6 ft (1.83 m), HD15 male-to-male.
Frequently Asked Questions
What is the Eaton P512-006 used for?
The P512-006 is a VGA monitor replacement cable for equipment using HD15 VGA connections.
What connectors does the P512-006 have?
It has an HD15 male connector on both ends.
What resolution does the P512-006 support?
The manufacturer specifies support for resolutions up to 640 x 480 (standard VGA).
Is the P512-006 an active cable?
No. The P512-006 is a passive VGA/SVGA cable and does not perform video conversion.
Is the P512-006 shielded?
Yes. The cable uses foil shielding for EMI/RFI protection.
Can the P512-006 be used for higher-resolution VGA displays?
Eaton specifically recommends the P502-006 for higher-resolution monitors. The P512-006 is specified for resolutions up to 640 x 480.
