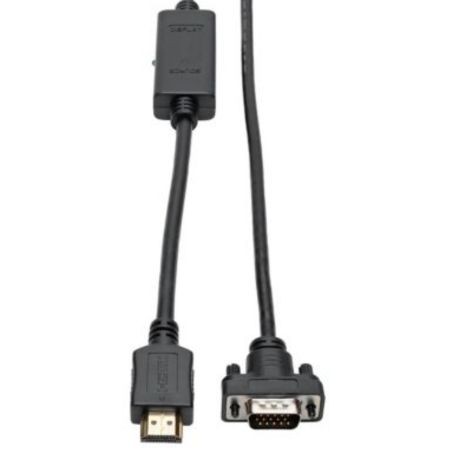

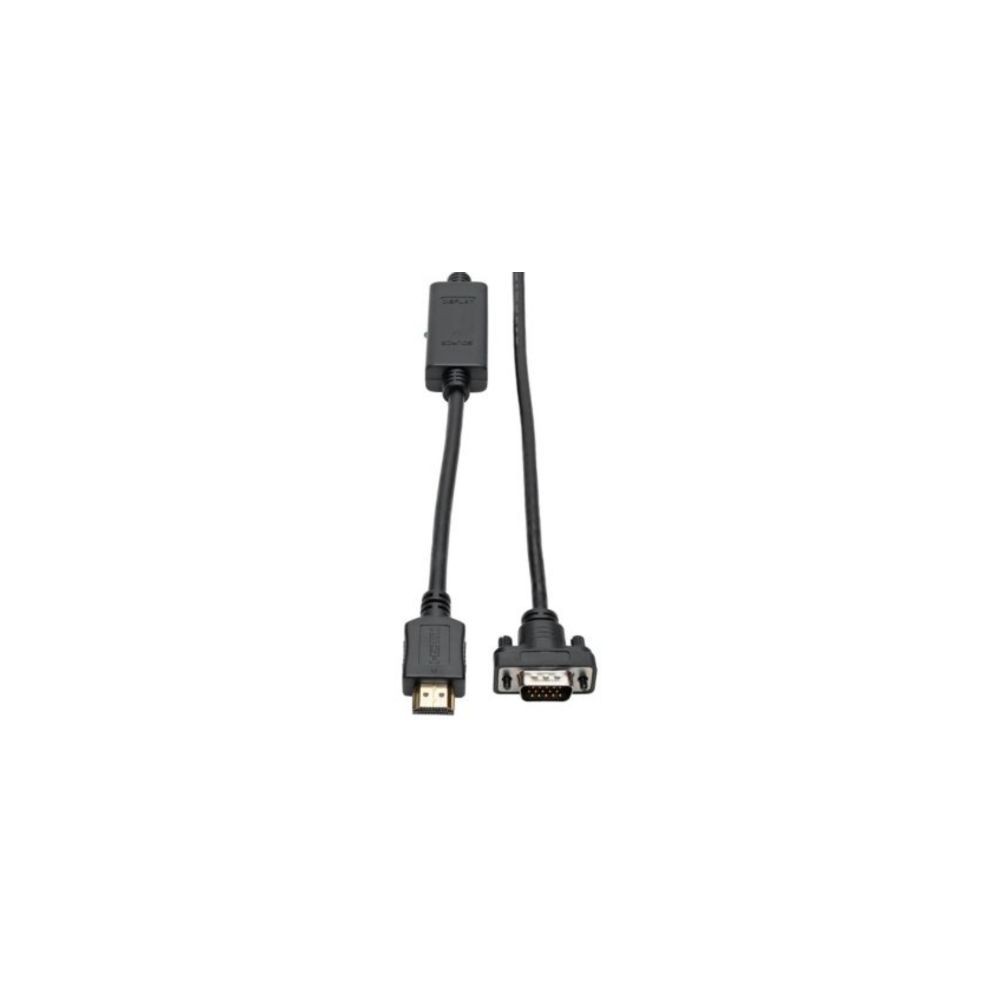

Eaton P566-010-VGA Tripp Lite HDMI to VGA Active Adapter Cable 10 ft
The Eaton P566-010-VGA Tripp Lite HDMI to VGA Active Adapter Cable connects an HDMI-equipped computer, media source, cable box, Blu-ray player, or other compatible HDMI source to a VGA monitor, projector, or television. Its active conversion circuitry enables HDMI video output to be used with an analog VGA display without requiring separate conversion hardware.
This 10 ft (3.05 m) cable supports video resolutions up to 1920 x 1200 at 60 Hz, including 1080p. The low-profile HD15 male connector is designed for installations where space behind the display is limited, while foil and braid shielding helps protect the signal path from EMI/RFI interference.
Key Features
- Active HDMI-to-VGA video conversion for connecting an HDMI source to a VGA display
- Supports resolutions up to 1920 x 1200 at 60 Hz and 1080p
- 10 ft (3.05 m) cable length for longer source-to-display connections
- Low-profile HD15 male connector for tighter installation spaces
- Plug-and-play operation with no software or drivers required
HDMI to VGA Connectivity
The P566-010-VGA is designed for one-way video conversion from an HDMI source to a VGA display. It is suitable for computers, projectors, monitors, televisions, digital signage, and other applications where the source provides HDMI output and the display provides VGA input.
Installation and Signal Protection
The cable uses foil and braid shielding for EMI/RFI protection and includes a gold-plated HDMI connector and contacts. Integral strain relief and impedance-matched twisted-pair construction are designed to help reduce cable stress and interference.
Additional Power
The adapter includes a Micro-USB B female port for additional power when required. If additional power is needed, Eaton specifies connecting a separately purchased USB cable between the Micro-USB port and a USB wall charger or computer USB port.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P566-010-VGA |
| Product Type | Active HDMI to VGA Adapter Cable |
| Cable Length | 10 ft (3.05 m) |
| Source Connector | HDMI Male |
| Display Connector | HD15 VGA Male, Low Profile |
| Additional Connector | Micro-USB B Female |
| Cable Type | Active |
| Maximum Resolution | 1920 x 1200 at 60 Hz |
| Supported Video | 1080p |
| Video Technology | HDMI / VGA / SVGA |
| Shielding | Foil and braid |
| HDMI Connector Plating | Gold-plated |
| Cable Jacket | Black PVC, VW-1 |
| Direction | HDMI source to VGA display |
| Software Required | No |
| TAA Compliant | Yes |
| UPC | 037332201102 |
| Warranty | 3-Year Limited |
Compatible Applications
- HDMI computers and laptops with VGA displays
- HDMI media sources connected to VGA monitors
- Projectors with VGA inputs
- Legacy VGA televisions and displays
- Digital signage and presentation systems
- Conference room and classroom AV installations
Package Contents
1 x Eaton Tripp Lite P566-010-VGA HDMI to VGA Active Converter Cable, 10 ft (3.05 m).
Frequently Asked Questions
What does the Eaton P566-010-VGA connect?
It connects an HDMI male source to a VGA display using an HD15 male connector.
What resolution does the P566-010-VGA support?
The cable supports video resolutions up to 1920 x 1200 at 60 Hz, including 1080p.
Does the P566-010-VGA require drivers?
No. Eaton specifies plug-and-play operation without software or drivers.
Is the P566-010-VGA bidirectional?
No. It is designed to convert an HDMI video source to a VGA display. It should not be used as a VGA-to-HDMI converter.
Does it include a USB power cable?
No. The cable has a Micro-USB B female port for additional power when required, but the USB cable and USB power source are sold separately.
Does this model carry audio?
No separate audio connection is provided on the P566-010-VGA. This model is the HDMI-to-VGA video version; the P566-010-VGA-A is the related model with an additional 3.5 mm audio connection.
