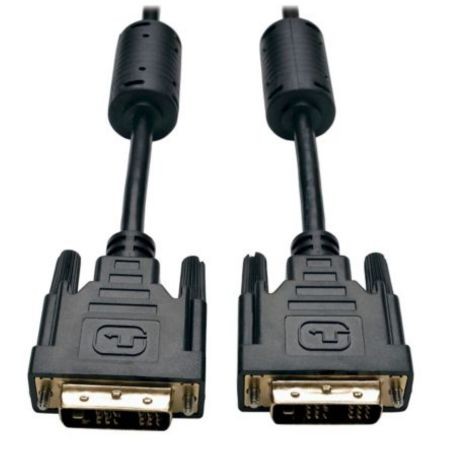

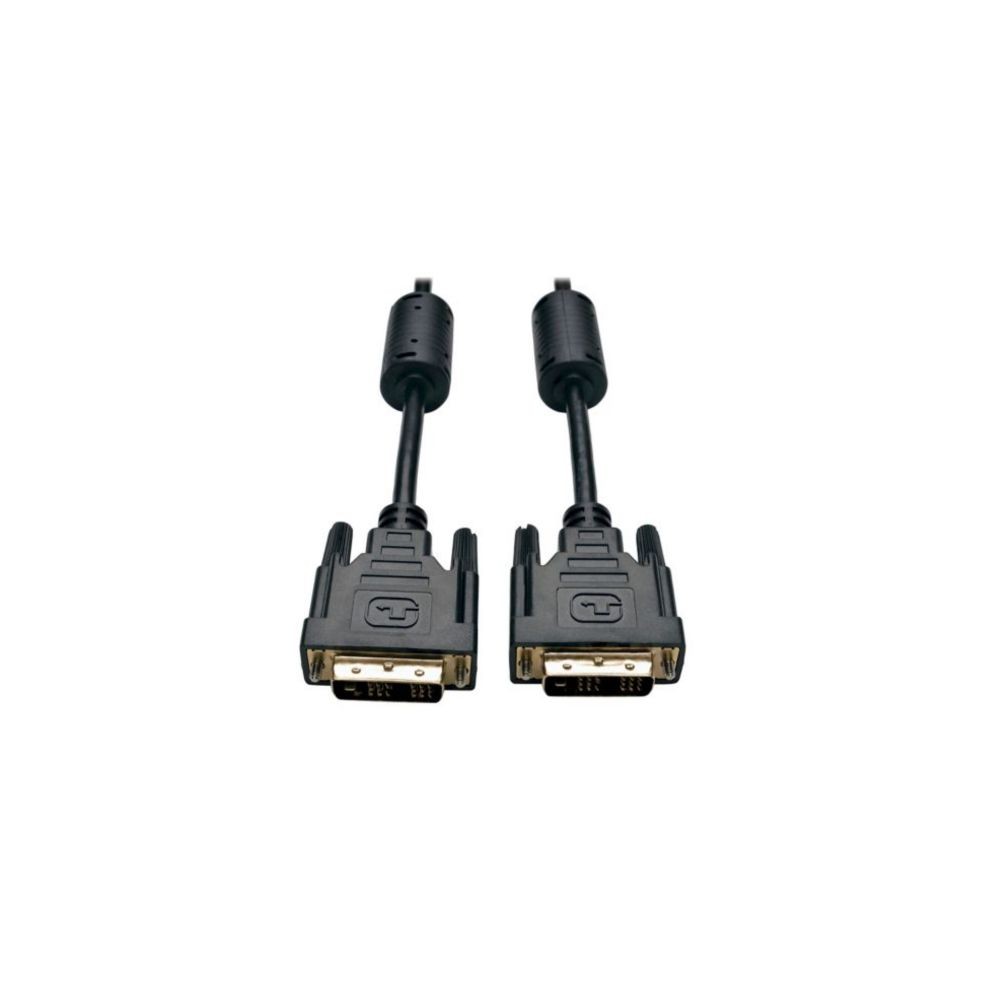

Eaton P561-006 Tripp Lite DVI D Single Link Cable 6 ft M M
The Eaton P561-006 is a 6 ft DVI-D Single Link digital TMDS monitor cable designed to connect compatible computers, flat-panel displays, digital CRT monitors, and projectors. Both ends use DVI-D Single Link male connectors for a direct digital video connection.
The passive cable supports resolutions up to 1920 x 1200 and high-speed digital transmission up to 4.95 Gbps. Its molded construction uses foil and braid shielding to provide EMI/RFI protection, while the connectors feature gold-plated contacts.
Digital DVI-D Single Link Connection
The P561-006 is designed for equipment with DVI-D Single Link interfaces. As a passive cable, it does not require an external power source or active signal conversion.
Shielded Molded Construction
The cable uses molded connectors with integral strain relief and foil/braid shielding. This construction is intended to help protect the digital video signal from electromagnetic and radio-frequency interference.
Key Features
- 6 ft (1.83 m) DVI-D Single Link cable
- DVI-D male-to-male connectors
- Supports resolutions up to 1920 x 1200
- High-speed digital transmission up to 4.95 Gbps
- Foil/braid shielding with molded connectors and gold-plated contacts
DC Supplies Product Note
The P561-006 is specifically a DVI-D Single Link cable, so it is important to match both connected devices to DVI-D Single Link interfaces when selecting this model.
Applications
- Computer-to-monitor connections
- Flat-panel DVI displays
- Digital CRT displays
- DVI-equipped projectors
- Office and workstation video connections
- Compatible digital signage and presentation equipment
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P561-006 |
| Product Type | DVI-D Single Link Digital Video Cable |
| Cable Length | 6 ft (1.83 m) |
| Connector 1 | DVI-D Single Link Male |
| Connector 2 | DVI-D Single Link Male |
| Signal Type | Digital TMDS |
| Cable Type | Passive |
| Maximum Resolution | 1920 x 1200 |
| Maximum Transmission Speed | 4.95 Gbps |
| Shielding | Foil and braid |
| Connector Construction | Molded with integral strain relief |
| Contact Plating | Gold |
| Cable Color | Black |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Technology | DVI |
| Warranty | Lifetime limited warranty |
| UPC | 037332120120 |
Frequently Asked Questions
What type of cable is the Eaton P561-006?
It is a passive DVI-D Single Link digital TMDS monitor cable with male connectors on both ends.
How long is the P561-006?
The cable is 6 ft (1.83 m) long.
What resolution does the P561-006 support?
Eaton specifies support for resolutions up to 1920 x 1200.
What connectors does the P561-006 use?
Both ends use DVI-D Single Link male connectors.
Is the P561-006 shielded?
Yes. The cable uses foil and braid shielding for EMI/RFI protection.
Does the P561-006 require external power?
No. It is a passive cable and does not require an external power source.
