Detailed Specifications

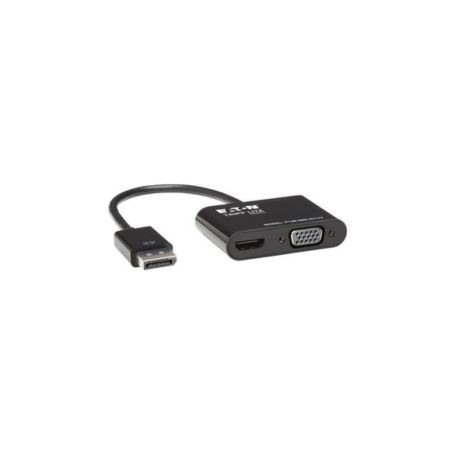

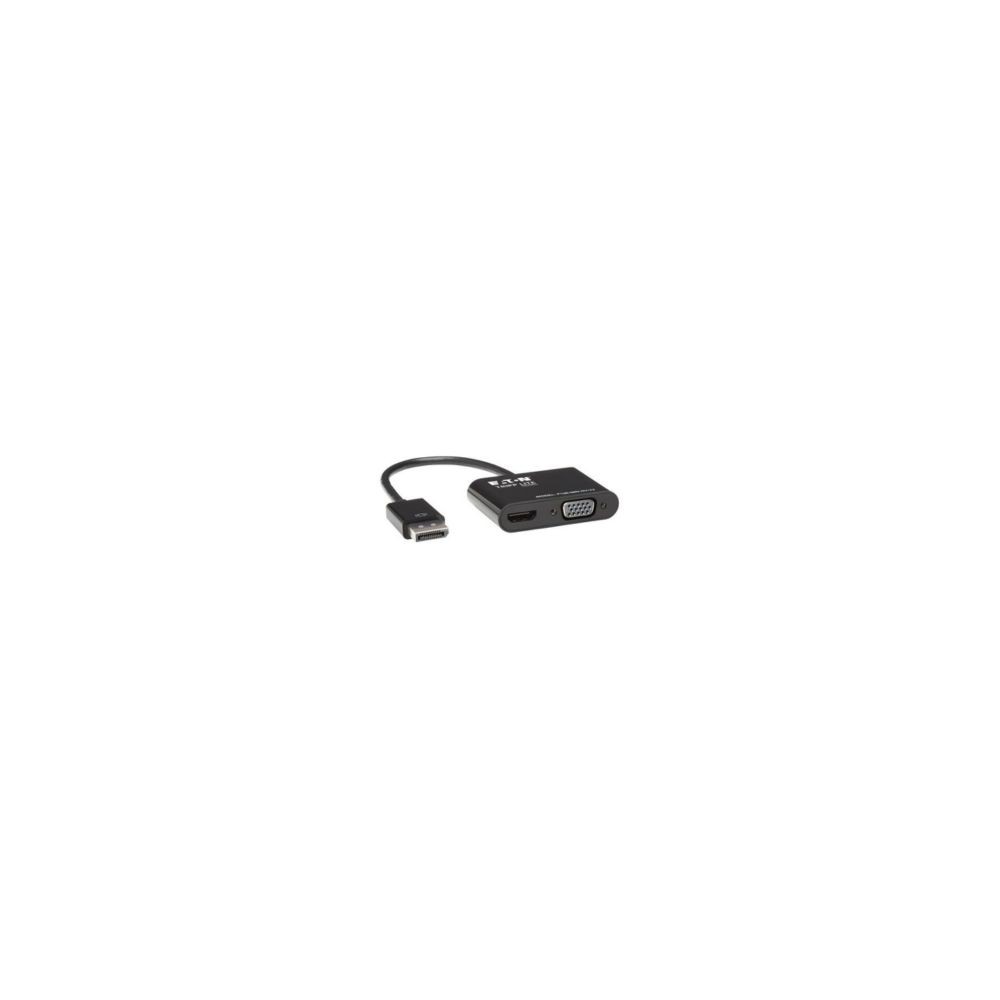

Eaton P136-06N-HV-V2 Tripp Lite DisplayPort to VGA/HDMI Converter Adapter
Overview
The Eaton P136-06N-HV-V2 is a Tripp Lite by Eaton DisplayPort 1.2 to VGA/HDMI All-in-One Converter Adapter designed to connect a DisplayPort-equipped laptop, tablet or computer to either a VGA or HDMI display. The adapter provides separate female HD15 and HDMI outputs in a compact pigtail design.
The HDMI output supports 3840 × 2160 (4K) at 24/30Hz, while the VGA output supports resolutions up to 1920 × 1200, including 1080p at 60Hz. It also supports up to 36-bit Deep Color (12 bits per channel).
The P136-06N-HV-V2 is a passive, plug-and-play adapter requiring no drivers, software or external power supply. Because it is passive, the connected DisplayPort source must support DP++ (DisplayPort Dual-Mode). Its integrated cable makes it suitable for portable use in classrooms, conference rooms, offices, trade shows and presentations.
Key Features
- Converts a DisplayPort 1.2 source to either VGA or HDMI
- Supports HDMI resolutions up to 3840 × 2160 (4K) at 24/30Hz
- Supports VGA resolutions up to 1920 × 1200, including 1080p at 60Hz
- Supports up to 36-bit Deep Color for compatible displays
- Passive plug-and-play design requires no external power, drivers or software
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite by Eaton |
| Model | P136-06N-HV-V2 |
| Product Type | DisplayPort to VGA/HDMI Converter Adapter |
| Adapter Type | Passive |
| DisplayPort Version | 1.2 |
| Input Connector | DisplayPort Male |
| Output Connector 1 | HD15 Female (VGA) |
| Output Connector 2 | HDMI Female |
| Maximum HDMI Resolution | 3840 × 2160 (4K) @ 24/30Hz |
| Maximum VGA Resolution | 1920 × 1200 @ 60Hz |
| Deep Color | Up to 36-bit (12 bits/channel) |
| HDCP | 1.4 |
| Cable Design | Pigtail / Built-In Cable |
| External Power | Not Required |
| Software/Drivers | Not Required |
| Required Source | DisplayPort with DP++ support |
| Housing Color | Black |
| Cable Jacket | VW-1 |
| Cable Jacket Material | PVC |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | 14° to 176°F (-10° to 80°C) |
| Operating Humidity | 10%-85% RH, Non-Condensing |
| Storage Humidity | 5%-90% RH, Non-Condensing |
| Warranty | 3-Year Limited Warranty |
