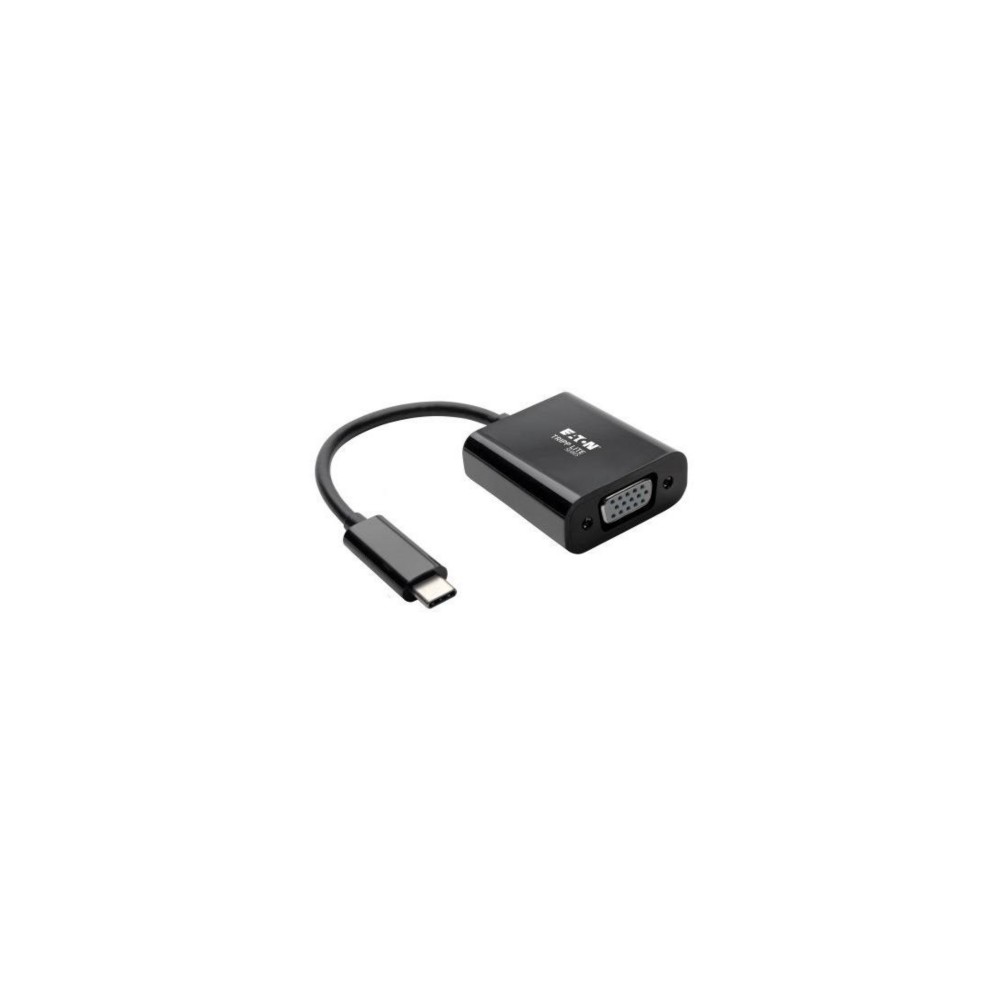

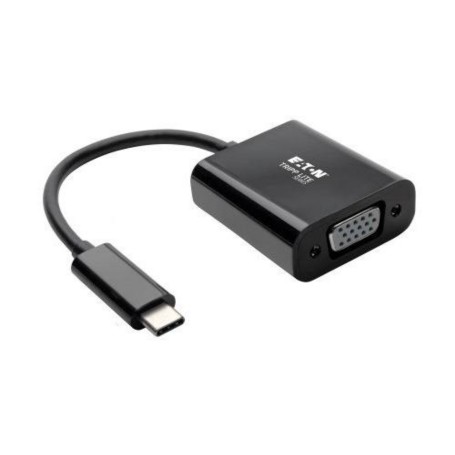

Eaton U444-06N-VB-AM USB-C to VGA Adapter Compatible Tripp Lite
Overview :
The Eaton U444-06N-VB-AM is a USB-C to VGA adapter with a USB-C male input and HD15/VGA female output. Eaton is the manufacturer/brand, while Tripp Lite is the compatible brand. Eaton's catalog specifies USB 3.0 operation at up to 5 Gbps and video output up to 1920 × 1200 (1080p) at 60 Hz.
The adapter uses a short 6 in (15.24 cm) pigtail design and supports USB-C DisplayPort Alternate Mode for connecting compatible USB-C computers to VGA displays. It is bus-powered and requires no external power adapter.
Key Features :
- USB-C to VGA video adapter
- USB-C male to HD15/VGA female
- 6 in (15.24 cm) pigtail
- Supports resolutions up to 1920 × 1200 at 60 Hz
- Supports 1080p at 60 Hz
- USB 3.0 / USB 3.1 Gen 1 interface
- Up to 5 Gbps USB data rate
- DisplayPort Alternate Mode support
- Bus-powered operation
- Black finish
- Plug-and-play design
- Suitable for connecting USB-C computers to VGA monitors and projectors
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | U444-06N-VB-AM |
| Product Type | USB-C to VGA Adapter |
| Input Connector | USB-C Male |
| Output Connector | HD15 / VGA Female |
| Cable Length | 6 in (15.24 cm) |
| USB Standard | USB 3.0 / USB 3.1 Gen 1 |
| Maximum Data Rate | 5 Gbps |
| Maximum Resolution | 1920 × 1200 @ 60 Hz |
| 1080p Support | Yes |
| Video Technology | DisplayPort Alternate Mode |
| Power | Bus Powered |
| Adapter Type | Pigtail |
| Housing Color | Black |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Operating Humidity | 10-85% RH, non-condensing |
| Storage Humidity | 5-90% RH, non-condensing |
| Compliance | RoHS, CE, FCC, REACH |
| Country of Origin | Vietnam |
