Detailed Specifications

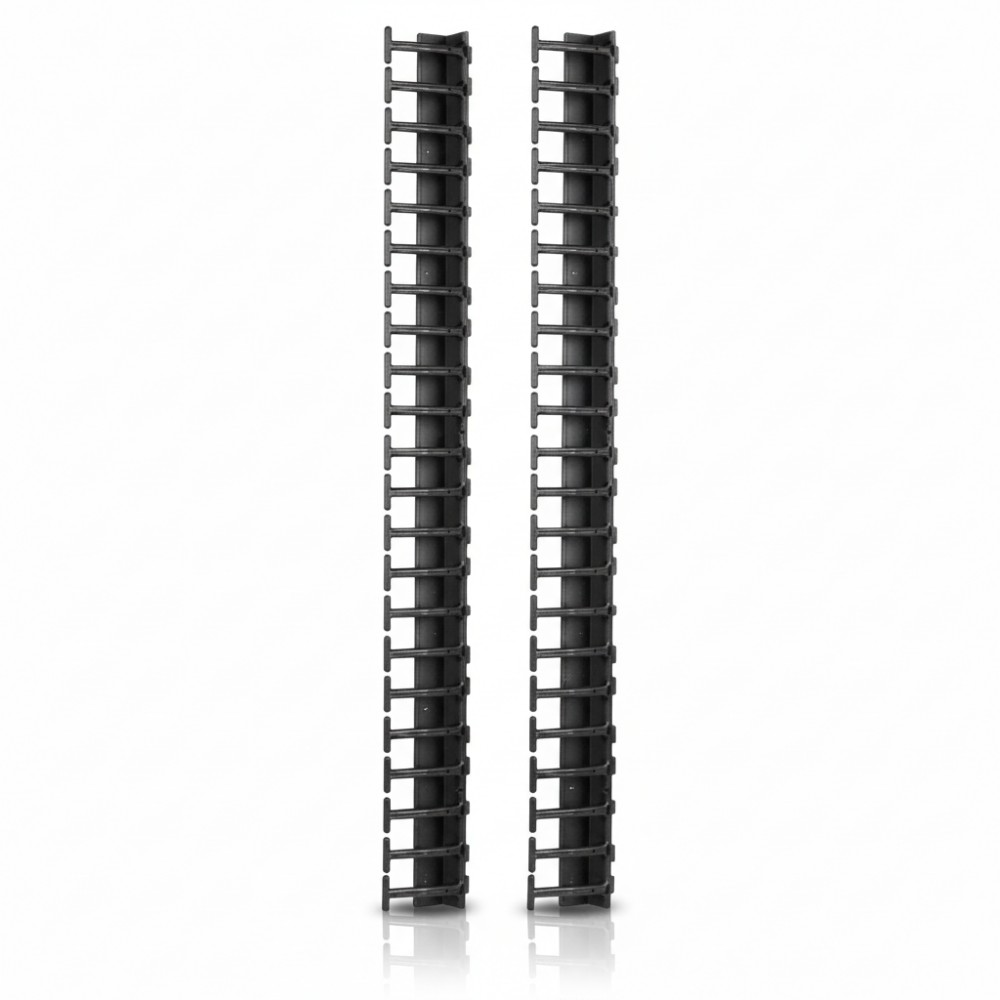

APC AR7723 - 48U Vertical Cable Manager for NetShelter SX
Overview@ :
The APC AR7723 is a high-capacity vertical cable management accessory designed for APC NetShelter SX 600 mm wide 48U enclosures. It provides structured routing for power and data cables, reducing cable congestion and mechanical stress in high-density racks.
This unit features a zero-U vertical mounting design, allowing installation without consuming rack space. It uses high-capacity cable fingers to support dense cable bundles while maintaining rigidity and minimizing deflection during cable routing.
It is deployed in enterprise data centers and network racks where airflow management and cable organization directly impact performance and serviceability. The product is supplied as a set of two vertical organizers, enabling full-height cable management on both sides of the rack.
This model is specifically designed for APC NetShelter SX 600 mm enclosures and should not be used in racks without compatible side mounting provisions or different width profiles.
Key Features :
Zero-U vertical mounting preserves rack capacity
High-density cable fingers for structured routing
Full 48U height coverage for large cable bundles
Rigid design reduces cable strain and deflection
Supplied as dual-panel set for complete coverage
Technical Specifications :
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AR7723 |
| Product Type | Vertical Cable Manager |
| Rack Height | 48U |
| Rack Compatibility | NetShelter SX 600 mm wide enclosures |
| Mounting Type | 0U vertical mount |
| Quantity | Set of 2 cable managers |
| Dimensions | 107 × 2045 × 45 mm |
| Depth | 1.77 in (45 mm) |
| Material | Metal with plastic cable fingers |
| Color | Black |
| Installation | Side channel mounting |
| Compliance | TAA compliant |
