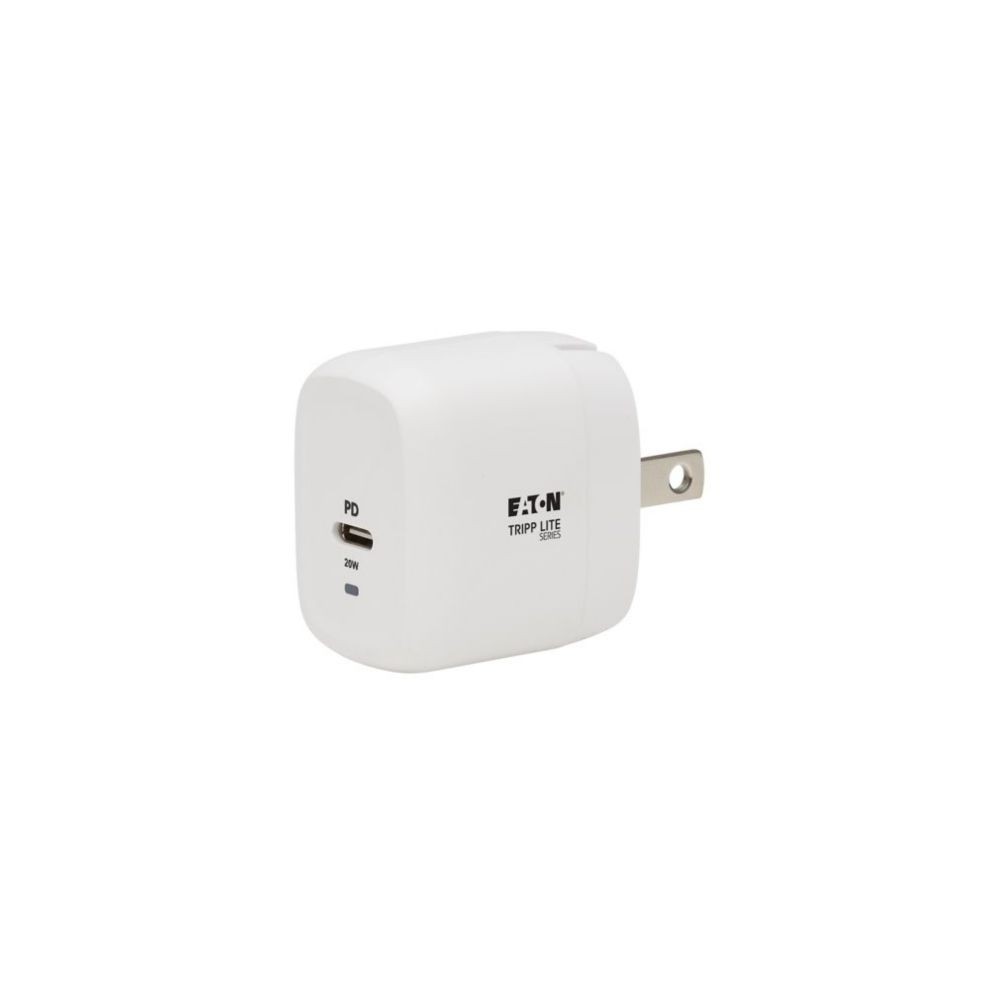

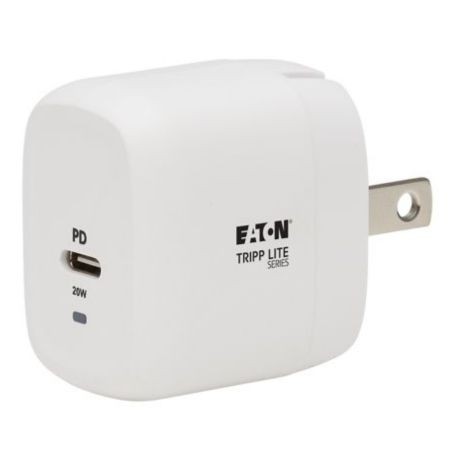

Eaton U280-W01-20C1-G Tripp Lite Compact 1Port USB C Wall Charger GaN Technology
The Eaton U280-W01-20C1-G Tripp Lite USB-C wall charger provides up to 20W of charging power through a single USB-C port. It supports USB Power Delivery 3.0 and accepts 100–240V AC input, making it suitable for charging compatible smartphones, tablets, e-readers, laptops, and other USB-C mobile devices.
20W USB-C Power Delivery 3.0
The USB-C output supports 5V/3A for up to 15W and 9V/2.22A for up to 20W. The charger uses USB Power Delivery 3.0 to provide the appropriate supported charging profile to a connected compatible device.
Compact GaN Design
The U280-W01-20C1-G uses gallium nitride (GaN) technology in a compact direct-plug design. Eaton specifies a volume of less than 2.5 cubic inches, making the charger suitable for travel bags, laptop bags, and other portable charging setups.
Folding AC Plug
The NEMA 1-15P plug folds into the charger when not in use. The folding design helps protect the plug and reduces the chance of the prongs catching on other items when the charger is carried.
Universal AC Input
The charger accepts 100–240V AC input at 50/60 Hz. It connects directly to compatible NEMA 1-15R, 5-15R, and 5-15/20R AC outlets.
Protection Features
The charger provides overcurrent, overload, overvoltage, overheating, overcharging, and short-circuit protection. A blue LED indicates power status.
Key Features
- 20W maximum USB-C output
- USB Power Delivery 3.0 support
- Gallium nitride (GaN) technology
- Folding NEMA 1-15P AC plug
- 100–240V AC input
DC Supplies Product Note
The folding NEMA plug is particularly useful for portable charging because the prongs retract into the charger body when stored. This keeps the charger more compact when carried with a phone, tablet, or laptop.
Typical Applications
- Smartphone charging
- Tablet charging
- E-reader charging
- Compatible USB-C laptop charging
- Travel and mobile charging
- Replacement USB-C wall charger applications
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U280-W01-20C1-G |
| Product Type | USB-C Wall Charger |
| Charging Technology | GaN |
| Number of Charging Ports | 1 |
| Output Connector | USB-C Female |
| Maximum Output Power | 20W |
| USB Power Delivery | PD 3.0 |
| 5V Output | 3A / 15W |
| 9V Output | 2.22A / 20W |
| Maximum Output Current | 3A |
| Input Voltage | 100–240V AC |
| Input Current | 1.0A maximum |
| Input Frequency | 50/60 Hz |
| Input Plug | NEMA 1-15P, non-polarized, folding |
| Charging Form Factor | Direct Plug-In |
| LED Indicator | Blue Power LED |
| Overcurrent Protection | Yes |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Overheating Protection | Yes |
| Overcharging Protection | Yes |
| Short-Circuit Protection | Yes |
| Material | PC Plastic |
| Color | White |
| Dimensions | 1.36 × 1.09 × 1.56 in |
| Weight | 0.001 lb |
| Operating Temperature | 32°F to 77°F (0°C to 25°C) |
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
| Operating Humidity | 20–90% RH, non-condensing |
| Storage Humidity | 5–95% RH, non-condensing |
| Compliance | RoHS, FCC, REACH, WEEE |
| Certifications | UL Listed, NOM |
| Warranty | 2-year limited warranty |
| UPC | 037332259899 |
Package Contents
- 1 × Eaton U280-W01-20C1-G USB-C Wall Charger with PD Charging
Frequently Asked Questions
What is the maximum output of the U280-W01-20C1-G?
The charger provides up to 20W through its single USB-C port.
Does the U280-W01-20C1-G support USB Power Delivery?
Yes. It supports USB Power Delivery 3.0 with 5V/3A and 9V/2.22A output profiles.
Does it have a folding plug?
Yes. The NEMA 1-15P plug folds into the charger body for storage and transport.
What AC voltage does the charger support?
The charger accepts 100–240V AC input at 50/60 Hz.
How many USB-C ports does it have?
The U280-W01-20C1-G has one USB-C female charging port.
Is a USB-C cable included?
No. The manufacturer package contents list the U280-W01-20C1-G charger only. A compatible USB-C charging cable is required to connect the charger to the device.
