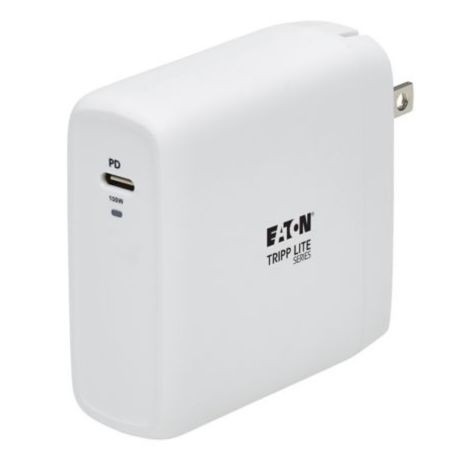

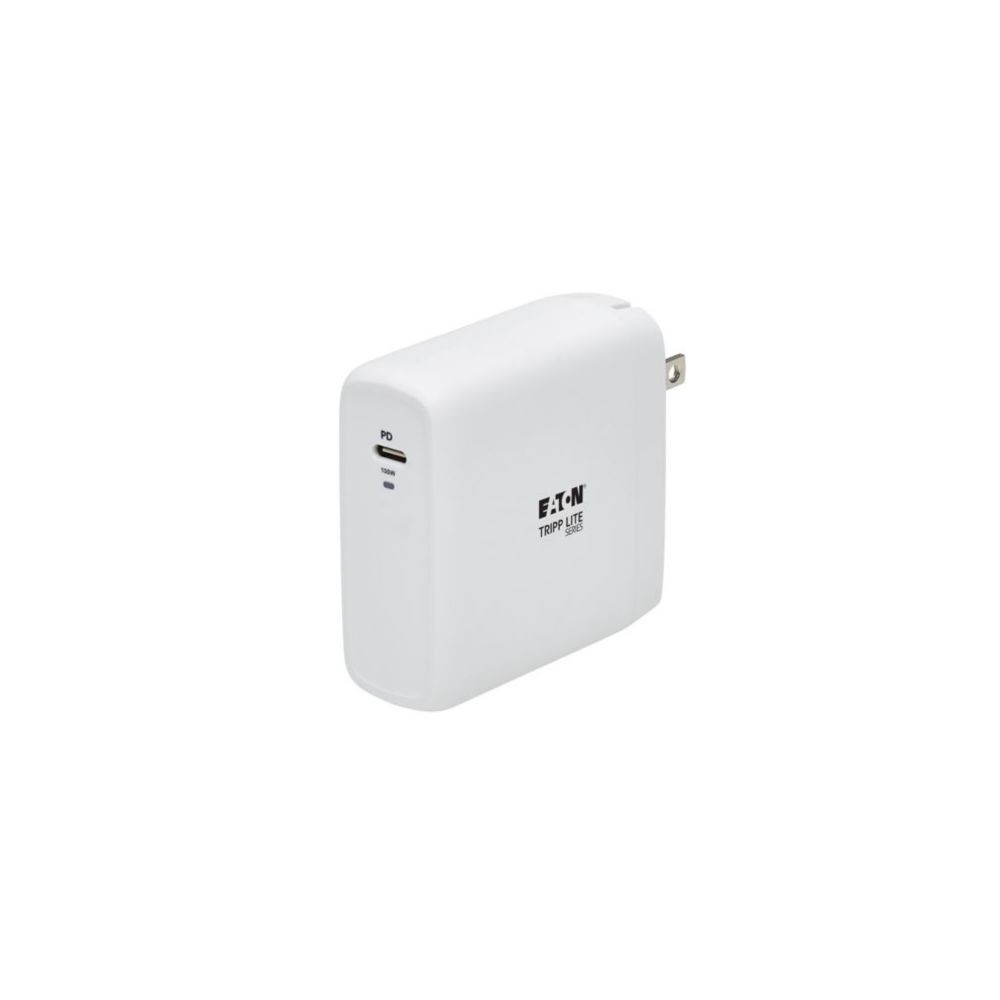

Eaton U280-W01-100C1G Tripp Lite Compact 1 Port USB C Wall Charger GaN Technology 100W PD3 0 Charging White
The Eaton U280-W01-100C1G Tripp Lite USB-C wall charger provides up to 100W of power through a single USB-C port. Its compact GaN design supports USB Power Delivery 3.0 and accepts 100–240V AC input, making it suitable for charging USB-C laptops, tablets, smartphones, Chromebooks, e-readers, and other compatible devices.
100W USB-C Power Delivery 3.0
The USB-C output supports USB Power Delivery 3.0 charging at 5V/3A, 9V/3A, 15V/3A, and 20V/5A, with a maximum output of 100W. The single-port design provides the full available charging capacity to one connected device.
Compact GaN Wall Charger
Gallium nitride (GaN) technology is used in the charger design to support high-efficiency power conversion in a compact form factor. The direct plug-in design connects to compatible NEMA AC outlets without requiring a separate power cable between the charger and wall outlet.
Broad AC Input Compatibility
The U280-W01-100C1G supports AC input voltages from 100V through 240V and operates at 50/60 Hz. Its NEMA 1-15P non-polarized plug is intended for compatible AC outlets, including NEMA 1-15R, 5-15R, and 5-15/20R configurations specified by Eaton.
Protection and Device Compatibility
The charger includes overcurrent, overload, and overvoltage protection. Eaton lists smartphones, laptops, tablets, Chromebooks, and e-readers among compatible device types when the connected device supports USB-C charging.
Key Features
- 100W maximum USB-C output
- USB Power Delivery 3.0 support
- Gallium nitride (GaN) charging technology
- Single USB-C female charging port
- 100–240V AC input for worldwide voltage compatibility
DC Supplies Product Note
Because this is a single-port 100W charger, the available charging capacity is dedicated to one connected USB-C device. This makes the U280-W01-100C1G particularly relevant when a laptop or other higher-power USB-C device needs more charging capacity than a standard phone-oriented USB charger.
Typical Applications
- USB-C laptop charging
- Chromebook charging
- Tablet and smartphone charging
- USB-C e-reader charging
- Travel and mobile charging setups
- Replacement USB-C wall charger applications
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U280-W01-100C1G |
| Product Type | USB-C Wall Charger |
| Charging Technology | GaN |
| Number of Charging Ports | 1 |
| Output Connector | USB-C Female |
| Maximum Output Power | 100W |
| USB Power Delivery | PD 3.0 |
| 5V Output | 3A / 15W |
| 9V Output | 3A / 27W |
| 15V Output | 3A / 45W |
| 20V Output | 5A / 100W |
| Maximum Output Current | 5A |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60 Hz |
| Maximum Input Current | 1.5A |
| Input Plug | NEMA 1-15P, non-polarized |
| Form Factor | Direct Plug-In |
| LED Indicator | Blue Power LED |
| Overcurrent Protection | Yes |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Material | PC Plastic |
| Color | White |
| Operating Temperature | 32°F to 77°F (0°C to 25°C) |
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
| Operating Humidity | 20–90% RH, non-condensing |
| Storage Humidity | 5–90% RH, non-condensing |
| Dimensions | 2.66 × 2.76 × 1.16 in |
| Weight | 0.49 lb |
| Compliance | RoHS, WEEE, FCC, REACH |
| Certifications | UL Listed, NOM |
| Warranty | 2-year limited warranty |
| UPC | 037332259653 |
Package Contents
- 1 × Eaton U280-W01-100C1G USB-C Wall Charger with PD Charging
Frequently Asked Questions
What is the maximum output of the U280-W01-100C1G?
The charger provides up to 100W through its single USB-C port.
Does the U280-W01-100C1G support USB Power Delivery?
Yes. It supports USB Power Delivery 3.0 with output profiles up to 20V/5A.
What devices can this charger power?
It is designed for compatible USB-C devices including laptops, Chromebooks, tablets, smartphones, and e-readers.
Does the charger support 100–240V AC input?
Yes. Eaton specifies input voltage compatibility from 100V through 240V AC at 50/60 Hz.
How many USB-C ports does it have?
The U280-W01-100C1G has one USB-C female charging port.
Is a USB-C charging cable included?
No USB-C charging cable is listed in the manufacturer package contents. A compatible USB-C cable is required to connect the charger to the device.
