Detailed Specifications
Overview

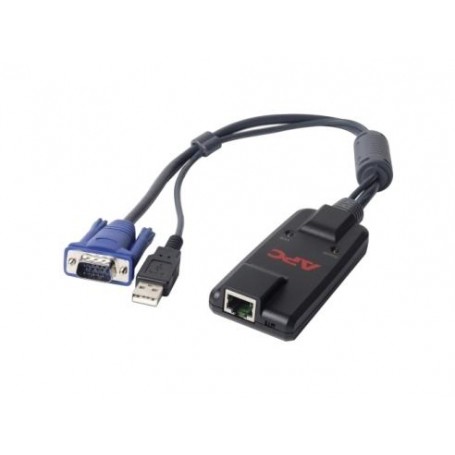

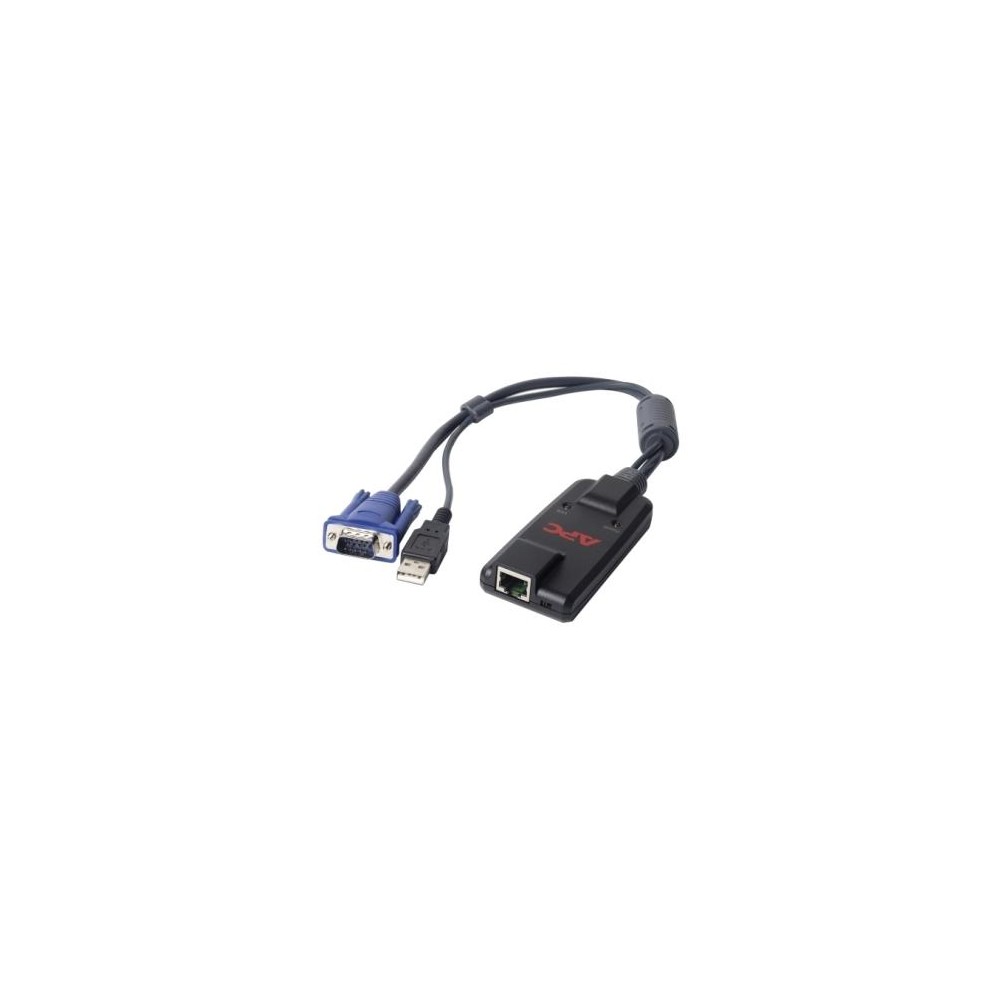

The APC KVM-USB KVM 2G Server Module is an interface accessory for compatible APC KVM switches. It connects a server's USB keyboard and mouse interface and VGA video output to a compatible KVM switch, allowing operators to manage connected servers from a shared keyboard, monitor and mouse console.
Key Features
- Designed for compatible APC KVM 2G switches.
- Supports USB keyboard and mouse connections.
- Provides a VGA video interface through an HD-15 connector.
- Connects to the KVM switch through an RJ-45-style interface.
- Compact black module for server-management environments.
- TAA-compliant according to supplier specifications.
Technical Specifications
| Brand | APC by Schneider Electric |
|---|
| Part Number / MPN | KVM-USB |
|---|
| Product Type | KVM 2G USB server module |
|---|
| First-End Connectors | HD-15 male and USB Type-A male |
|---|
| Second-End Connector | RJ-45 female |
|---|
| Color | Black |
|---|
| Conductor | Copper |
|---|
| Compatible KVM Switches | KVM0216A, KVM0116A, KVM0108A, KVM2132P, KVM2116P and KVM1116P |
|---|
| TAA Compliant | Yes, per supplier listing |
|---|
| RoHS | Compliant, per supplier listing |
|---|
| Country of Origin | Taiwan |
|---|
| Warranty | Supplier-listed limited warranty: 2 years |
|---|
Applications
- Server access in data centers and server rooms.
- Centralized management of multiple servers through a compatible KVM switch.
- IT administration, maintenance and troubleshooting.
Compatibility and Installation
Connect the HD-15 and USB Type-A ends to the supported server interfaces and the RJ-45-style connector to a compatible APC KVM switch port. Confirm the switch model and the required cable/module type before purchase; this module is not a standalone KVM switch.
Frequently Asked Questions
1. What is the APC KVM-USB?
It is a KVM 2G USB server module used with compatible APC KVM switches.
2. Is it a complete KVM switch?
No. It is a server-side interface module used with a compatible KVM switch.
3. Which connectors does it use?
It has an HD-15 male connector and a USB Type-A male connector at one end, plus an RJ-45 female connector at the other.
4. Which APC KVM switches are compatible?
Supplier listings identify models including KVM0216A, KVM0116A, KVM0108A, KVM2132P, KVM2116P and KVM1116P. Verify your exact model before ordering.
5. Does it support USB keyboard and mouse control?
Yes. It provides the USB interface for keyboard and mouse signals in a compatible KVM setup.
6. Is it suitable for rack server environments?
Yes. It is intended for server management through supported APC KVM switches.
DC Supplies Product Note
DC Supplies recommends verifying the KVM switch model and server connector requirements before ordering. Compatibility and warranty coverage should be confirmed for the exact item supplied.
