Overview

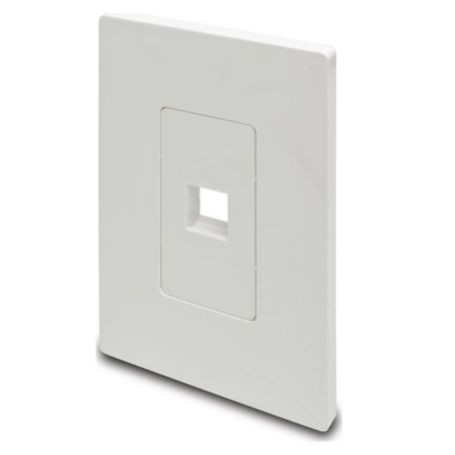

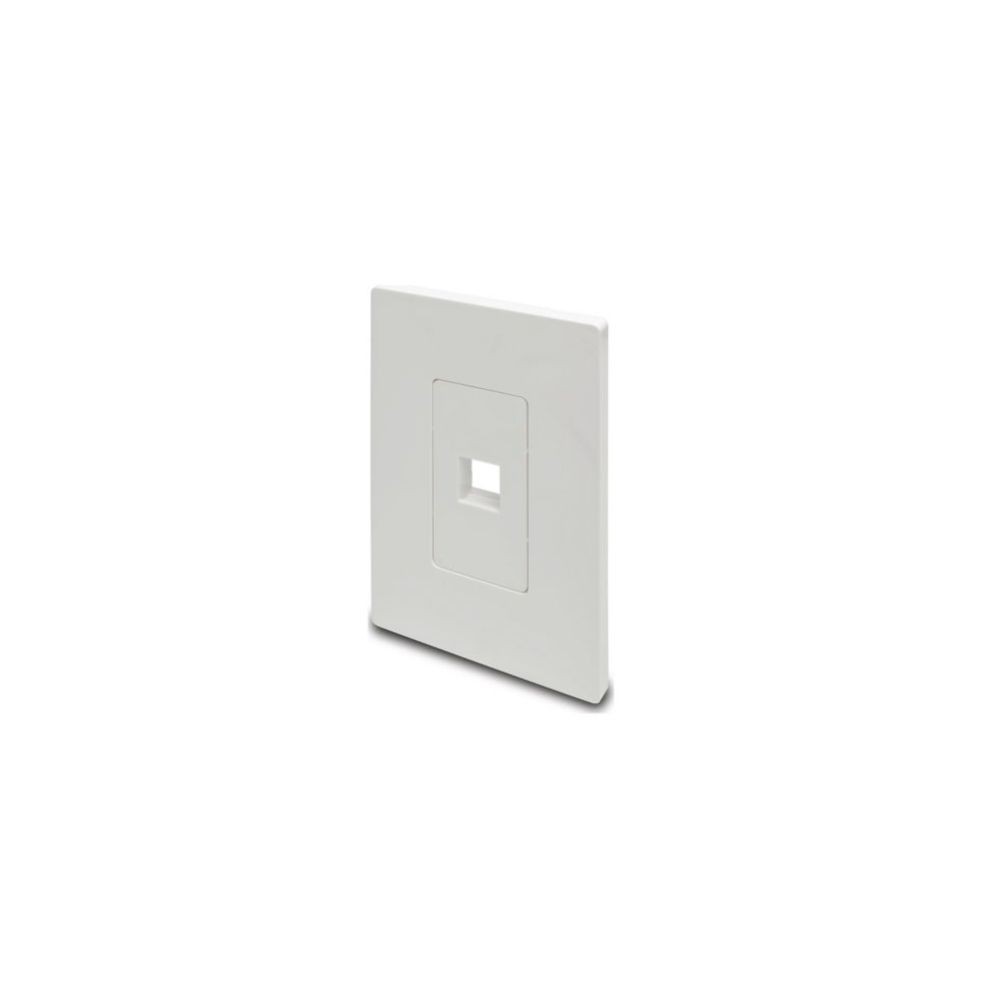

The Eaton Tripp Lite N080-101 is a 1-port single-gang universal keystone wallplate for terminating audio/video, voice, or Ethernet connections at the wall. Its universal keystone opening accepts compatible modular inserts for a range of connectivity applications.
Technical Information
The wallplate is constructed from high-impact polycarbonate and provides one straight keystone jack cutout. It is designed to fit mid-sized or standard single-gang electrical boxes and includes mounting screws for installation.
Compatibility
- Compatible with standard and mid-sized single-gang boxes
- Accepts compatible keystone jacks and modular inserts
- Supports keystone applications for Cat5e, Cat6, and Cat6a
- Supports compatible USB, HDMI, DisplayPort, RCA, voice, Ethernet, and audio/video keystone modules
Key Features
- Single-port universal keystone opening
- High-impact polycarbonate construction
- Fits standard and mid-sized single-gang boxes
- White finish for conventional wall installations
- TAA compliant
Applications
The N080-101 can be used for structured cabling and multimedia wall installations where a single modular keystone connection is required. The universal opening allows the installed connection type to be selected separately from the wallplate.
DC Supplies Product Note
The wallplate does not contain a fixed connector; the single opening is designed for a compatible keystone jack or insert. This allows the same faceplate design to be used for different connection types.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N080-101 |
| Product Type | Keystone Wallplate / Faceplate |
| Style | Single-gang |
| Number of Ports | 1 |
| Keystone Opening | 1 universal keystone jack cutout |
| Material | High-impact polycarbonate |
| Color | White |
| Compatible Technologies | Cat5e, Cat6, Cat6a, USB 2.0, HDBaseT, HDMI, DisplayPort, RCA |
| Mounting | Single-gang box |
| Product Dimensions | 4.9 x 3.2 x 0.4 in. |
| Product Weight | 0.09 lb. |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS |
| UPC | 037332195531 |
| Warranty | Limited lifetime warranty |
Package Contents
N080-101 1-Port Single-Gang Universal Keystone Wallplate, White
Mounting hardware
FAQs
How many connections does the N080-101 support?
The wallplate has one universal keystone opening for a compatible modular insert.
What type of keystone modules can be used?
The manufacturer lists compatibility with keystone applications including Cat5e, Cat6, Cat6a, USB 2.0, HDBaseT, HDMI, DisplayPort, and RCA.
What material is the wallplate made from?
It is made from high-impact polycarbonate.
Does the wallplate include mounting hardware?
Yes. Mounting hardware is included.
Is the N080-101 TAA compliant?
Yes. Eaton specifies TAA compliance for this model.
