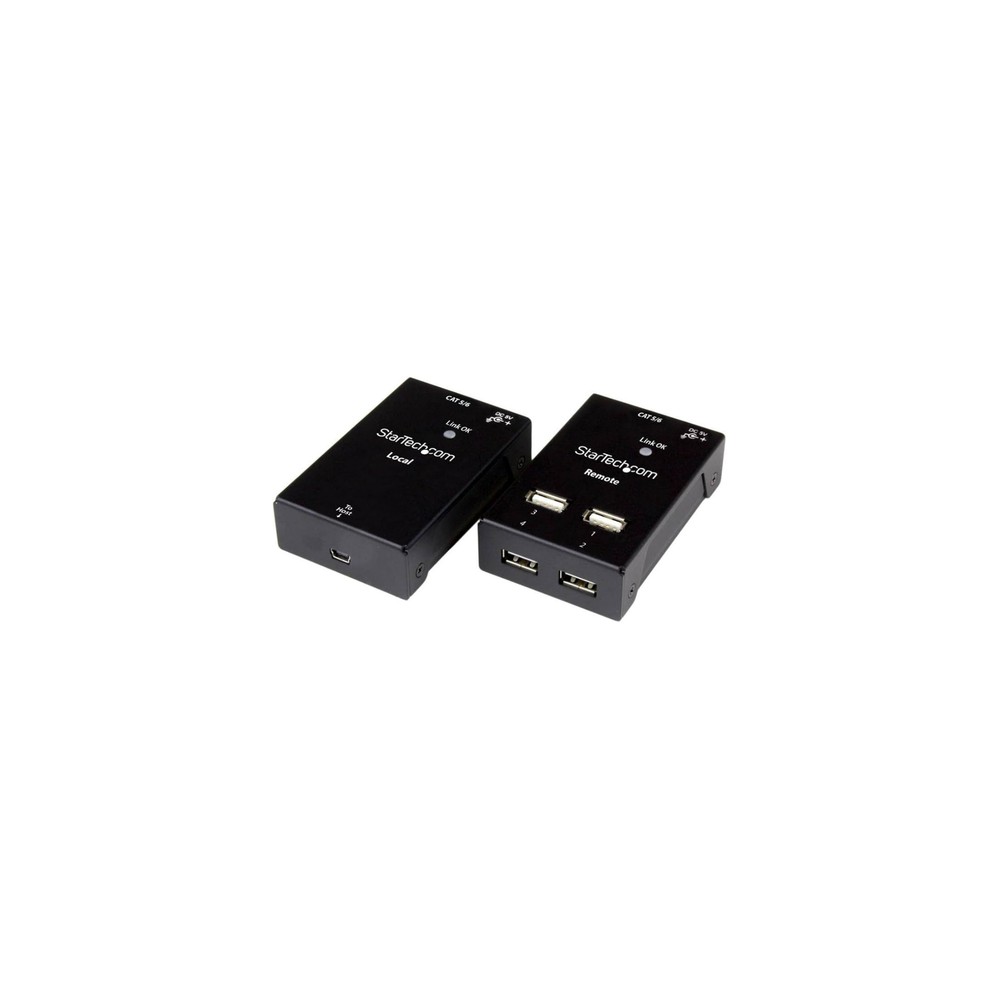

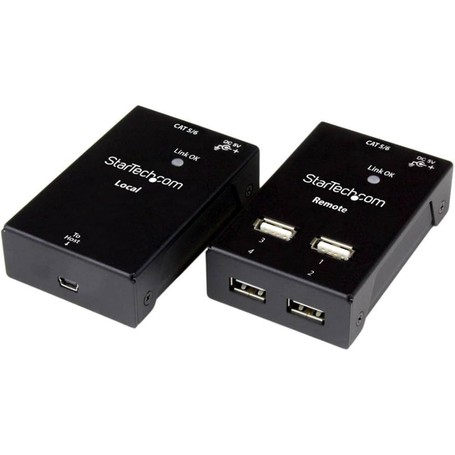

The StarTech USB2004EXTV is a professional-grade USB extender kit designed to bypass the 16-foot cable limitation of standard USB 2.0. By utilizing standard Cat5e or Cat6 copper cabling, this system allows IT engineers to extend four USB devices up to 330 feet (100 meters) from the host computer. It is an essential tool for environments where the host PC must be secured in a server room or rack, while the peripherals remain accessible to the user.
This system features a four-port hub at the receiver end, supporting data transfer rates up to 480 Mbps. It provides a dedicated 500mA of power per port, ensuring stable operation for high-power peripherals like webcams, external hard drives, and industrial touchscreens. The plug-and-play architecture requires no additional drivers, making it compatible with Windows, macOS, and Linux systems immediately upon deployment.
Designed for durability in commercial and industrial settings, the unit features a rugged metal housing and includes mounting brackets for secure installation on walls or desks. The kit includes both the local (transmitter) and remote (receiver) units, along with a universal power adapter for the remote end. It is ideal for digital signage, surveillance systems, and remote workstation configurations where long-distance USB connectivity is a mechanical necessity.
Extends four USB 2.0 devices up to 330ft via Cat5e/Cat6 cable.
Provides 480 Mbps throughput for high-speed data peripherals.
Delivers 500mA of power per port for stable device operation.
Rugged metal enclosure with mounting brackets for industrial use.
Driverless setup ensures compatibility with all major operating systems.
| Technical | Specifications |
| Brand | StarTech |
| Part Number | USB2004EXTV |
| Product Type | USB Extender |
| Range | 100 m (330 ft) |
| Max Data Transfer Rate | 480 Mbps |
| Connectivity | 4x USB Type-A (Remote), 1x USB Type-B (Local) |
| Cabling Type | Cat5e/Cat6 or better |
| Power Output | 500mA per port |
| Power Source | AC Adapter Included (Remote Unit) |
| Housing Material | Aluminum/Steel |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Mounting | Wall-mount / Surface-mount Brackets |
| Standards | USB 2.0, USB 1.1 |
