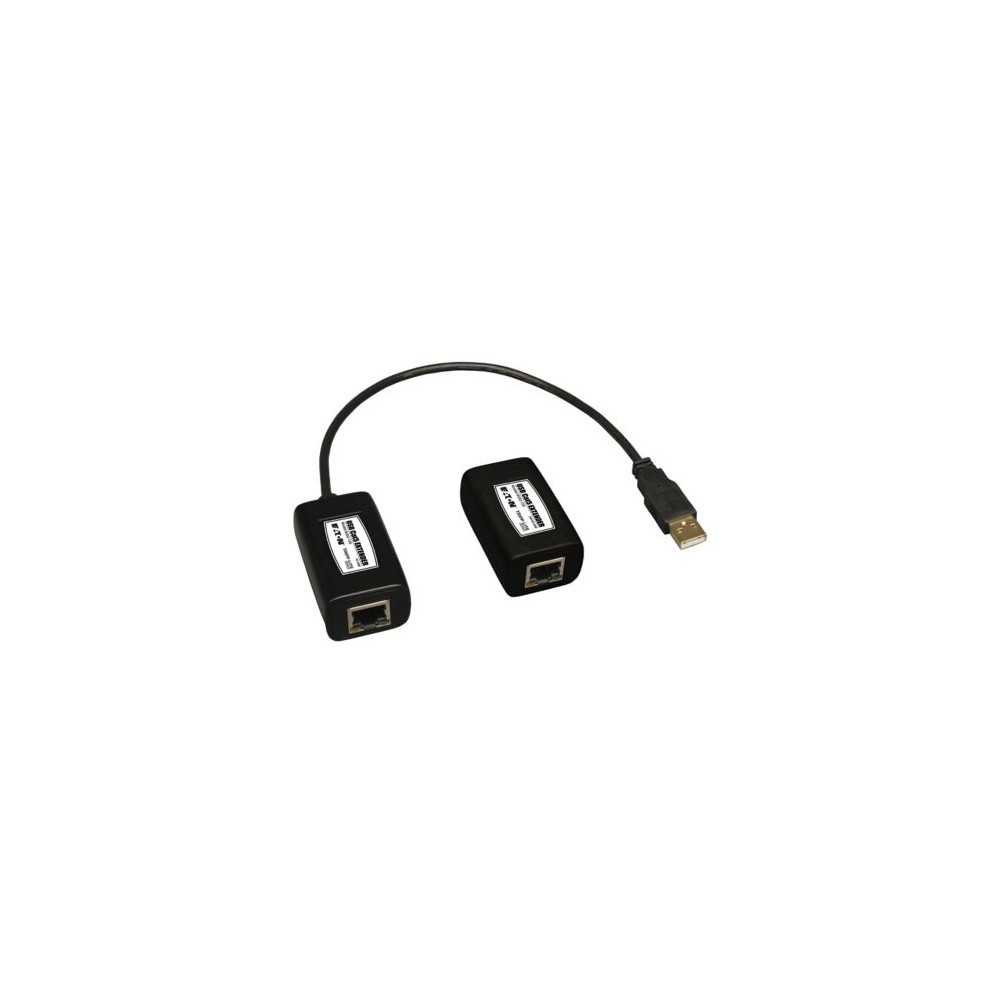

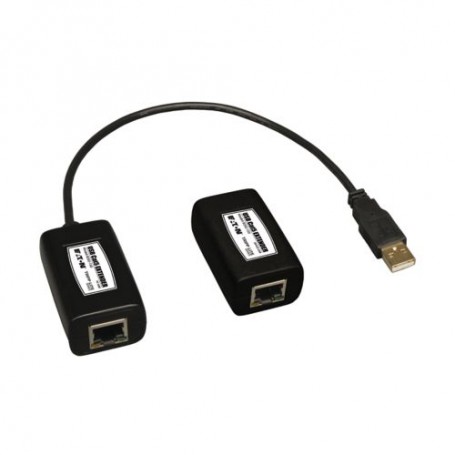

The Eaton Tripp Lite B202-150 is a 1-port USB over Cat5/Cat6 extender kit that connects a computer to a USB 1.1 peripheral located up to 150 ft. (45.72 m) away. The kit uses a local transmitter and remote receiver connected through user-supplied Cat5, Cat5e, or Cat6 cabling.
USB Extension Over Network Cabling
The B202-150 carries a USB 1.1 connection over readily available twisted-pair network cable. It supports transfer rates from 1.5 Mbps to 12 Mbps and is designed for extending USB peripherals beyond the normal direct USB cable distance.
Bus-Powered Operation
The extender is bus-powered and does not require an external AC power supply. Power is provided from the host computer through the USB connection to the local transmitter and then to the remote unit.
Connection and Installation
The local unit connects to the host computer through its USB-A male connector. The local and remote units connect through their RJ45 female ports using a user-supplied Cat5, Cat5e, or Cat6 cable. The remote unit provides a USB-A female connection for the USB peripheral.
Compatibility and Limitations
The B202-150 is a USB 1.1 extender and supports USB peripherals compatible with that standard. The required Cat5/Cat5e/Cat6 interconnect cable is not included. The extender is passive and does not provide Power over Cable or an external power adapter.
Key Features
- Extends one USB 1.1 connection up to 150 ft. (45.72 m)
- Uses standard Cat5, Cat5e, or Cat6 cable between the units
- Bus-powered with no external AC power supply required
- USB-A male host connection and USB-A female peripheral connection
- TAA compliant for applicable GSA Schedule purchases
Applications
- Extending USB peripherals away from a computer
- Conference room USB device installations
- Lecture hall peripheral connections
- Remote printer and scanner connections
- Webcam and other USB 1.1 peripheral installations
DC Supplies Product Note
The B202-150 does not include the Cat5/Cat5e/Cat6 cable used between the transmitter and receiver. Select a suitable network cable separately based on the required installation length.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | B202-150 |
| Product Type | USB over Cat5/Cat6 extender |
| Number of Ports | 1 |
| USB Standard | USB 1.1 |
| Maximum Extension Distance | 150 ft. (45.72 m) |
| Transfer Rate | 1.5 Mbps to 12 Mbps |
| Host Connector | USB-A male |
| Remote Peripheral Connector | USB-A female |
| Interconnect Connectors | RJ45 female |
| Interconnect Cable | Cat5/Cat5e/Cat6 |
| Interconnect Cable Included | No |
| Power Source | USB bus-powered |
| External Power Supply | Not required |
| Power Over Cable | No |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 20% to 90% |
| Color | Black |
| TAA Compliance | Yes |
| UPC | 037332157454 |
| Warranty | 1-year limited |
Frequently Asked Questions
What is the maximum distance supported by the B202-150?
The B202-150 extends a USB 1.1 connection up to 150 ft. (45.72 m) between the host computer and USB peripheral.
What cable is used between the transmitter and receiver?
The units connect using a user-supplied Cat5, Cat5e, or Cat6 cable through their RJ45 female ports.
Does the B202-150 require an external power adapter?
No. The extender is bus-powered through the USB connection and does not require an external power supply.
What USB version does this extender support?
The B202-150 supports USB 1.1 with transfer rates from 1.5 Mbps to 12 Mbps.
Is the Cat5/Cat6 cable included?
No. The network cable connecting the local and remote units is supplied separately.
What comes with the B202-150?
The kit includes the local transmitter unit, remote receiver unit, and owner’s manual.
