Detailed Specifications
Overview

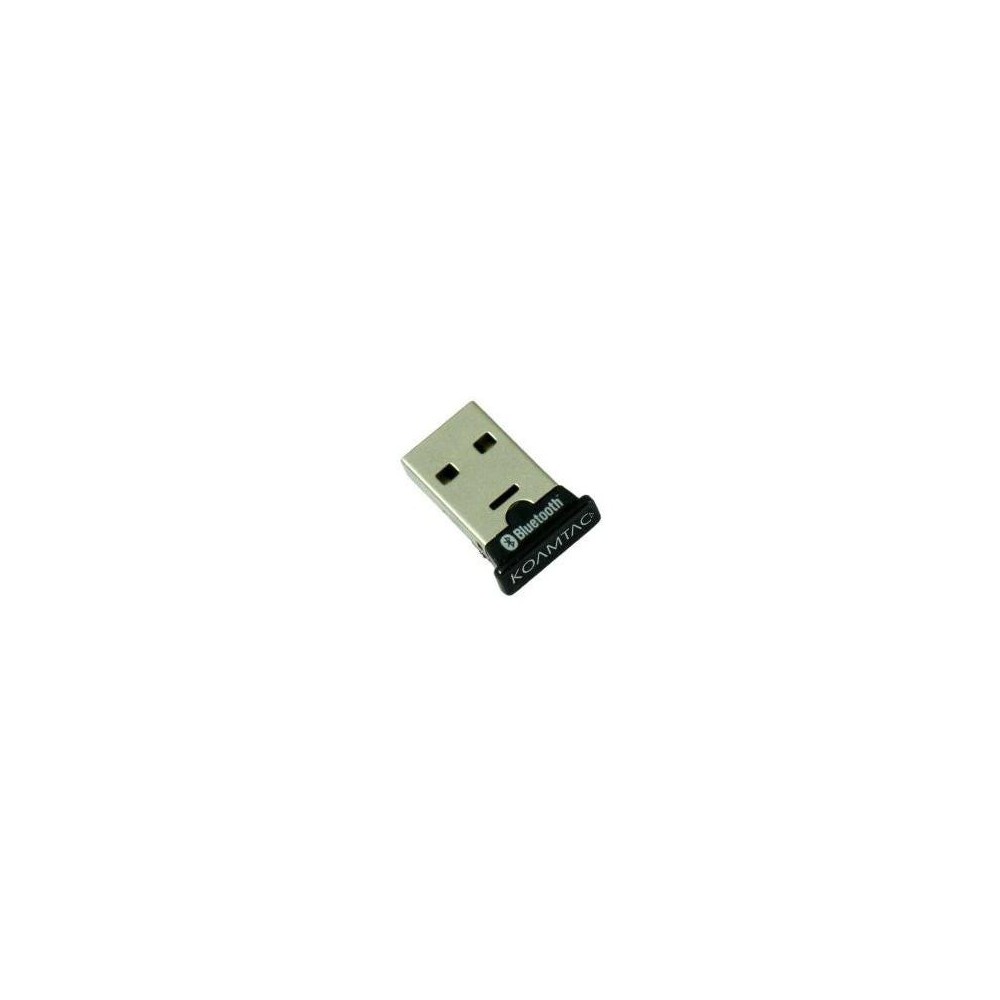

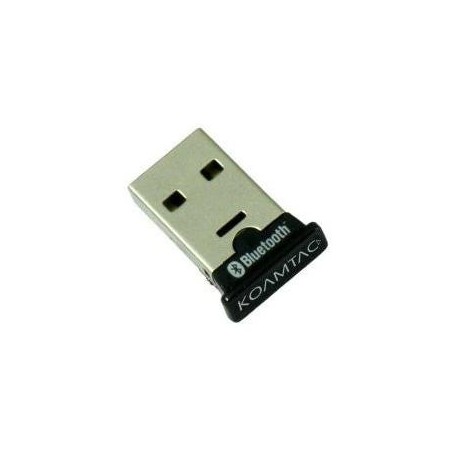

The KOAMTAC 300150 is the KBLED50 Bluetooth Low Energy 5.0 USB Dongle for KDC scanners. It provides a direct Bluetooth Low Energy connection between a compatible KDC device and a PC through a USB interface.
Connectivity and Operation
The KBLED50 uses Bluetooth Low Energy 5.0 and operates through a USB 2.0 interface. It supports Microsoft Windows USB HID driver operation for HID mode and the KOAMTAC Windows driver for USB2Serial mode.
Deployment
The dongle is designed for KDC barcode-scanner deployments where a PC requires a compatible Bluetooth Low Energy interface. Its internal chip antenna and compact USB form factor allow it to be connected directly to a computer's USB port.
Key Features
- Bluetooth Low Energy 5.0 wireless connectivity
- USB 2.0 HID interface
- Supports HID and USB2Serial operating modes
- Internal chip antenna
- Designed for use with KOAMTAC KDC scanners
DC Supplies Product Note
For deployments using the 300150, verify that the host PC and KDC scanner configuration supports the KBLED50 Bluetooth Low Energy connection and the intended HID or USB2Serial operating mode.
Specifications
| Brand | KOAMTAC, Inc. |
|---|
| Part Number / MPN | 300150 |
|---|
| Model | KBLED50 |
|---|
| Product Type | Bluetooth Low Energy USB Dongle |
|---|
| Bluetooth Standard | Bluetooth Low Energy 5.0 |
|---|
| Radio Frequency | 2.4 GHz |
|---|
| Interface | USB 2.0 |
|---|
| Interface Mode | HID |
|---|
| Serial Operation | USB2Serial via KOAMTAC Windows driver |
|---|
| Antenna | Internal chip antenna |
|---|
| Transfer Rate | Up to 2.0 Mbps |
|---|
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
|---|
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
|---|
| Humidity | 5% to 95%, non-condensing |
|---|
| Compliance | KC, FCC, R&TTE, TELEC, RoHS |
|---|
| Dimensions | 0.87 × 0.59 × 0.21 in (22 × 15 × 5.35 mm) |
|---|
| Weight | 0.07 oz (2.0 g) |
|---|
FAQs
What is the KOAMTAC 300150?
The 300150 is the KBLED50 Bluetooth Low Energy 5.0 USB Dongle designed to connect compatible KOAMTAC KDC scanners to a PC.
What Bluetooth version does the KBLED50 use?
The KBLED50 uses Bluetooth Low Energy 5.0.
What USB interface does the 300150 use?
The dongle uses a USB 2.0 interface and supports HID operation.
What operating modes are supported?
The KBLED50 supports Microsoft Windows USB HID driver operation and USB2Serial operation through the KOAMTAC Windows driver.
What is included with the 300150?
KOAMTAC identifies the KBLED50 Bluetooth Low Energy 5.0 USB Dongle as the package content for this product.
